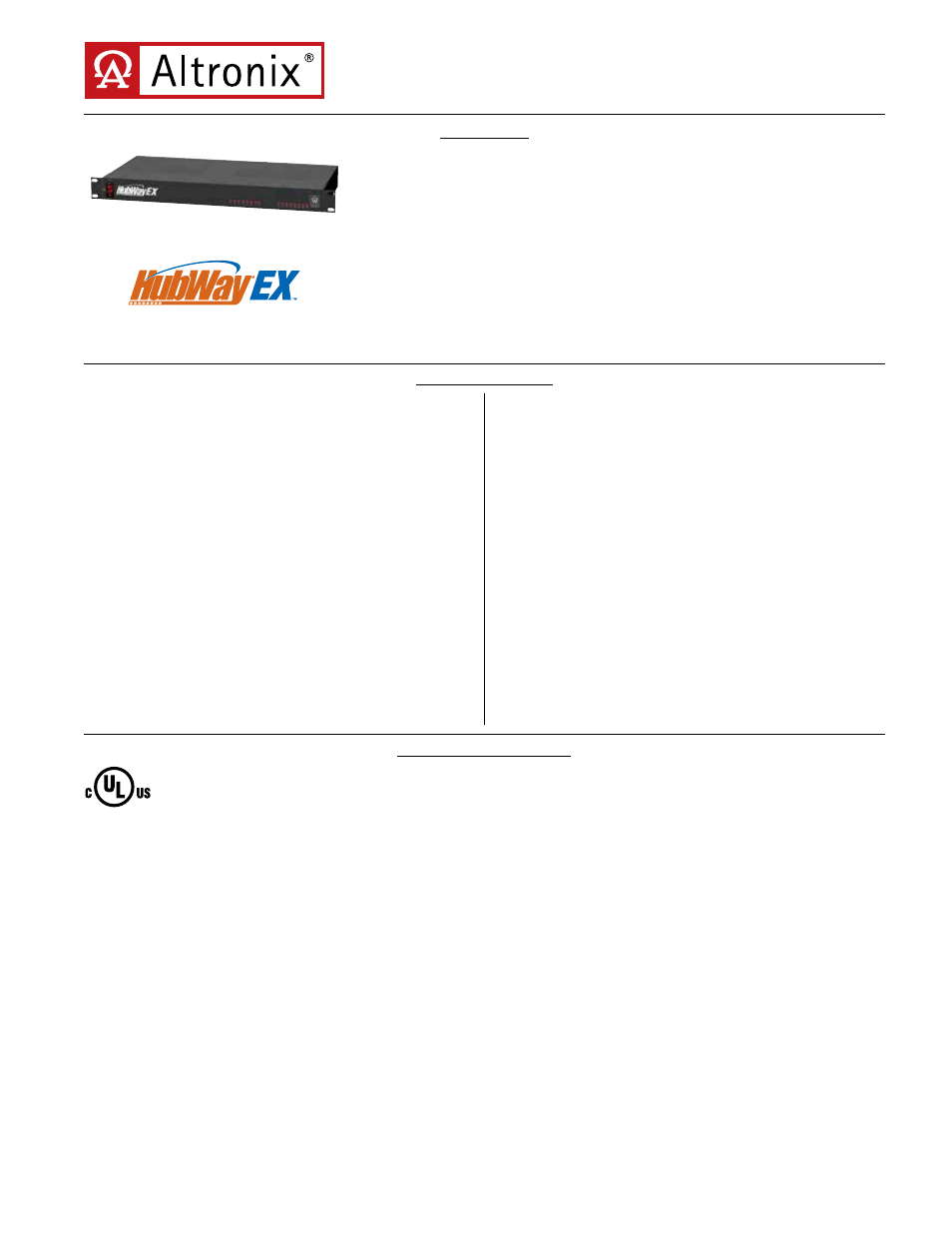

Hubwayex16 - active utp transceiver hub

HubWayEX16 Active UTP Transceiver Hub employs automatic gain control
(AGC) to transmit UTP video, RS422/RS485 data over a single CAT-5 or
higher structured cable. Unit provides 16 camera channels in a space saving
1U EIA 19” rack mount chassis which may be rack, wall or shelf mounted.
Video transmission range is up to one mile max. per channel. Units are com-
patible with fixed or PTZ cameras. Each grouped camera channel provides
video transmission for up to four (4) cameras over a single CAT-5 or higher
structured cable. This permits the installation of up to sixteen (16) cameras at
remote locations over four (4) CAT-5 or higher structured cables.
HubWayEX16 - Active UTP Transceiver Hub
Rev. DSHubWayEX16_10262012
Overview
Specifications
UL Listed for Commercial CCTV Equipment (UL 2044).
Agency Approvals
Input:
• 115VAC 60Hz, 0.4 amp or 230VAC 50Hz, 0.2 amp.
Video:
• Sixteen (16) channels of video over twisted pair
up to a distance of 5000 ft. (1524m) per channel.
• Sixteen (16) 75 ohm video outputs.
Data:
• RS422/RS485 data inputs.
Electrical:
• Operating temperature: 0º C to 49º C ambient.
• Total system power consumption: 40 W.
• 15 BTU/Hr.
• System AC input VA requirement: 40VA.
Features:
• Picture and Gain control.
• Automatic correction for reverse video polarity.
• Sixteen (16) video signal LEDs.
Features (cont’d):
• Illuminated master power disconnect circuit breaker
with manual reset.
• IEC 320 - 3-wire grounded line cord (detachable).
Accessories:
• Optional HubSat4D/Di or HubWayEXP allows
transmission of up to four (4) video signals over
a single CAT-5 or higher structured cable.
Mechanical:
• Units can be rack, wall or shelf mounted.
• Modular 1U standard EIA 19” rack mount chassis.
• Enclosure Dimensions (H x W x D approx.):
1.625” (41.275mm) x 19.125” (486mm)
x 8.5” (216mm)
• Product weight (approx.): 8.7 lbs. (3.95 kg).
• Shipping weight (approx.): 10.0 lbs. (4.54 kg).
HubWayEX16
