Overview
Input:
• 115VAC 50/60 Hz, 1 amp.
Output:
• 16VAC/100VA (6.25 amp) supply current.
Electrical:
• Operating temperature: --- 20º C to 49º C ambient.
Electrical (cont’d):
• 51.18 BTU/Hr.
• System AC input VA requirement: 115VA.
Mechanical:
• Product weight (approx.): 2.2 lbs. (1.0 kg).
• Shipping weight (approx.): 3 lbs. (1.36 kg).
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com
T16100
Open Frame Transformer
Rev. DST16100_11212012

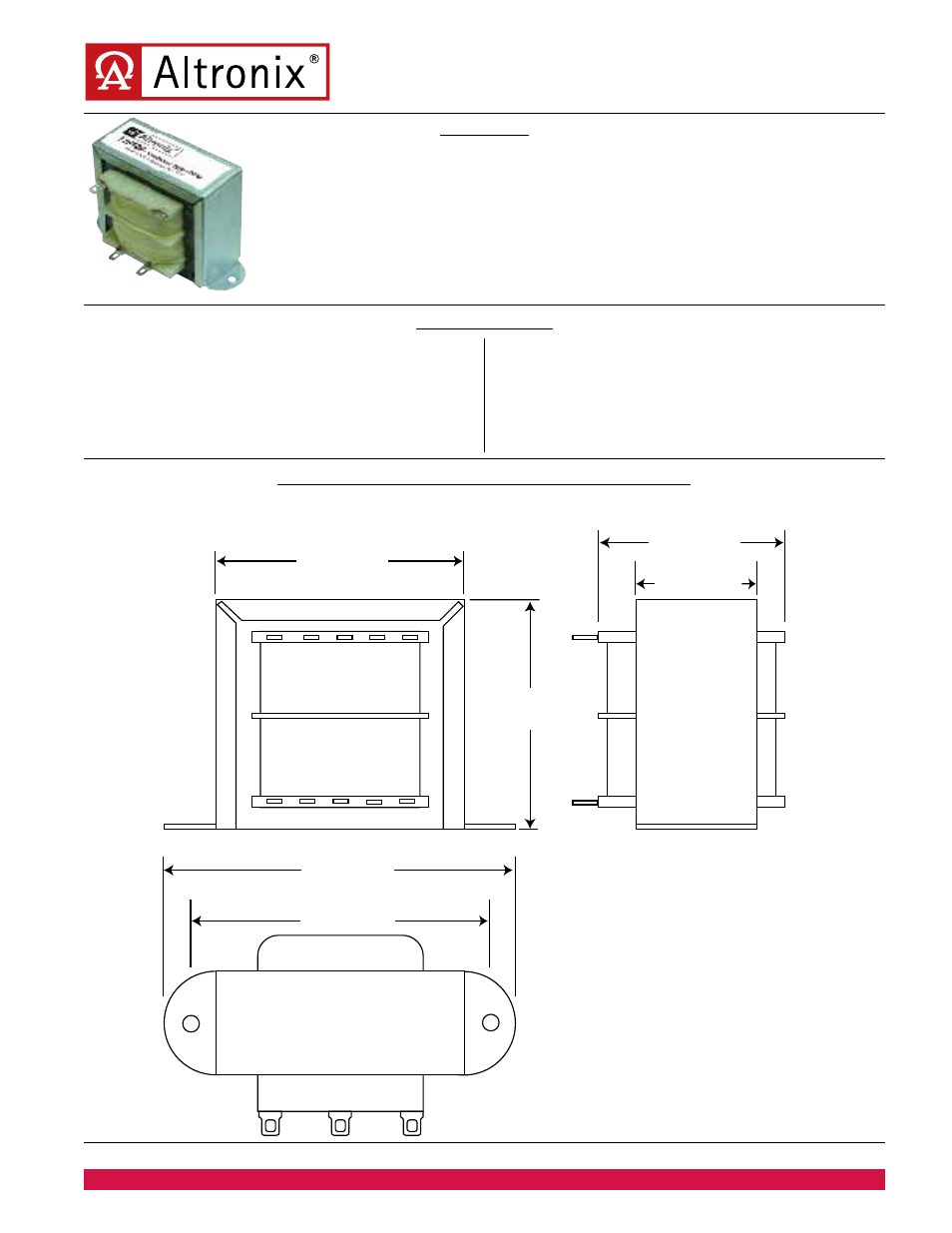

Specifications
Transformer Dimensions (H x W x D) (approximate) :
2.56” (65.02mm) x 3.06” (77.72mm) x 1.31” (33.27mm)
T16100
10 9 8 7 6
PRIMARY TERMINALS
SECONDARY TERMINALS
5 4 3 2 1
3.06”
(77.72mm)
2.56”
(65.02mm)
2.25”
(57.15mm)
1.31”
(33.27mm)
4.00”
(101.6mm)
3.625”
(92.07mm)
T16100 open frame transformer provides power for electronic power supplies and
equipment including security, access control and surveillance devices.
