Altronix HubWay EX1 Installation Instructions - Manual (Page 2)

- 2 - HubWayEX1 Active Unit
Video output
to head end
equipment
(DVR).
Spring terminal block
for RS422/RS485 input
from head end equipment
(DVR) for PTZ control.
CAT-5 or higher structured
cable to Video/Balun Combiner
at camera.
Video
UL Listed for Commercial CCTV Equipment
(UL 2044). CUL Listed - CSA Standard C22.2
No. 1-04, Audio, Video and Similar Equipment
AC/DC
Input Video Channel Data
HubWayEX1
Single Channel Active UTP Transceiver Hub
Input 16-24VAC, 1W
12-24VDC, 1W
Class 2 wiring to be used.
www.altronix.com
UL Listed
Class 2
power Supply
or Class 2
transformer

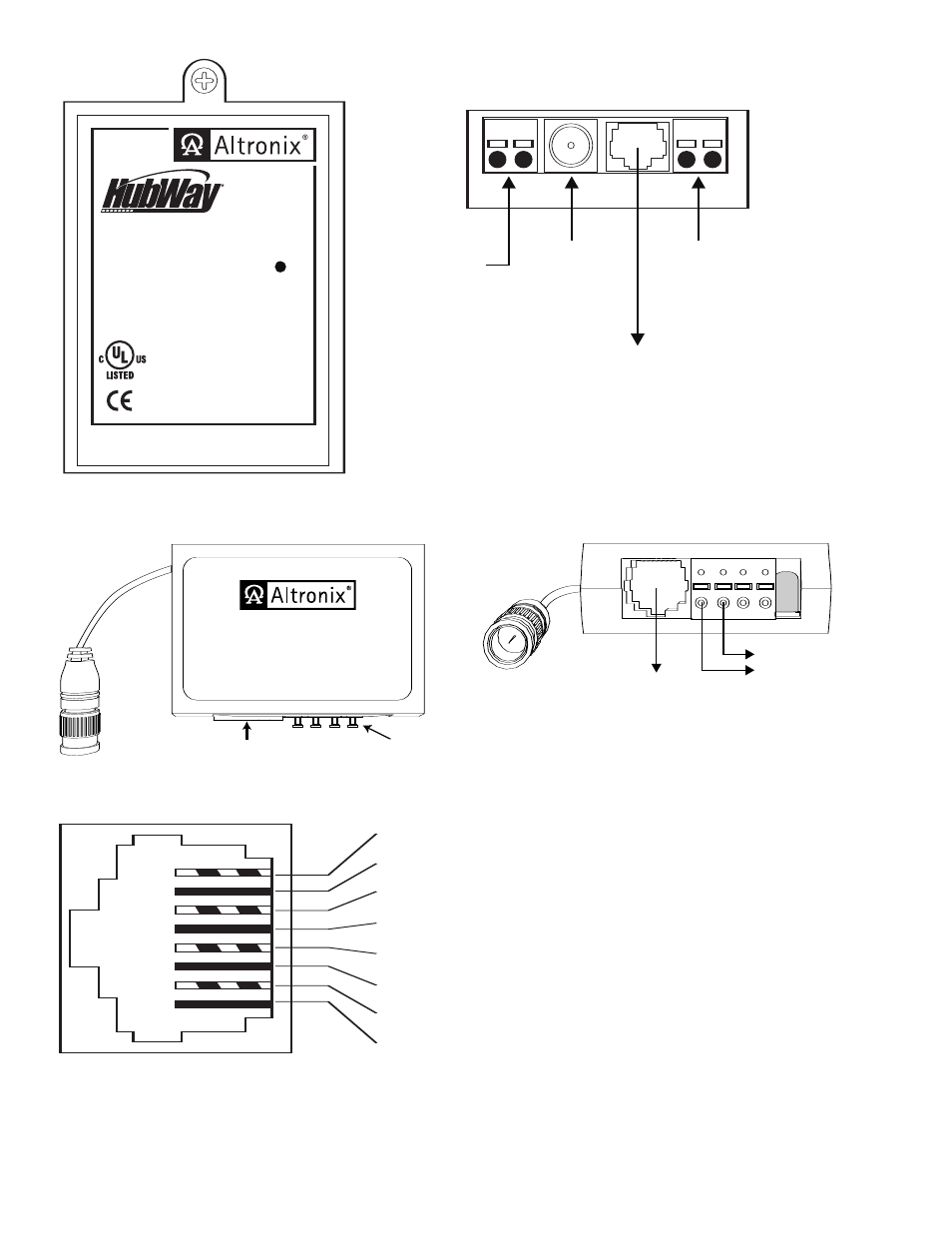

Fig. 1
VIDEO BALUN/COMBINER
CAT5 +DATA-- POWER
AC
VIDEO
HubWayAv
Data to
Camera --
+
Wire
Connectors RJ45 Jack
To BNC
Connector
of Camera
Structured
Cable from
HubWay1L
Fig. 2
Fig. 2a Fig. 2b
1 - White/Orange [VIDEO +]
2 - Orange [VIDEO -- ]
3 - White/Green [DATA +]
4 - Blue [N/A]
5 - White/Blue [N/A]
6 - Green [DATA -- ]
7 - White/Brown [N/A]
8 - Brown [N/A]
Fig. 3 - CAT-5 Structured Cable Wiring Color Codes and PIN Configurations
