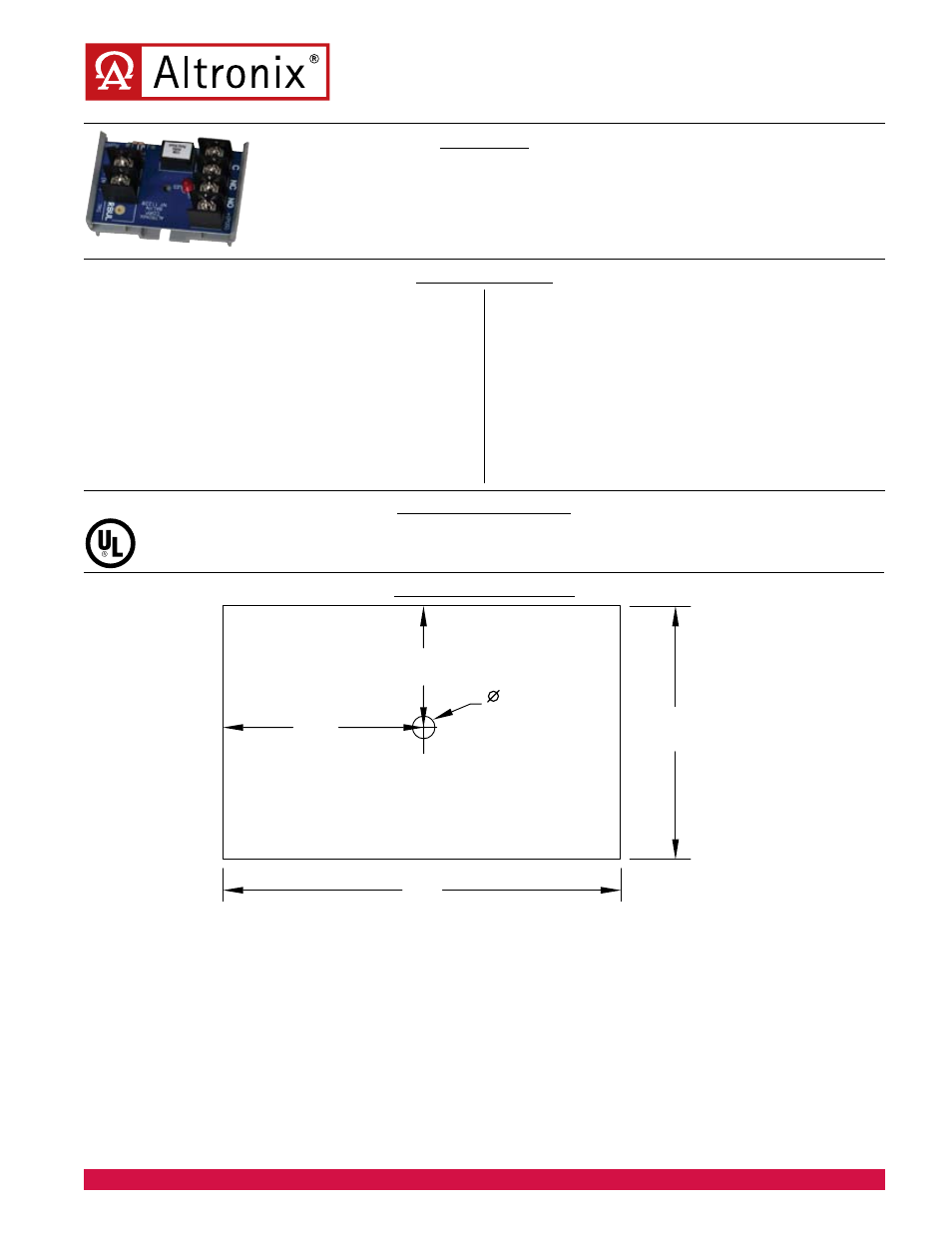

Altronix RBUL Data Sheet User Manual

Rbul relay module

background image

UL Listed Burglar Alarm System
Accessory (UL 365).

Agency Approvals

Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com

Input Voltage:

• 12VDC or 24VDC operation.
• Current draw: 30mA.

Contact Rating:

• 1 amp/28VDC SPDT contacts.

Electrical:

• Operating temperature: -- 25º C to 55º C ambient.
• System AC input VA requirement:
- 12VDC: 3.6VA.
- 24VDC: 7.2VA.

Mechanical:

• Snap track mountable (order part # ST1).
• Dimensions (L x W x H approx.):
2.8” (71.12mm) x 1.8” (45.72mm)
x 1” (25.4mm)
• Product weight (approx.): 0.48 lbs. (0.172 kg.).
• Shipping weight (approx.): 0.5 lbs. (0.181 kg.).

RBUL sensitive relay module is designed for continuous duty. This rugged, reliable and
dependable relay will handle any switching application.

RBUL

Relay Module

Rev. DSRBUL_01242012

Overview

Specifications

RBUL

Mounting Diagram

1.8”

(45.72mm)

2.8”

(71.12mm)

1.39”

(35.31mm)

0.84”

(21.34mm)

0.156”

(3.96mm)
