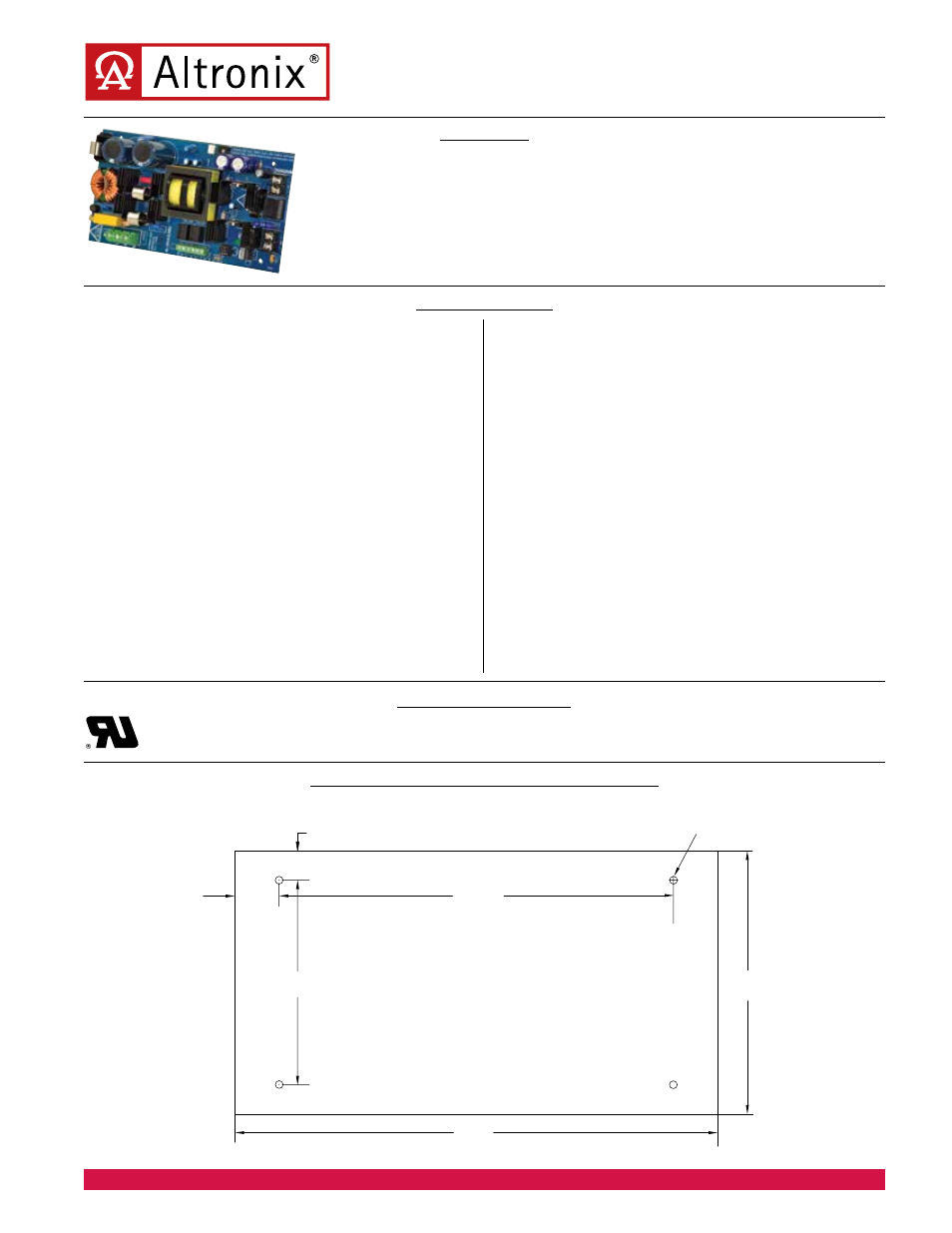

Altronix AL1024ULXB2 Data Sheet - Manual

Board Dimensions (L x W x H) (approximate) :
8.5” (215.9mm) x 4.5” (114.3mm) x 2” (50.8mm)
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com
Ø0.156”
(3.96mm)
3.7”
(93.98mm)
0.5”
(12.7mm)
6.7”
(170.18mm)
0.75”
(19.01mm)
4.5”
(114.3mm)
8.5”
(215.9mm)
UL Recognized component for Access Control System Units (UL 294)
Standard for Safety for Fire Protective Signaling Systems (UL 1481).
Agency Approvals
Specifications
AL1024ULXB2 is a UL Recognized power supply/charger that converts a 115VAC,
60Hz input into a single 24VDC non power-limited output.
AL1024ULXB2
UL Recognized Power Supply/Charger
Rev. DSAL1024ULXB2_03152013
Overview
AL1024ULXB2
Agency Listings:
• UL Recognized component for Access Control
System Units (UL 294), Power Supplies for
Fire Protective Signaling Systems (UL 1481).
Input:
• Input 115VAC / 60Hz, 4.2 amp.
Output:
• 24VDC output.
• 8 amp continuous supply current with 10 amp
supply current during alarm.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
• Maximum Ripple: 250mV P/P
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Maximum charge current 3.6 amp.
Battery Backup (cont’d):
• Automatic switch over to stand-by battery
when AC fails.
• Zero voltage drop when switched over to battery
backup.
Visual Indicators:
• AC input and DC output LED indicators.
Supervision:
• AC fail supervision (form “C” contacts).
• Low battery and battery presence supervision
(form “C” contacts).
Electrical:
• Operating temperature: 0º C to 49º C ambient.
• 98.27 BTU/Hr.
• System AC input VA requirement: 483VA.
Mechanical:
• Product weight (approx.): 1.15 lbs. (0.52 kg).
• Shipping weight (approx.): 1.45 lbs. (0.66 kg).
