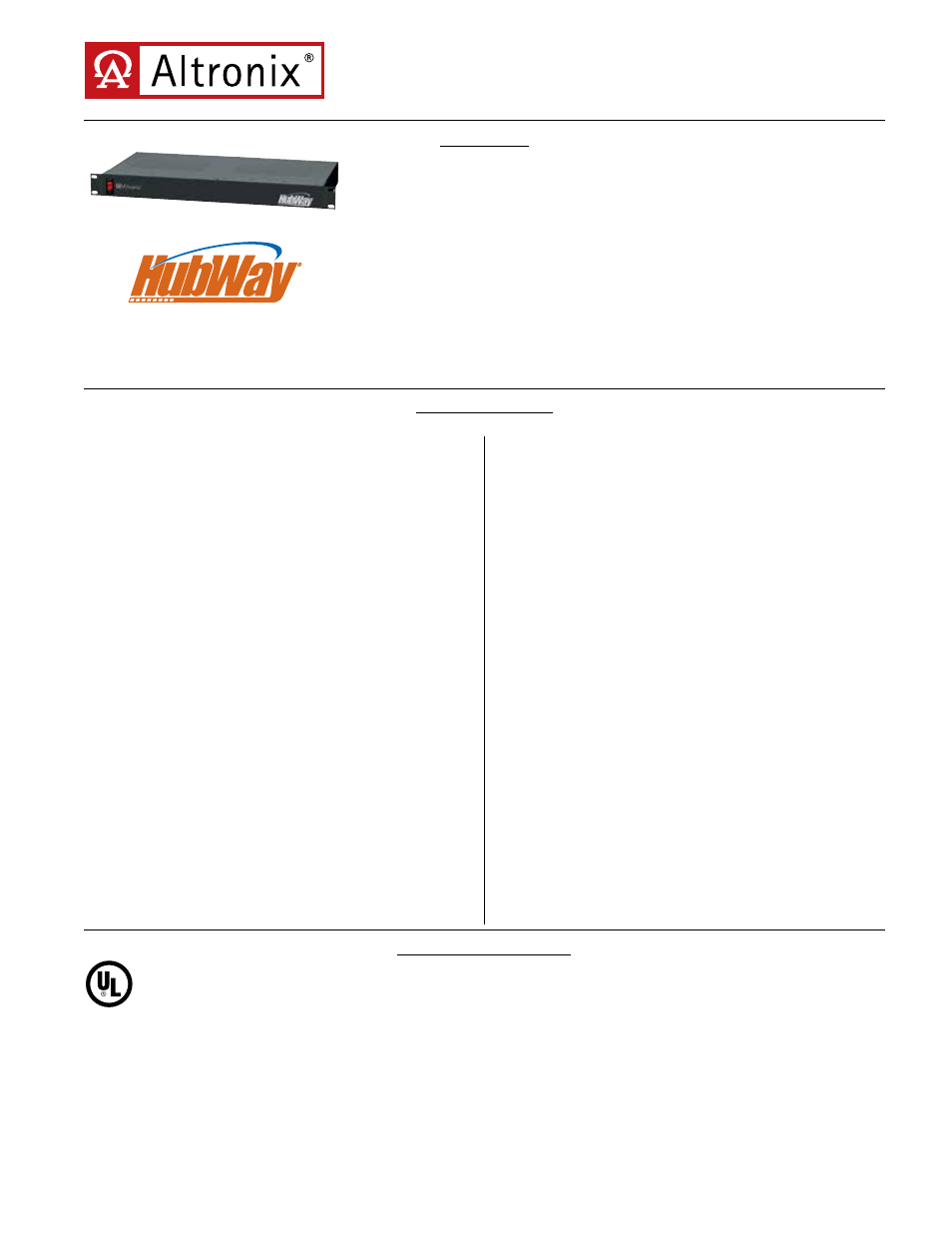

HubWay8DS Passive UTP Transceiver Hub w/Integral Camera Power trans-
mits UTP video, RS422/RS485 data and power over a single CAT-5 or higher
structured cable. Unit provides 8 camera channels in a space saving 1U EIA
19” rack mount chassis which may be wall or shelf mounted. Video trans-
mission range is up to 750 ft. max. per channel. Units are compatible with
AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv,
HubWayDv or HubWayDvi Video Balun/Combiners. An optional HubSat4D
Passive UTP Transceiver Hub with Integral Camera Power can be used as an
accessory module to transmit video from up to 4 cameras over a single CAT-5
or higher structured cable back to the HubWay8DS. In addition, the HubSat4D
provides power to these cameras locally to eliminate the possibility of voltage
drop associated with long cable runs.
HubWay8DS Passive UTP Transceiver Hub
with Integral Camera Power
Rev. DSHubWay8DS - 10262012
Overview
Specifications
UL Listed for Commercial CCTV Equipment (UL 2044).
Agency Approvals
Input:
• 115VAC 60Hz, 1.5 amp or 230VAC 50/60Hz, 1 amp.
Video:
• Eight (8) channels of video over twisted pair
up to a distance of 750 ft. (228.6m) per channel.
• Eight (8) 75 ohm video outputs.
Data:
• RS422/RS485 data inputs.
Power:
• Unit provides up to 1 amp max. per channel not to
exceed a total of 5 amp (150VA) maximum current.
• Individually selectable 24VAC or 28VAC isolated
power outputs with OFF position.
• Class 2 Rated power limited outputs.
• PTCs are rated @ 1 amp per channel.
• Surge suppression.
Electrical:
• Operating temperature: 0º C to 49º C ambient.
• Total system power consumption: 150 W.
• 57 BTU/Hr.
• System AC input VA requirement: 150VA.
Features:
• Eight (8) power LEDs.
• Illuminated master power disconnect circuit breaker
with manual reset.
• IEC 320 - 3-wire grounded line cord (detachable).
Accessories:
• Optional HubSat4D allows transmission of up to
four (4) video signals over a single CAT-5 or higher
structured cable.
• Video Balun/Combiners:
-
HubWayAv2 Slim-line - compatible with all
HubWay UTP Hubs for AC or DC fixed cameras
or
PTZs.
-
HubWayDv - compatible with all HubWay
UTP Hubs for DC fixed cameras or PTZs.
-
HubWayDvi - built-in isolation. Compatible with
all HubWay UTP Hubs for DC fixed cameras
or
PTZs.
Mechanical:
• Units can be rack, wall or shelf mounted.
• Modular 1U standard EIA 19” rack mount chassis.
• Enclosure Dimensions (H x W x D approx.):
1.625” (41.275mm) x 19.125” (486mm)
x 8.5” (216mm)
• Product weight (approx.): 10.4 lbs. (4.72 kg).
• Shipping weight (approx.): 11.7 lbs. (5.31 kg).
HubWay8DS
