Terminal identification: power supply board, Power distribution module, Power distribution module(s) – Altronix AL400ULXR Installation Instructions User Manual

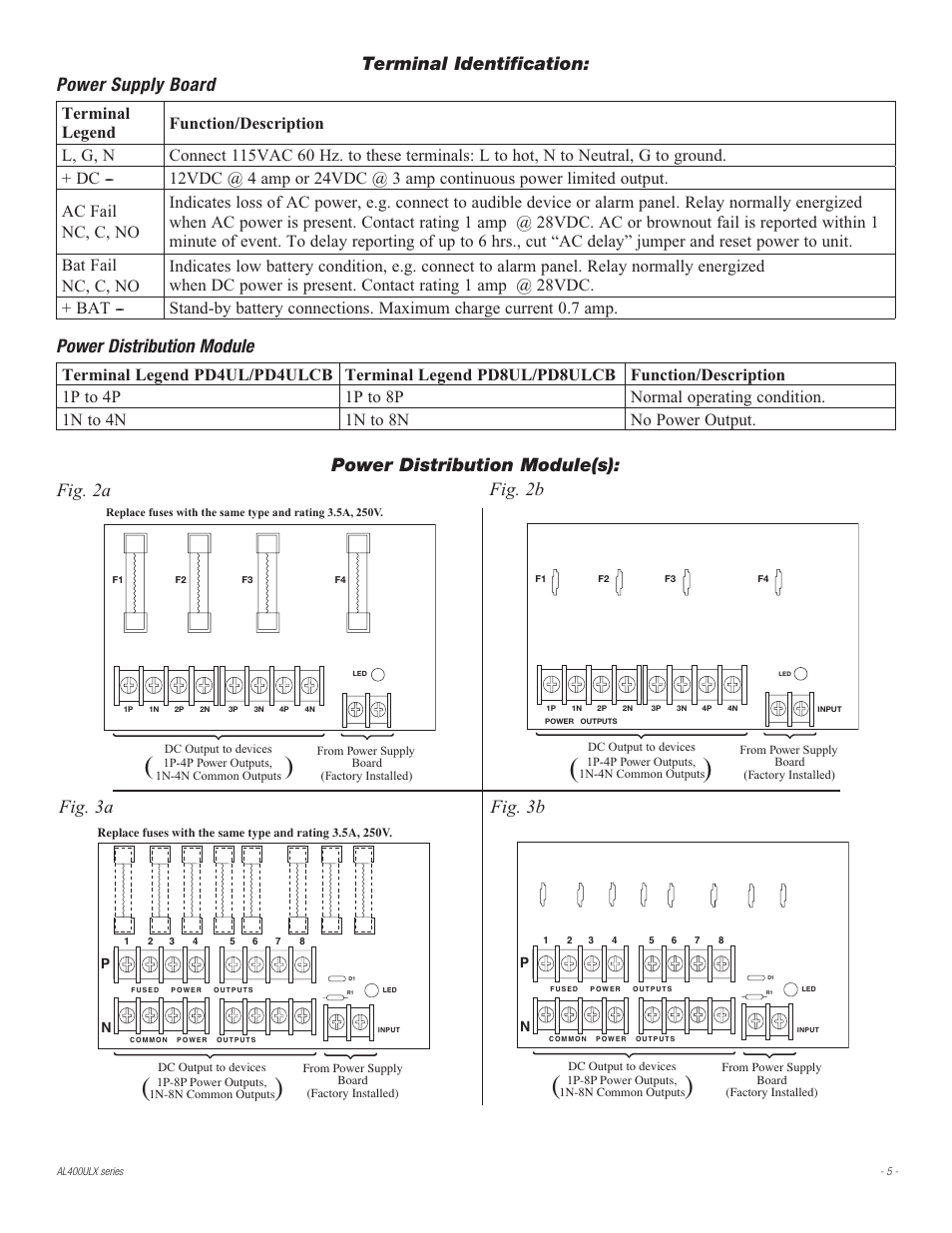

Page 5: Fig. 2a fig. 3a, Fig. 2b, Fig. 3b
