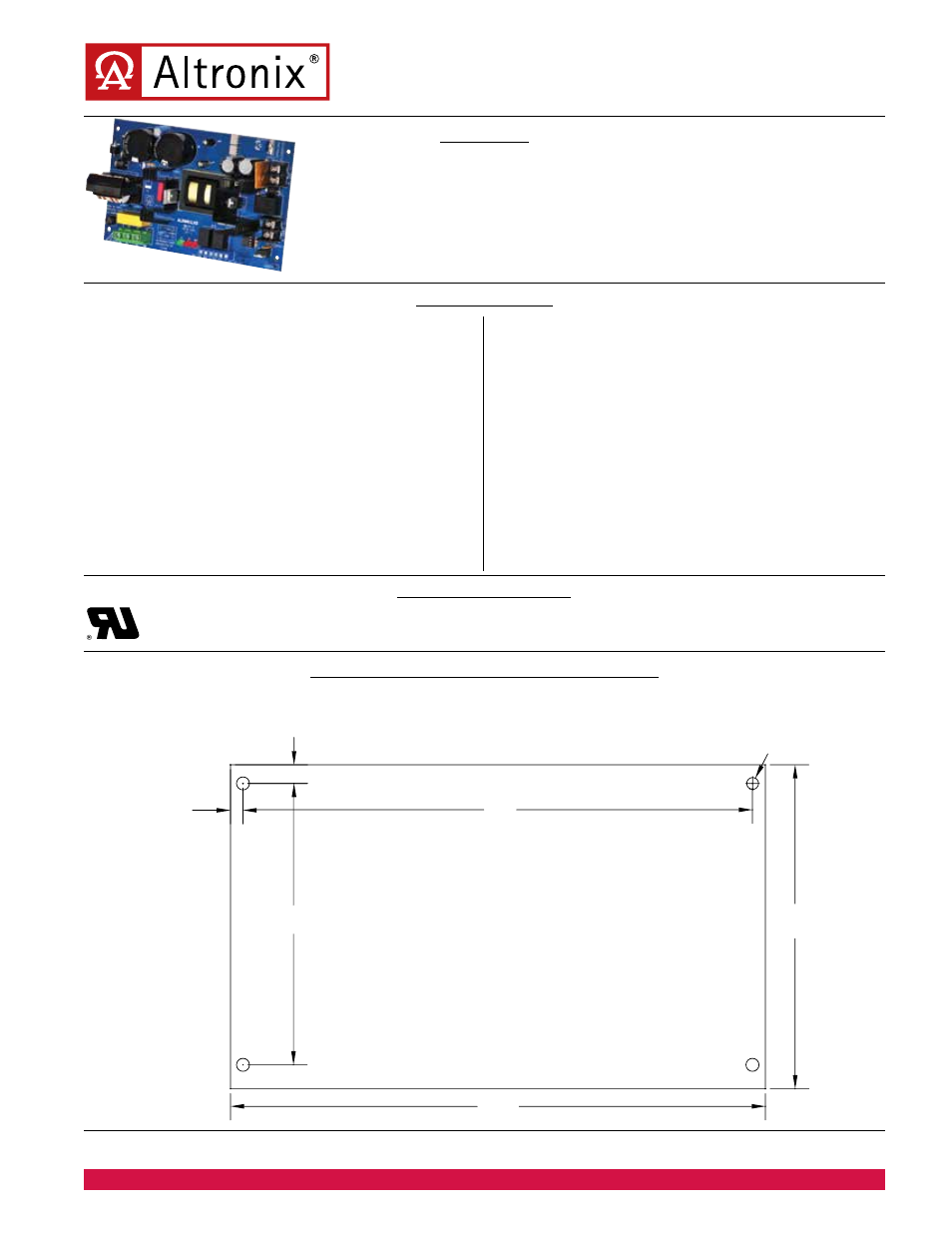

Altronix AL600ULXB Data Sheet User Manual
Al600ulxb off-line switching power supply/charger

Specifications
Agency Approvals
0.25”
(6.35mm)
3.7”
(93.98mm)
4.5”
(114.3mm)
6.7”
(170.18mm)
7.11”
(180.59mm)
0.17”
(4.32mm)
Ø
0.156”
(3.96mm)
UL Recognized component for Access Control System Units (UL 294),
Standard for Safety for Fire Protective Signaling Systems (UL 1481).
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com
AL600ULXB
Board Dimensions
(L x W x H) (approximate)
:
4.5” (114.3mm) x 7.11” (180.59mm) x 2.01” (51.05mm)
AL600ULXB is a UL Recognized power supply/charger that converts a
115VAC, 60Hz input into a single 12VDC or 24VDC non power-limited output.
AL600ULXB
Off-line Switching Power Supply/Charger
Rev. DSAL600ULXB_06192012
Overview
Input:
• Input 115VAC, 60Hz, 3.5 amp.
Output:
• 12VDC or 24VDC selectable output.
• 6 amp continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Automatic switch over to stand-by battery
when AC fails.
• Maximum charge current 0.7 amp.
Supervision:
• AC fail supervision (form “C” contacts).
• Low battery supervision (form “C” contacts).
• Battery presence supervision (form “C” contacts).
Visual Indicators:
• AC input and DC output LED indicators.
Electrical:
• Operating temperature: 0º C to 49º C ambient.
• 36.85 or 73.70 BTU/Hr.
• System AC input VA requirement: 218.5VA.
Mechanical:
• Product weight (approx.): 1.55 lbs. (0.70 kg).
• Shipping weight (approx.): 1.75 lbs. (0.79 kg).
