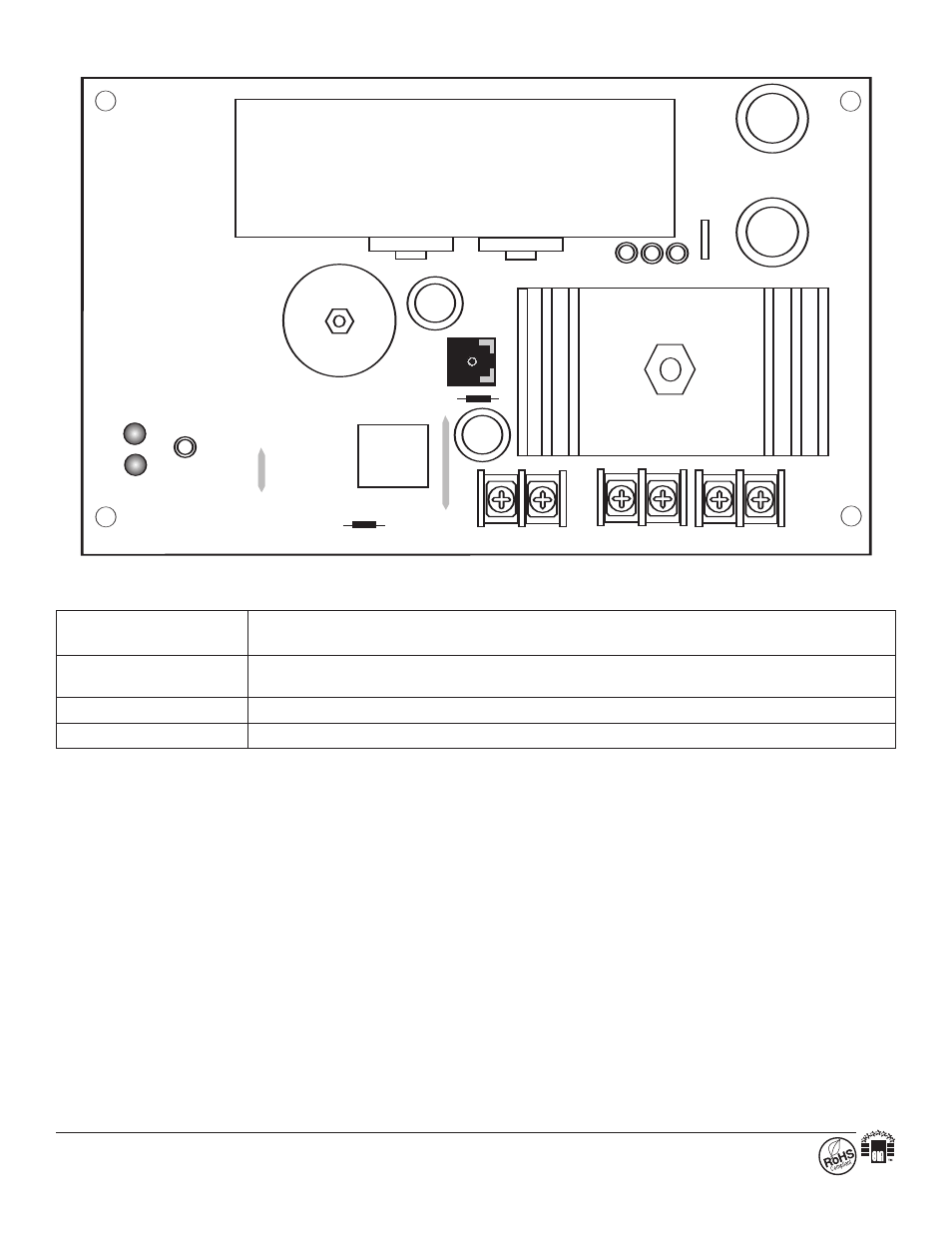

Terminal Identification:
Terminal Function/Description
Legend
AC/AC Low voltage AC input (28VAC / 175VA).
Altronix model # T2428175
+ DC -- 12VDC or 24VDC @ 6 amp continuous supply current.
+ BAT -- Stand-by battery connections. Maximum charge rate 600mA.
+ DC ---
AC
AC AC + BAT ---
OPEN = 24V SW1 CLOSED = 12V
DC
RLY1
PTC
J2
