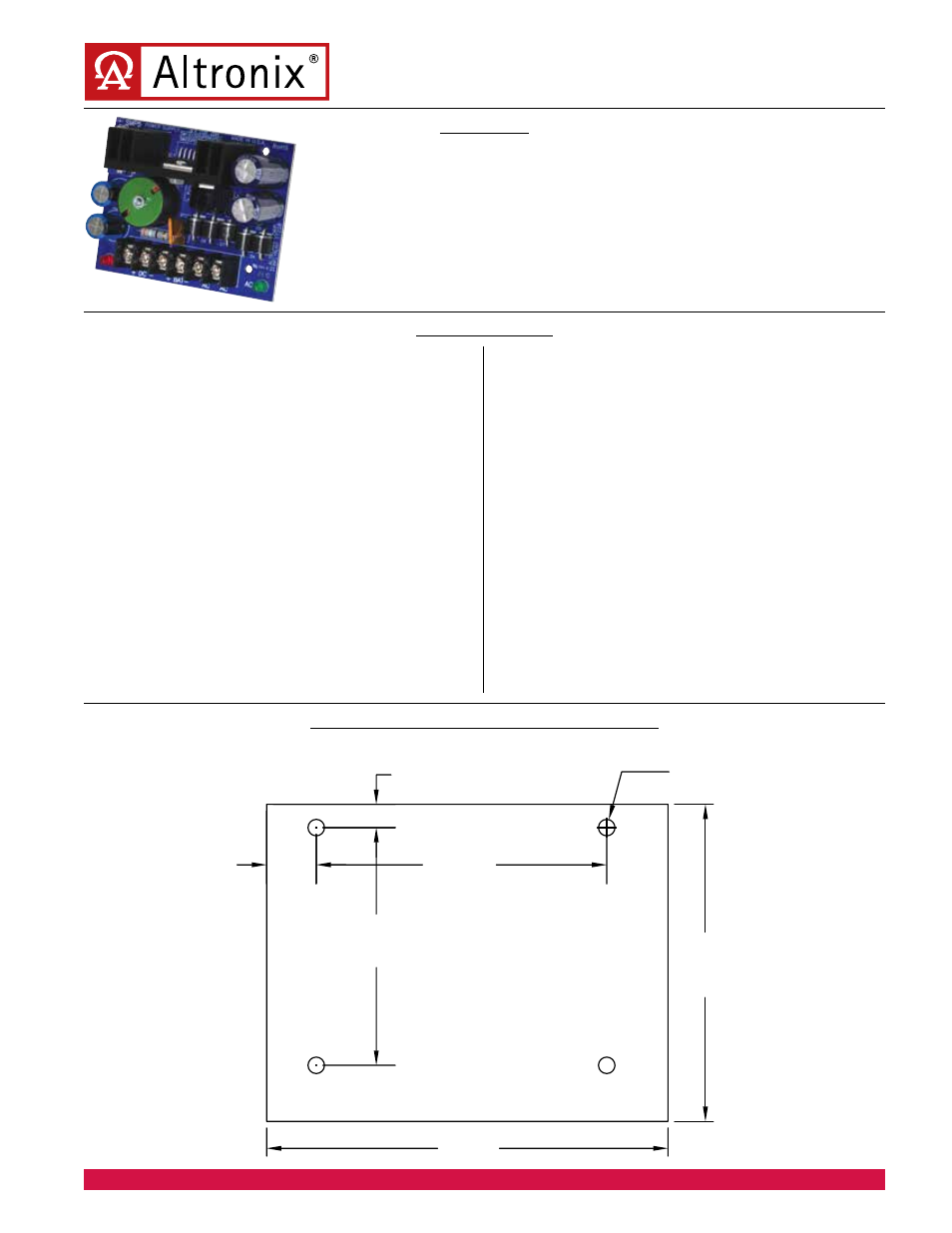

Altronix SMP5 Data Sheet - Manual

Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com
SMP5 power supply/charger converts a low voltage AC input into a 6VDC, 12VDC
or 24VDC output. This unit has a wide range of applications for access control, secu-
rity and CCTV system accessories that require additional power.
SMP5 Power Supply/Charger
Rev. DSSMP5 - 11192012
Overview
Specifications
SMP5
Input:
• 6VDC applications use TP1640.
• 12VDC or 24VDC applications use T2428100.
Output:
• 6VDC, 12VDC or 24VDC selectable output.
• 4 amp supply current.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Maximum charge current 0.3 amp.
• Zero voltage drop when switching over
to battery backup.
Visual Indicators:
• AC input and DC output LED indicators.
Electrical:
• Operating temperature: 0º C to 49º C ambient.
Electrical (cont’d):
• BTU/Hr.:
- 6VDC: 12.28 BTU/Hr.
- 12VDC: 24.57 BTU/Hr.
- 24VDC: 49.13 BTU/Hr.
• System AC input VA requirement:
- 6VDC: 55.2VA.
- 12VDC/24VDC: 115VA.
Features:
• Extremely compact design.
• Includes battery leads.
• Snap Trac compatible
(order Altronix model number ST3).
Mechanical:
• Board Dimensions (L x W x H approx.):
3.5” (88.9mm) x 3” (76.2mm) x 2” (50.8mm)
• Product weight (approx.): 0.35 lbs. (0.16 kg).
• Shipping weight (approx.): 0.45 lbs. (0.20 kg).
Board Dimensions (L x W x H) (approximate) :
3.5” (88.9mm) x 2.75” (69.85mm) x 1.75” (44.45mm)
3.5"
88.9mm
3.0"
76.2mm
0.47"
11.9mm
0.22"
5.59mm
2.25"
57.15mm
2.75"
69.85mm
Ø0.156"
3.96mm
