VEGA VEGASOURCE 35 Emitter loading and exchange - Manual (Page 8)

l
Attach the adhesive label "Radioactive" to the cover of the source
container (if not already present)
l
Place the cover back on
l
Insertion or exchange of the source is finished
2.2 V ersion B
4
6
1
3
2
5
9
8
7
10
11

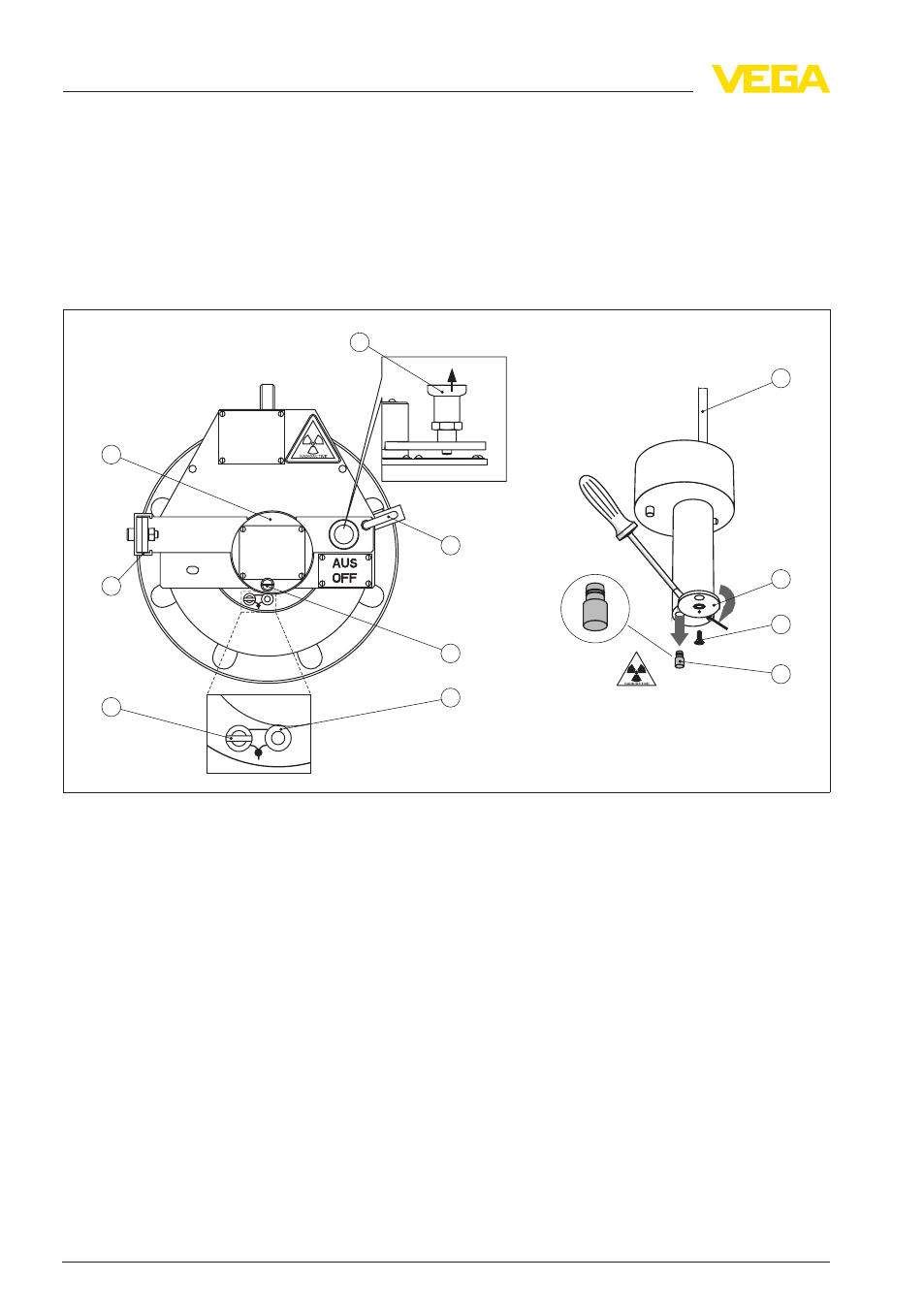

Fig. 6: Emitter exchange - VEGASOURCE version B
1
Padlock
2 Locking screw
3 Fixing pin
4 Securing strap
5 Holding pin
6 Capstan screw
7 Safety bolt - Source capsule (optional)
8 Cover plate
9 Source capsule
10 Source holder
11 Extension rod (M8), optional
You need the following tools when exchanging the emitter on version
B:
l
Key for padlock
l
Hexagon spanner size 5
l
Allen key size 2.5 (optional)
l
Flat-headed screwdriver size 1.5 x 10
Required tools
8 Emitter loading and exchange • VEGASOURCE 31 35
