Allen key size 2.5 (optional)

Flat-headed screwdriver size 1.5 x 10

Flat-headed screwdriver size 4 mm

Side cutters

Gripper tool or manipulator for source capsule

Possibly extension rod M6

Remove padlock (1)

Loosen locking screw (2) with a ﬂat head screwdriver 1.5 x 10

Remove the seal of the capstan screw (3) with the side cutting
pliers and pull out the seal wire

Unscrew the capstan screw (3) until the ﬁxing strap (4) can be
folded up

Fold up the ﬁxing strap (4)

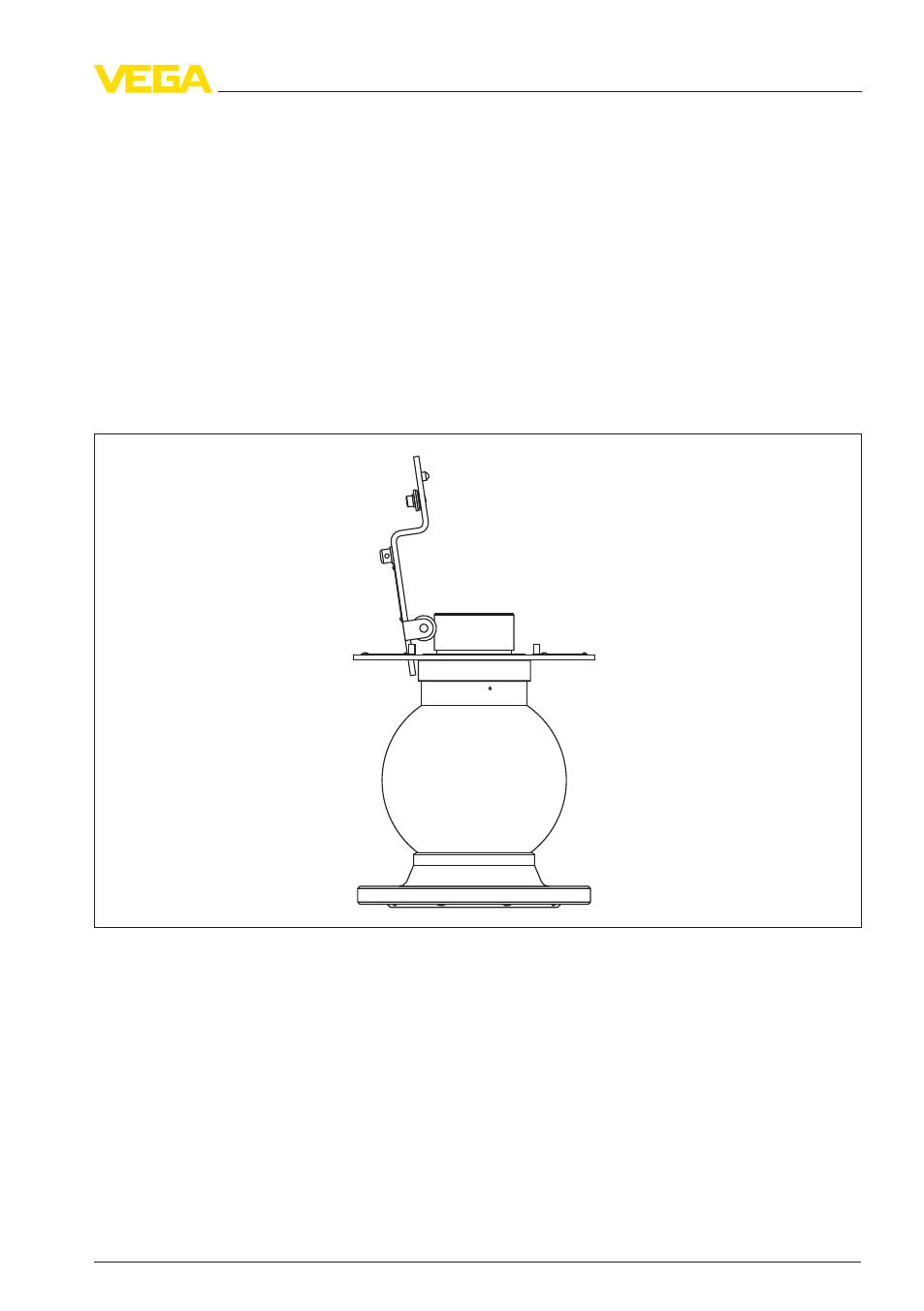

Fig. 13: VEGASOURCE - version D in extraction position

If necessary, screw an extension rod (9) with thread M6 into the
thread of the source holder (5). With this extension you can
increase the distance to the emitter

Unscrew source holder (5) with spanner (size 13) and pull it out of
the source container

Only when exchanging the emitted: Insert the blade of a
screwdriver (4 mm) into the slot (6) on the source holder (5) and
press out the source capsule (7) or unscrew the source capsule
with a screwdriver (2 mm). Let the source capsule (7) fall into a
shielded vessel

Remove source holder

Insert or exchange emit-
ter

Emitter loading and exchange • VEGASOURCE 31 35

2 Loading or emitter exchange
