VEGA VEGASOURCE 35 Emitter loading and exchange - Manual (Page 18)

l
Switch off compressed air and remove the feed lines. The source
container must now be in position OFF
l
Off position of the drive unit with padlock - secure switching
function (1)
l
Remove padlock (3)
l
Remove the seal (4) from the strap with side cutting pliers and pull
out the seal wire
l
Loosen fixing screws - drive unit (2) (3 pcs, hexagon size 4) and
remove them. The screws have different lengths
l Lift up the complete drive unit upward
l
Only loosen (4 pieces) the terminal screws (5) - do not unscrew
the screws
l
Detach the squared adaters with flange (11) upward
14
13
6
12

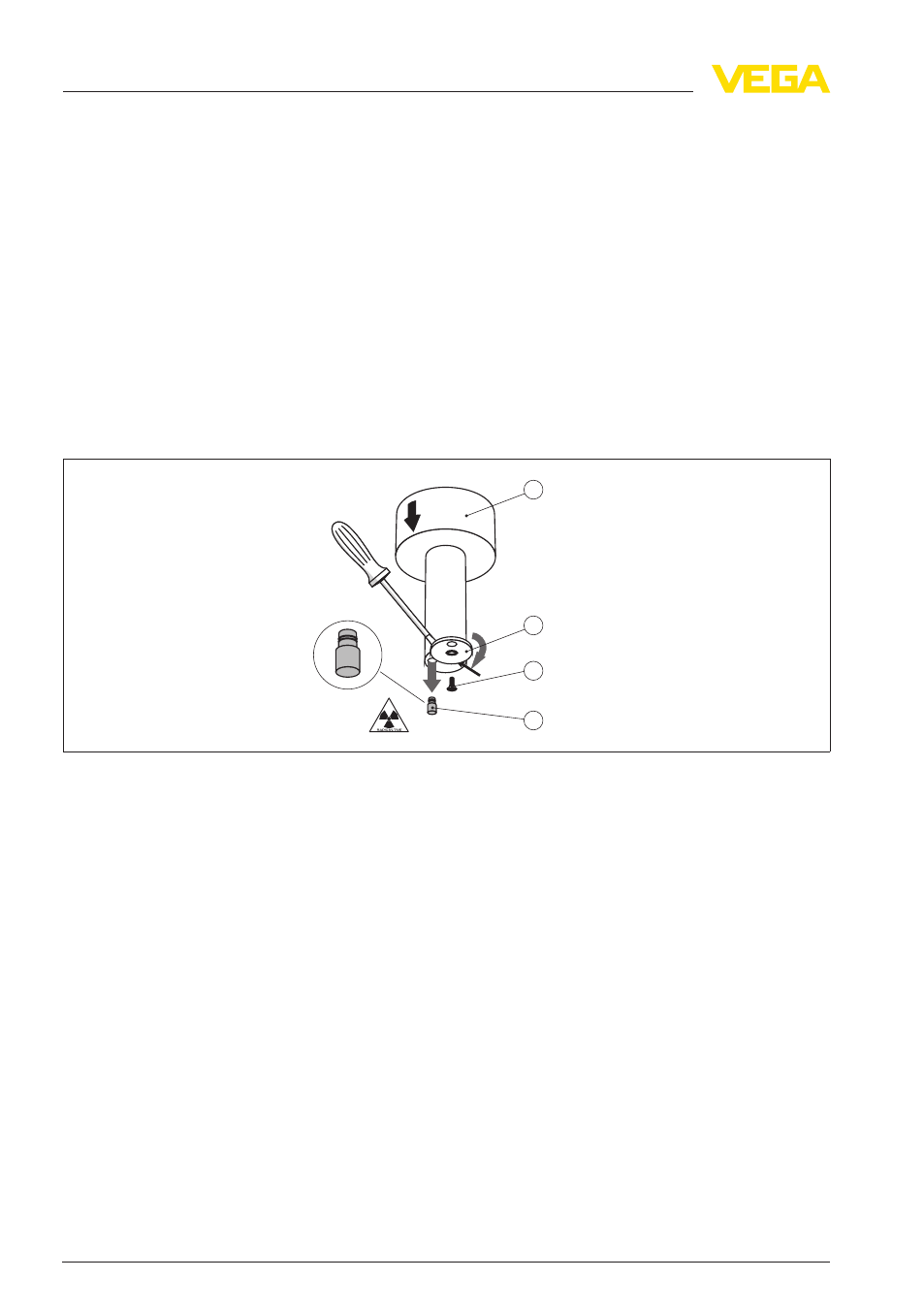

Fig. 16: Emitter exchange - source holder VEGASOURCE version K, L
6
Source holder
12 Safety bolt - Source capsule (optional)
13 Cover plate
14 Source capsule
A Arrow mark
l Loosen securing screw (8) with an Allen key size 4
l
Turn source holder (6) ¼ turn anticlockwise and pull it out of the
source container. The arrow mark (A) is above the OFF mark of
the adapter disc (7)
l
If it is present, remove the safety bolt (12) with Allen key size 2.5
l
Swivel the cover (13) in front on the thin cylinder of the source
holder to the side. To do this, lift the cover (13) slightly with a small
slotted screwdriver
l
Only when exchanging the emitter: Allow the source capsule (14)
to fall out downwards into a shielded vessel
l Insert new source capsule (14) and close cover (13). For insertion
use a suitable gripping device or a manipulator
l
Screw in the safety bolt (12) (optional)
Dismount drive unit and
squared adapter
Insert or exchange emit-
ter
18 Emitter loading and exchange • VEGASOURCE 31 35
2 Loading or emitter exchange
39155
