VEGA VEGASOURCE 35 Emitter loading and exchange - Manual (Page 22)

l
Switch off compressed air and remove the feed lines. The source
container must now be in position OFF
l
Off position of the drive unit with padlock - secure switching
function (1)
l
Remove padlock (3)
l
Remove the seal (4) from the strap with side cutting pliers and pull
out the seal wire
l
Loosen fixing screws (2) (3 pieces)
l
Lift up the complete drive unit upward
l Loosen fixing screws (5) (3 pieces)
l
Detach the squared adaters with flange (11) upward
12
13
8
14
13

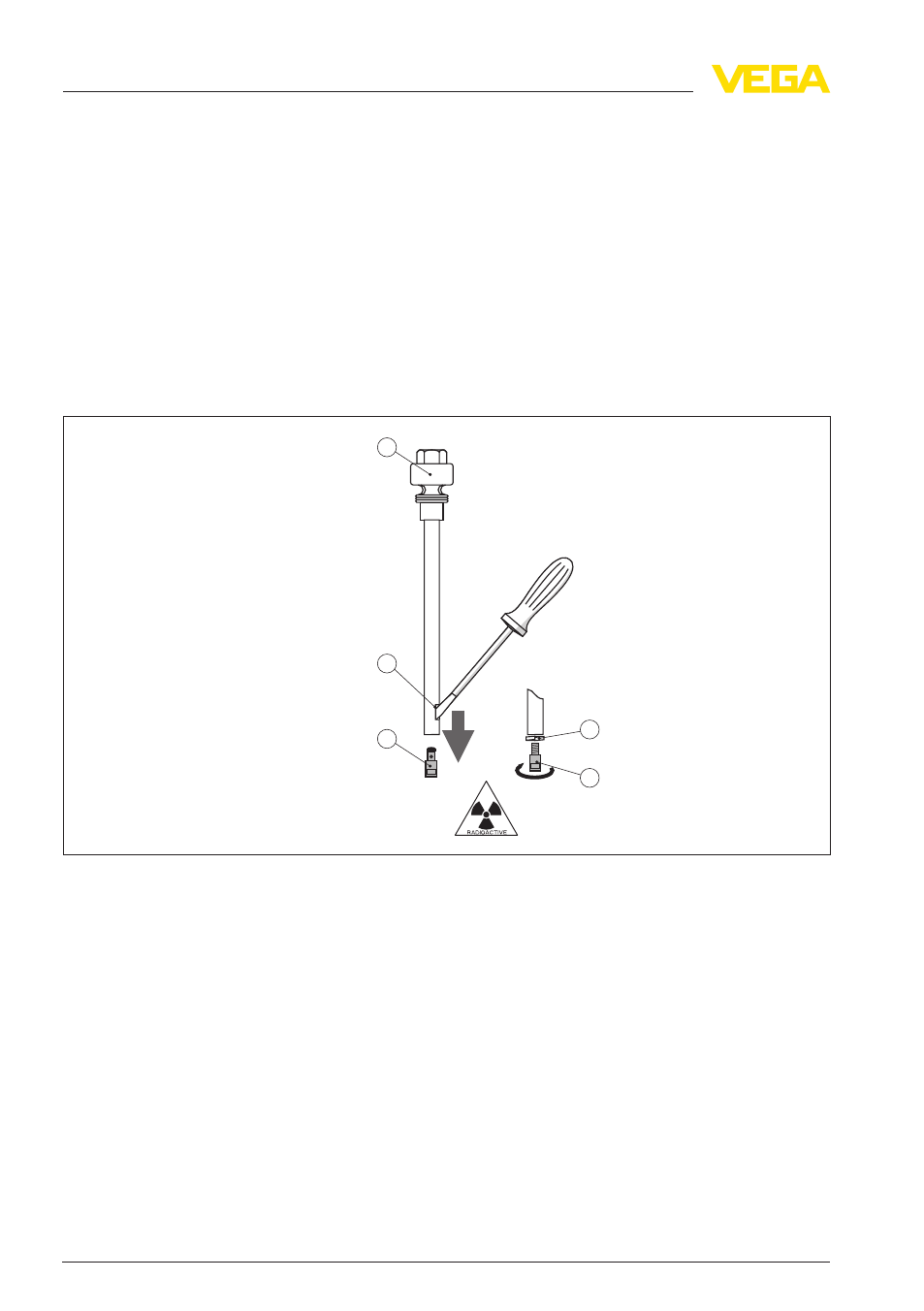

Fig. 19: Emitter exchange - source holder VEGASOURCE version M, N
8
Source holder
12 Slot
13 Source capsule
14 Spring ring
l
Unscrew source holder (8) with spanner (size 13) and pull it out of
the source container
l
Only when exchanging the emitter: Insert the blade of a
screwdriver (4 mm) into the slot (12) on the source holder (8) and
press out the source capsule (13) or unscrew the source capsule
with a screwdriver (2 mm). Let the source capsule (13) fall into a
shielded vessel
Dismount drive unit and
squared adapter
Insert or exchange emit-
ter
22 Emitter loading and exchange • VEGASOURCE 31 35
2 Loading or emitter exchange
