0,1
0,0
1,0
2,0
3,0
4,0
5,0
6,0
0,2 0,3 0,4 0,5 0,6 0,7 0,8 0,9 1,0 1,1 1,2 1,3 1,4 1,5 1,6 1,7 1,8 1,9 2,0
(bar)
(m 3 /h)

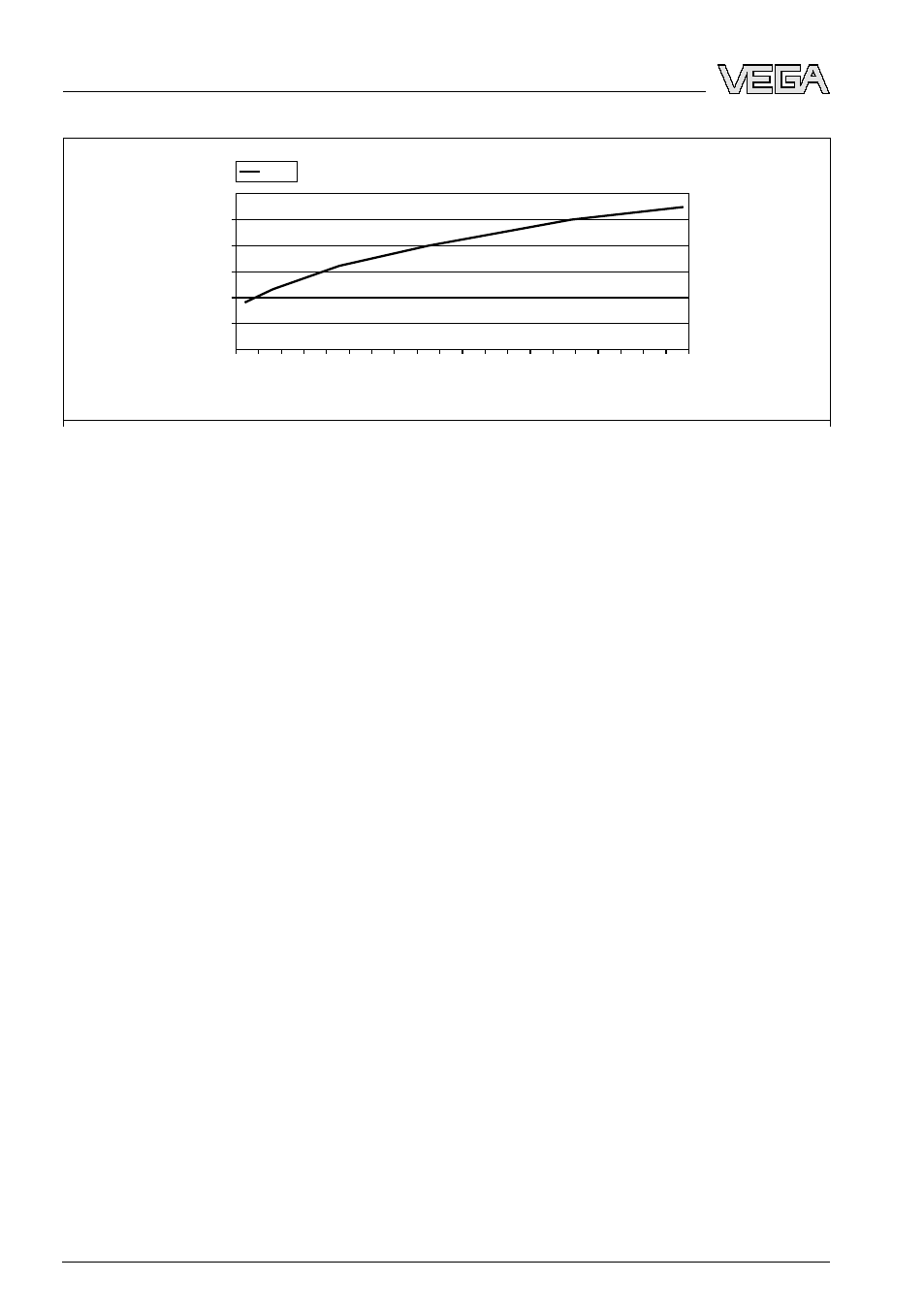

Fig. 38: Air quantity diagram
Thread G⅛ A
Catch
-
with non-Ex Dust protection cover of PE
-
with Ex Threaded plug of 316Ti
Reflux valve - unmounted (as option with non-Ex version, included in the scope of delivery with Ex
version)
-
Material 316Ti
-
Seal FKM (Viton), FFKM (Kalrez 6375)
-
for tube diameter 6 mm
-
opening pressure 0.5 bar (7.252 psi)
-
Nominal pressure stage PN 250
58 VEGAPULS 68 • Foundation Fieldbus
