6 Setup with the integrated display and adjustment unit
VEGAMET 624 • 4 … 20 mA/HART
28969-EN-130701
•
Percent: adjusted measured value without taking a probably
stored linearization into account
•
Lin. percent: adjusted measured value by taking a probably
stored linearization into account
•
Scaled: adjusted measured value by taking a probably stored
linarization into account as well as the values entered under "Scal-
ing"
•
Sensor value: input value delivered by the sensor. Presentation in
the selected adjustment unit
→

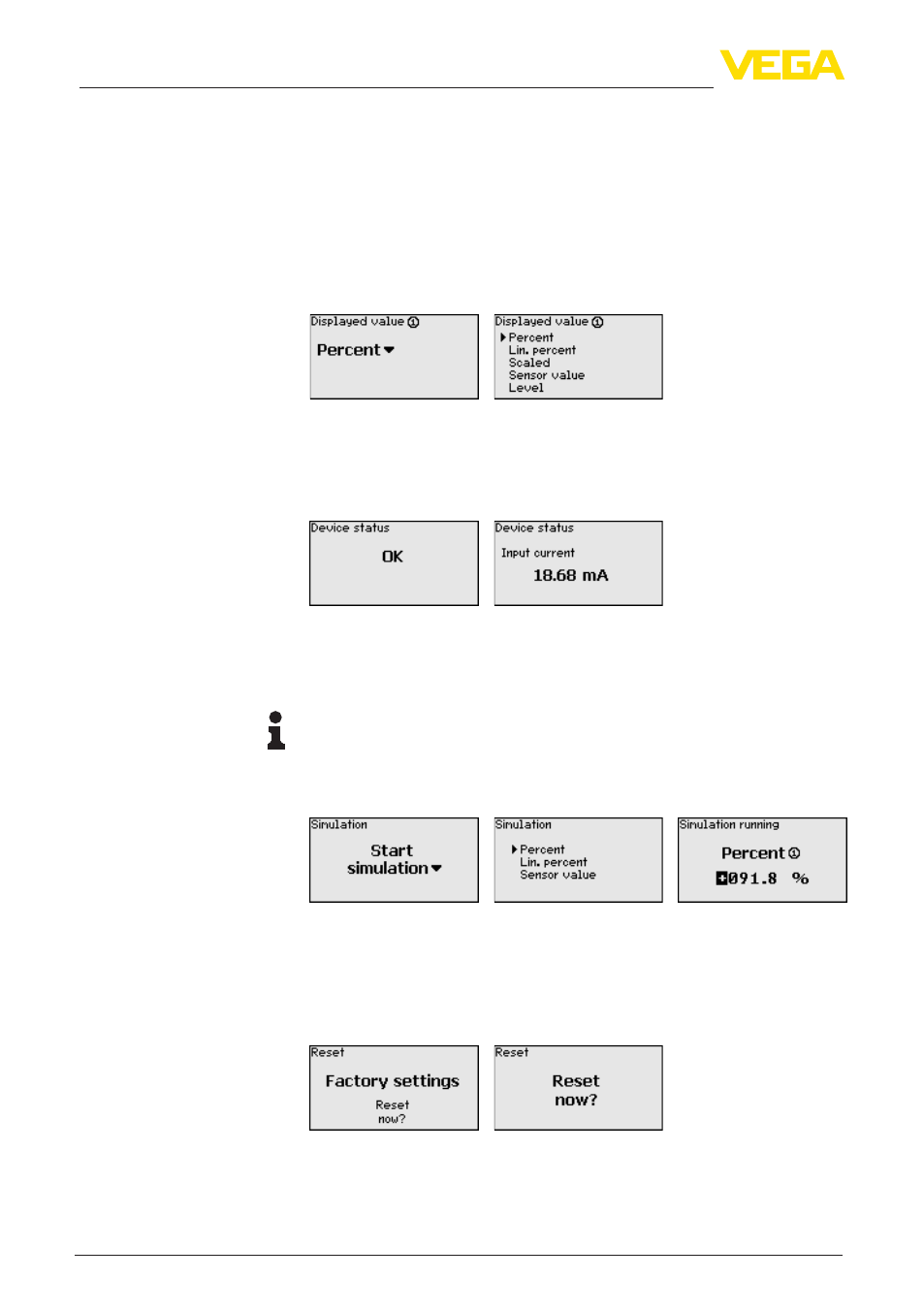

Enter the requested parameters via the appropriate keys and
save your settings with [OK].
When the instrument displays a failure message, further information is
available under the menu item "Diagnosis - Device status".
The simulation of a measured value is used to check the outputs and
connected components. The simulation can be applied to the percent-
age value, the lin. percentage value and the sensor value.
Note:
Please note that connected system parts (valves, pumps, motors,
control systems) are influenced by the simulation, thus unintentional
plant operating conditions can occur. The simulation is terminated
automatically after approxminately 10 minutes.
→
Carry out your settings via the appropriate keys and save with
[OK].
A reset to default changes all settings (with only a few exceptions)
back to factory default. Exceptions are: Host name, IP-address, sub-
net mask, time, language.
In the menu item "Display - Language", the requested display lan-
guage can be adjusted. The following languages are available:
•
German
Diagnostics
Service - Simulation
Service - Reset
Service - Display lan-
guage
