Adjustment example 1 – VEGA VEGAMET 602 User Manual
Page 16
16
VEGAMET 601, 602
Setup
0 %
100 %
Capacitive
electrodes
Hydrostatic pressure
transmitter
Process pressure
transmitter
Procedure:
• First of all, turn the potentiometer full adjust-
ment (1) approx. 22 revolutions clockwise.
• Fill the vessel to the requested minimum
level.
• Set with the potentiometer empty adjust-
ment (2) the display of the connected
measuring instrument to 0.0 V, this corre-
sponds to 0 %.
• Fill the vessel to the requested max. level.
• Set with the potentiometer full adjustment
(1) the display of the connected measuring
instrument to 10.0 V by turning anticlock-
wise, this corresponds to 100 %.
• The signal conditioning instrument is ad-
justed and ready for operation
Please cover with the transparent cover
(14).
0/4
0
20 mA
10 V
100 %
0 %
Level

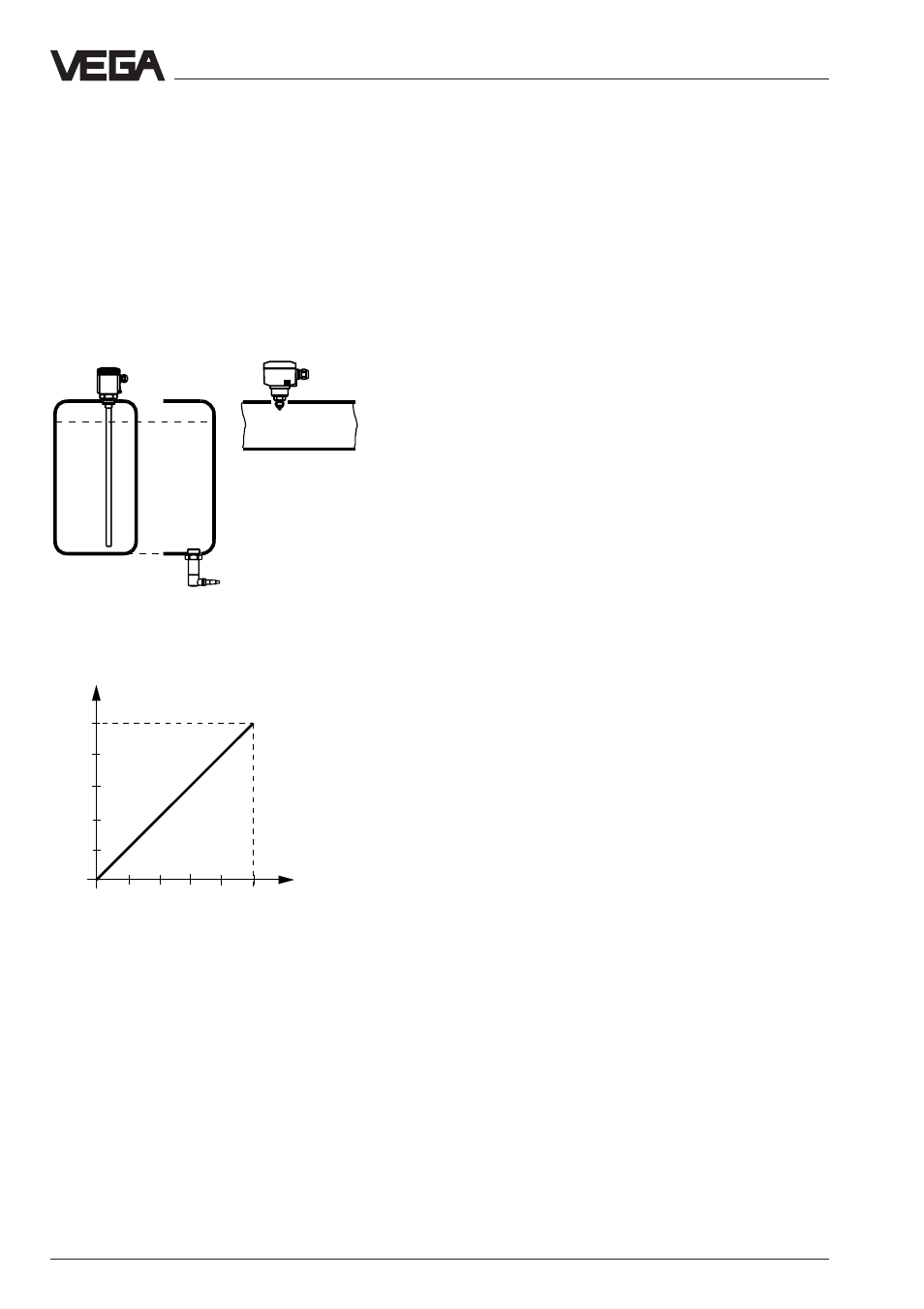

Adjustment example 1
The vessel can be emptied to min. level and
filled to max. level.
Sensor:
- vertically mounted capacitive measuring
probe
- hydrostatic pressure transmitter
- process pressure transmitter
