VEGAMET 601, 602 11
1 2 4
5 6 7 8
9 10 11 12 13 14
3
A o
B o
C o
1 o
2 o
3 o
o
o
o
7 o
8 o
9 o
o
o
o
N
L1
0…10 V
DISBUS
VEGA
Direct connection for supply
voltage
Separating wall
(must be always plugged
with Ex instruments)
Direct supply for voltage
output 0 … 10 V

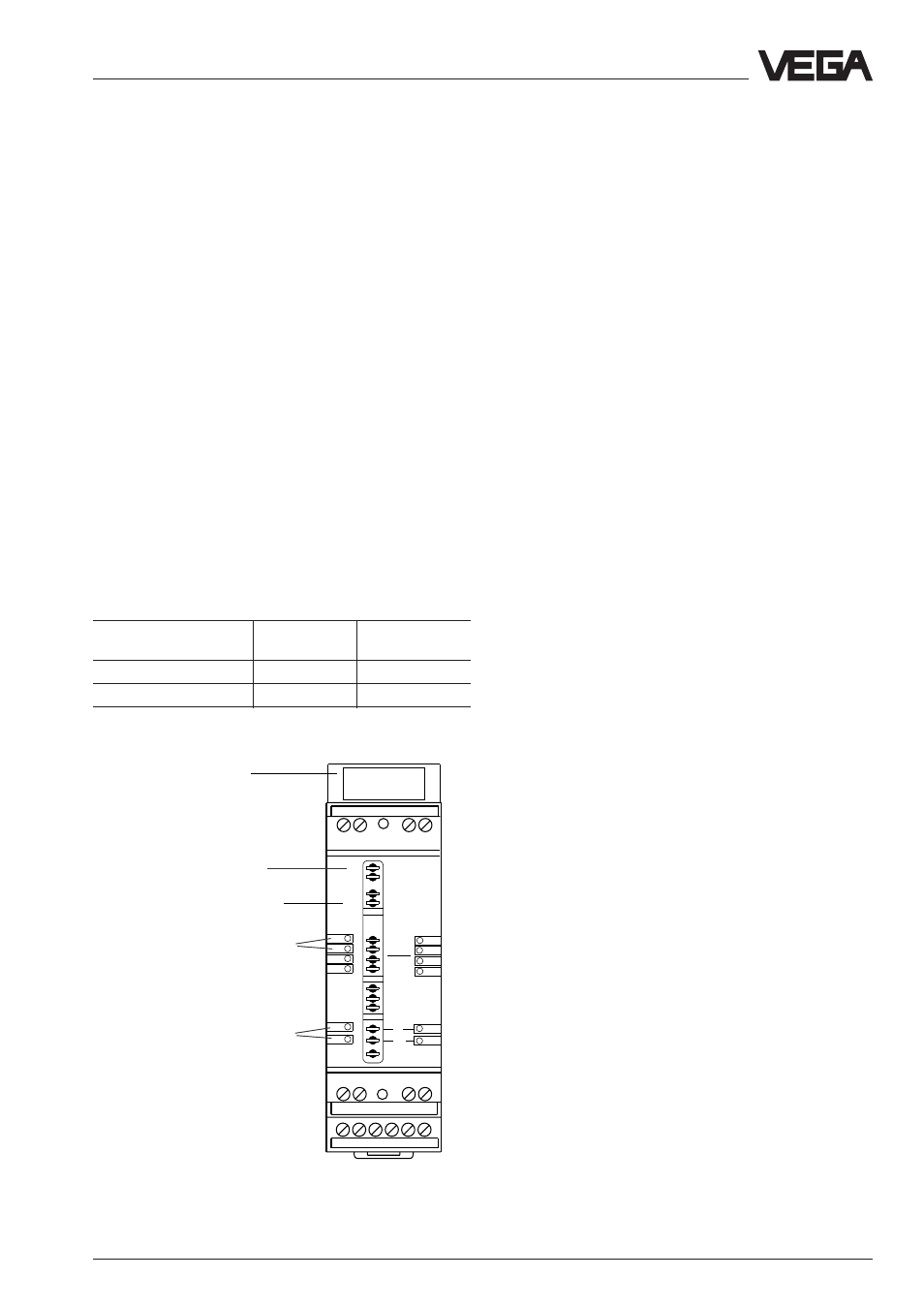

Coding
To avoid mixing up the various signal condi-
tioning instruments, the plug-in socket is
provided with pins and the signal condi-
tioning instrument with appropriate gaps
(mechanical coding).
Instrument coding ensures (with differently
positioned coded pins) that the various sig-
nal conditioning instruments are not inadvert-
ently swapped.
An Ex coding with fixed coded pin ensures
that non-Ex and Ex instruments are not inter-
changed.
The coding is part of the explosion protec-
tion: on VEGAMET 602 Ex the supplied
coded pins (instrument coded pin and Ex
coded pin) must be inserted by the operator
acc. to the table below.
Instrument Ex
coding coding
VEGAMET 601 1 ––
VEGAMET 602 Ex 1 A
Mounting and installation instructions
Instrument coding
VEGAMET 601, 602
Ex coding
