VEGAPULS 54K enamel
24 101-EN-041227
Technical data
Measuring range
1)
Standard
0 … 20 m
Output signal
4 … 20 mA current signal
in two or four-wire technology
Fault signal
current signal unchanged,
20.5 mA, 22 mA (adjustable)
Integration time
0 … 999 seconds (adjustable)
Two-wire technology 4 … 20 mA:
The analogue 4 … 20 mA output signal (measuring signal) is transmitted together with the
power supply via one two-wire cable.
Four-wire technology 4 … 20 mA:
Separate power supply. The analogue 4 … 20 mA output signal (measuring signal) is trans-
mitted in a cable separate from power supply.
Measured value display (optional)
Liquid crystal indication
-
in the sensor
scalable output of meas-
ured values as graph
and number
-
in the external indicating instrument
powered by the sensor
scalable output of
measured values as graph
and number. The display unit can be mounted
up to 25 m away from the sensor
Adjustment
- PC and adjustment software VEGA Visual Operating
- adjustment module MINICOM
- HART
®
handheld
Accuracy
1)
(typical values under reference conditions, all statements relate to the nominal measuring
range)
Characteristics
linear
Resolution, general
max. 1 mm
Resolution of the output signal
1.6 µA or 0.01 %
Accuracy

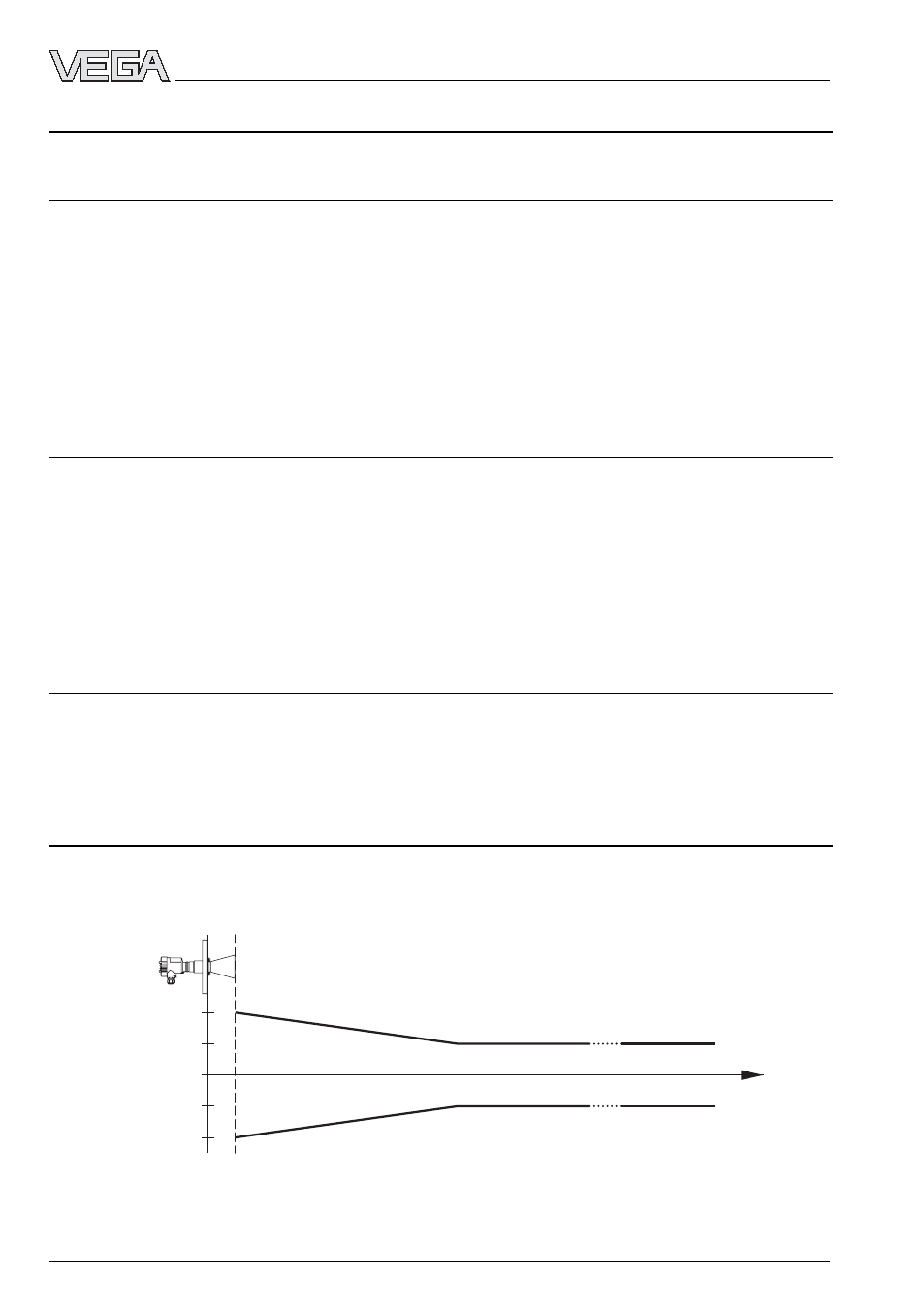

see diagram
Adjustment time
> 2 s (dependent on the parameter adjustment)
1)
Min. distance of the antenna to the medium 5 cm
2)
Similar to DIN 16 086, reference conditions acc. to IEC 770, e.g.
temperature 15 °C … 35 °C; moisture 45 % … 75 %; pressure 860 mbar … 1060 mbar
1,0 m
30 m
20 mm
10 mm
-10 mm
-20 mm
