4 Connection VEGALOG
The connection can be carried out via the RS232 interface in the front
of either the VEGALOG CPU or the VEGACOM 557/558.
2
3 4
1

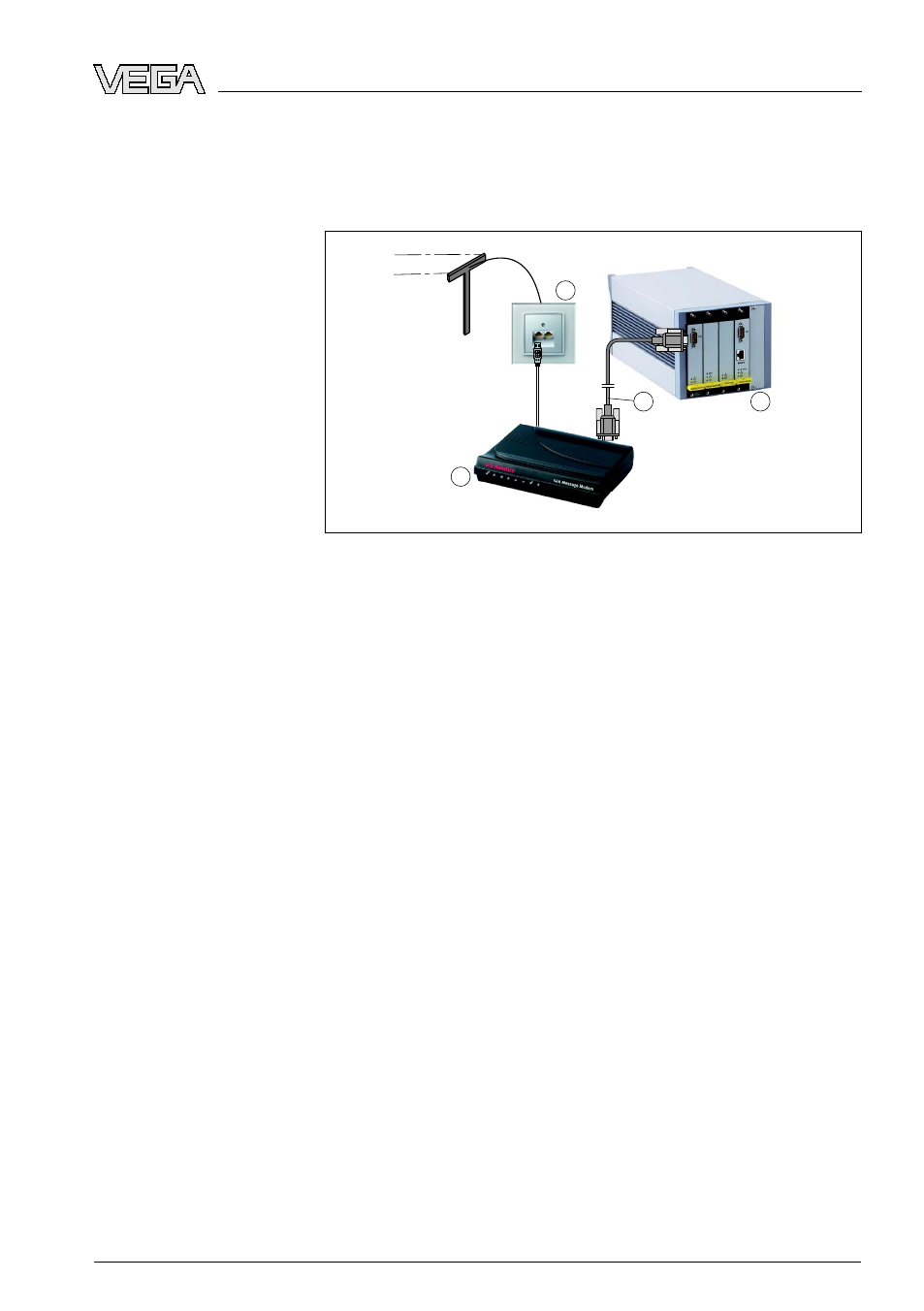

Fig. 6: Connection VEGALOG 571
1
Analogue telephone connection (not applicable in case of GSM radio
modem)
2 Standard analogue modem or GSM radio modem
3 RS232 modem cable (in the scope of delivery of the modem)
4 VEGALOG 571 CPU, VEGACOM 557/558
Connection via RS232
