Product description
With standard flanges of DN 50 to DN 150,
ANSI 2“ to ANSI 6“ or G 1½ A and 1½“ NPT,
the sensor antenna systems can be adapted
to various products and measuring environ-
ments.
The high-quality materials can also withstand
extreme chemical and physical conditions.
The sensors deliver stable, reproducible
analogue or digital level signals with reliability
and precision.
Continuous and reliable
Unaffected by temperature, pressure and
atmosphere content, VEGAPULS radar sen-
sors are used for quick and reliable continu-
ous level measurement of widely varying
products.

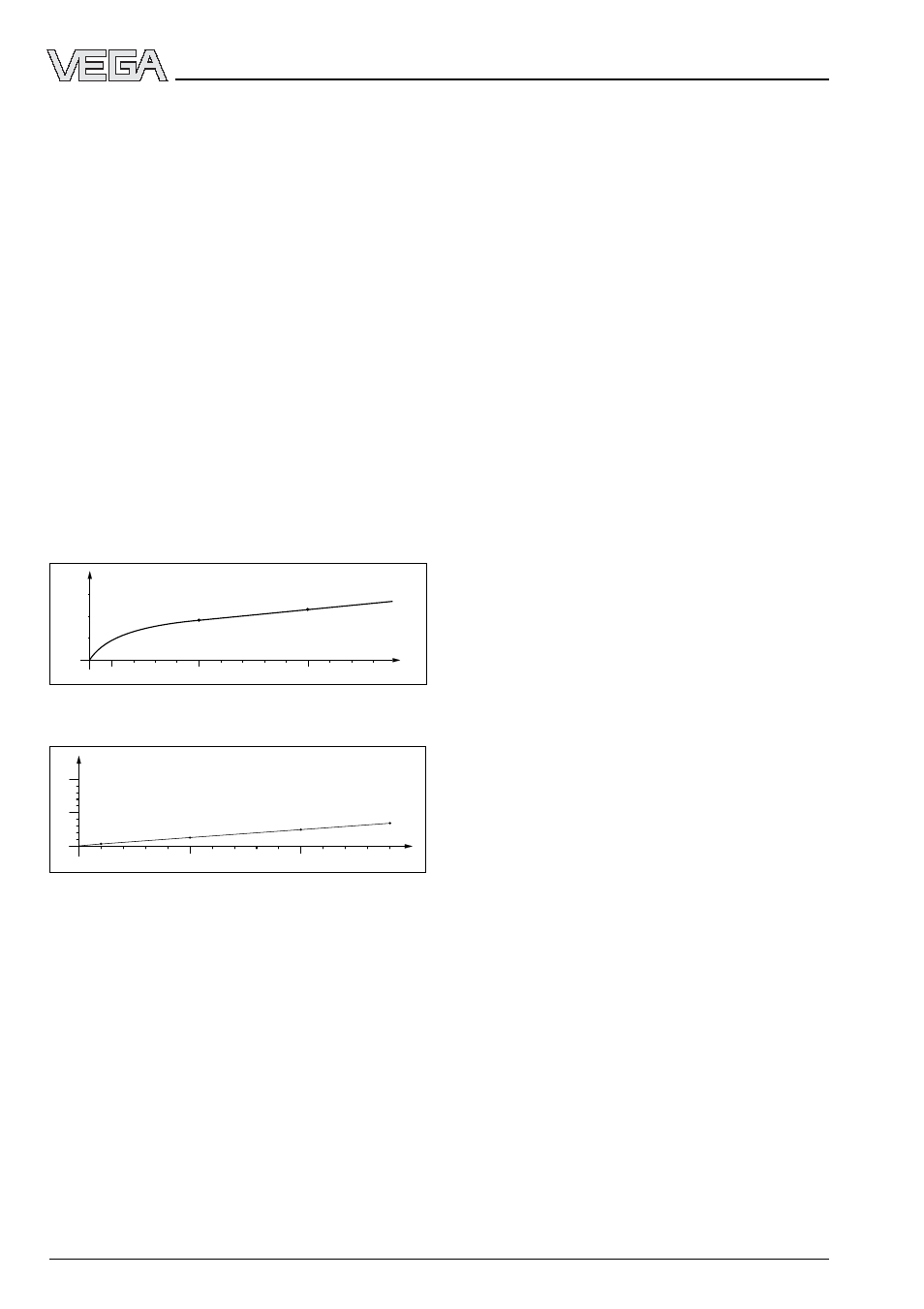

Temperature influence: Temperature error absolutely
zero (e.g. at 500°C 0.018 %)
100 500 1000 1300 ˚C 0
0
0,01
0,02
0,03
%
0,018 %
0,023 %
Pressure influence: Error with pressure increase very
low (e.g. at 50 bar 1.44 %)
10
0
0
5
%
1,44 %
2,8 %
10
50 20 30 40 60 100 70 80 90 110 120 130 140 bar
0,29 %
3,89 %
1.2 Application features
Applications
• level measurement of any liquid
• measurement also in vacuum
• all slightly conductive materials and all
substances with a dielectric constant > 2.0
• measuring range 0 … 10 m (DN 50).
measuring range 0 … 20 m (DN 80, DN
100, DN 150).
Two-wire technology
• power supply and output signal on one
two-wire cable (Loop powered)
• 4 … 20 mA output signal or HART ® output
signal.
Rugged and abrasionproof
• non-contact
• high-resistance materials
Exact and reliable
• accuracy 0.05 %.
• resolution 1 mm
• unaffected by noise, vapours, dusts, gas
compositions and inert gas stratification
• unaffected by varying density and tem-
perature of the medium
• measurement in pressures up to 16 bar
and product temperatures up to 150°C.
Communicative
• integrated measured value display
• optional display module separate from
sensor
• adjustment with detachable adjustment
module, pluggable in the sensor or in the
external display
• adjustment with HART ® handheld
• adjustment with the PC.
Approvals
• CENELEC, ATEX, PTB, FM, CSA, ABS,
LRS, GL, LR, FCC.
