20 VEGAPULS 43 – 4 … 20 mA
26626-EN-041227
0 %
~45ы
ш 100,8
0,0…0,4
1,5…2
3,6
0,0…0,4 150…500
5…10
3,6
ш 95 2
100 %

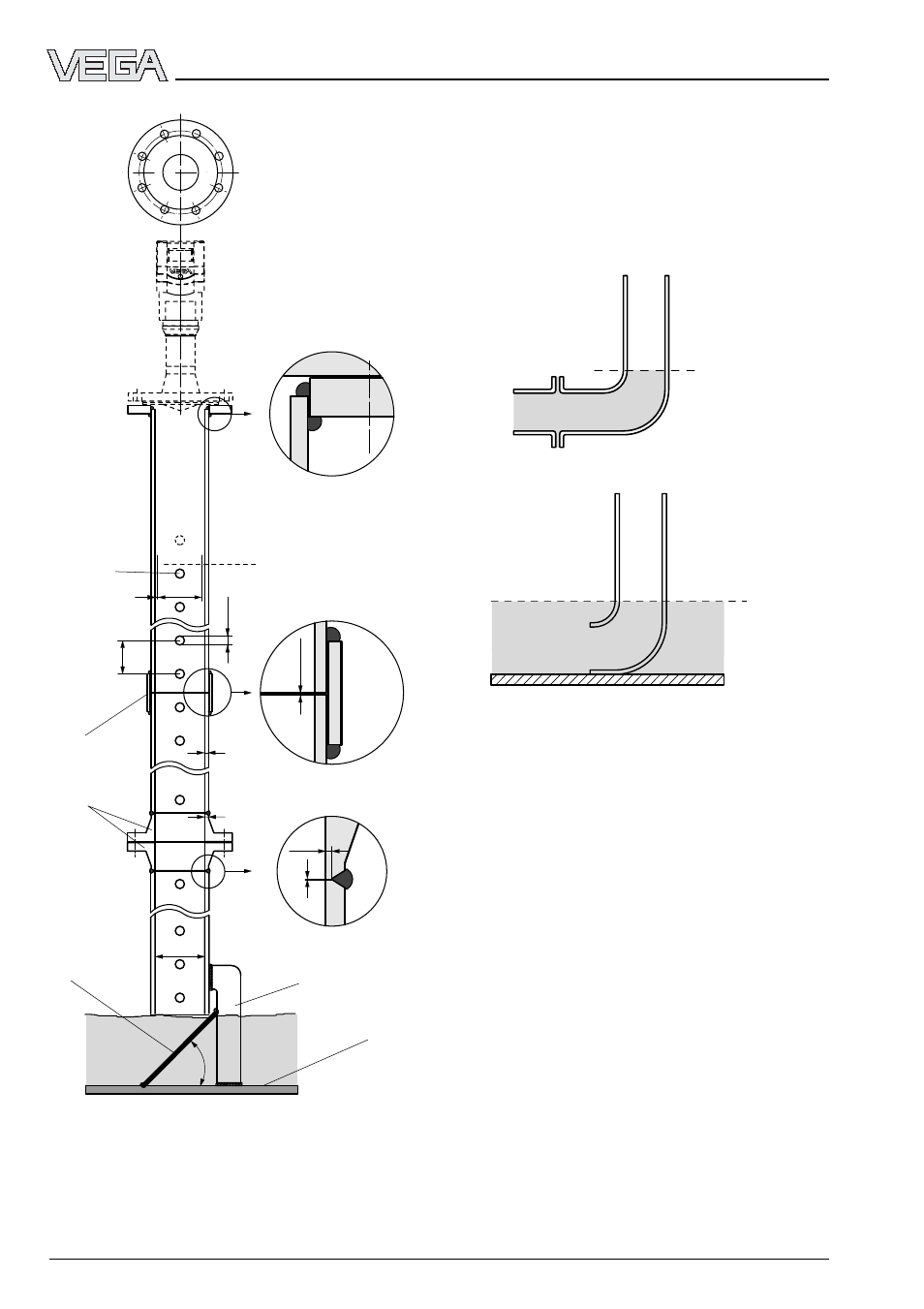

Flange
DN 100
Connecting
sleeve
Welding neck
flanges
Welding of the smooth
welding flange
Welding of the connect-
ing sleeves
Meas. pipe fastening
Vessel
bottom
Deflector
Deburr the
holes
Welding of the welding
neck flanges
Mounting and installation
The standpipe or surge pipe can be
equipped with a quadrant pipe at its end
instead of a deflector. The quadrant pipe
reflects the radar signals that penetrate the
medium diffusely to the side and diminishes
strong echoes from the tube end or the ves-
sel bottom.
0 %
0 %
Quadrant pipe on the bypass tube end
Quadrant pipe on the standpipe end
