3
INSTALLATION
Measure the TV upper bezel. It must be 3 1/2 inches or less as shown in Figure 1.
Place the DecoFrame front face down on a flat and cleaned surface.
Loosen the thumb screws and move the Horizontal bracket to match the TV upper bezel dimension (Figure 3).
Tighten the thumb screw to lock the Horizontal bracket in place. Do not over tighten the screws.
Lift the DecoFrame up and flip the Velcro straps to the front face to keep them clear of the TV.
Hang DecoFrame onto TV as shown in Figure 1 side view. Correctly, the Horizontal bracket must rest on the
top edge of TV. From the front face, push DecoFrame gently toward the TV to keep it in full contact with TV
bezels. Check the vertical opening of the DecoFrame against the TV image height. The vertical placement must
be centered to one another. Readjust the Horizontal bracket and re-hang the DecoFrame until the vertical
placement become satisfactory.
Hint: Turn on the TV so the visible edges of the image can be used to compare with DecoFrame’s opening.
Move DecoFrame side to side to center the horizontal placement. Check for centered and level and make final
adjustments as needed.

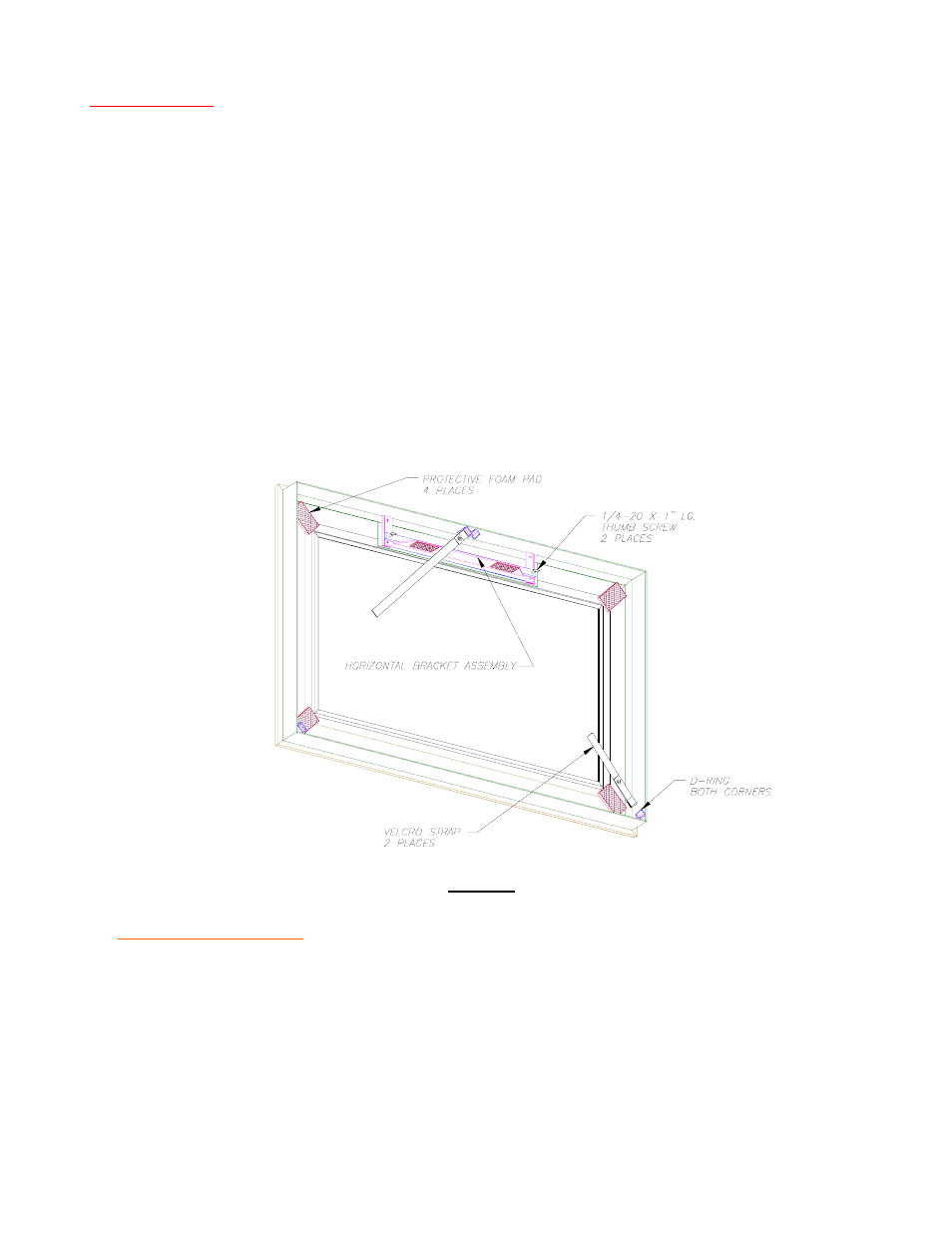

Figure 2
DecoFrame Key Components
IR REPEATER INSTALLATION
Remove DecoFrame from TV; identify and note the location of the TV IR sensor.
Prepare the IR repeater as outlined in the IR REPEATER USER GUIDE included with the kit.
Hang DecoFrame back onto TV; note the TV IR sensor location and matching location on the backside of
DecoFrame.
Remove DecoFrame from TV. Peel off adhesive liner from the back of IR emitter (Figure 4) and attach it to a
location on the backside of DecoFrame that is directly in front of the TV sensor.
