2
FEATURES AND CONSIDERATIONS
⇒ TV MUST BE HUNG TO WALL (WALL MOUNT BRACKETS NOT SUPPLIED) BY INSTALLERS.
⇒ DECOFRAME TO BE ATTACHED TO TV.
⇒ DECOFRAME DOES NOT COMPLETELY COVER SIDES, TOP AND BOTTOM OF TV.
⇒ DECOFRAME REVEALS ACTUAL TV’S VIEWING IMAGE AND COVERING ALL OTHER PARTS OF TV.
⇒ DECOFRAME IS NOT RECOMMENDED FOR TV WITH SIDE OR BOTTOM SPEAKERS.
⇒ DECOFRAME IS SIZE SPECIFIC TO TV’S DIAGONAL.
⇒ DECOFRAME IS EQUIPTED WITH PROTECTIVE FOAM PADS TO CUSHION BEZEL CONTACT.
⇒ IR REPEATER KIT IS INCLUDED.

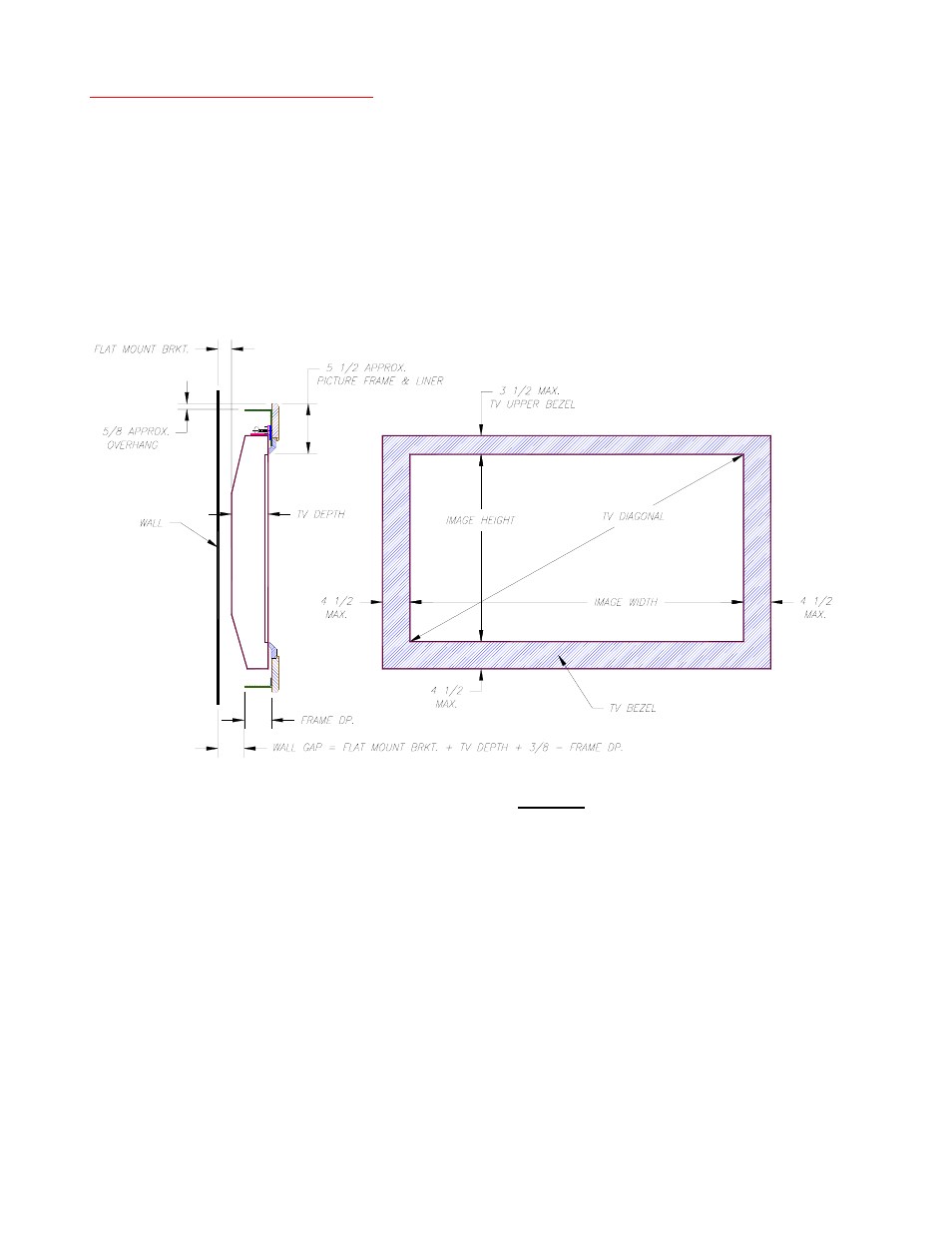

Figure 1
TV Dimensional Requirements
Measure TV’s bezels and be sure that no one side exceeds the maximum dimensions shown in Figure 1.
FRAME DP. For TV sizes 32 through 45 inches diagonal is 3 inches.
FRAME DP. For TV sizes 46 through 65 inches diagonal is 4 inches.
NOTE: The actual TV diagonal is usually less than the listed diagonal by TV manufacturer. Therefore,
DecoFrame opening is slightly larger in this instance.
