Electrical Connections
The Art Screen comes with IR remote control for
operations. It is ready for use; no wiring connections are
required.
Place the IR sensor so that it can be seen by the
transmitter.
Plug the power cord to a 120VAC outlet.
The IR remote control has manual inputs for Home
Automation systems, i.e. AMX, Crestron, etc. See IR
remote control manual (included) for detail information.
The SPDT switch (Figure 3b) may be used for security
purpose; its contacts may be connected to an audible
alarm system or monitoring system. The breach of
security will be activated when the wood frame is
removed.
The normal states of the contacts are shown when the
wood frame is not presented.
Contact Rating: 10Amp, 1/2HP, 125/250VAC
or 6Amp, 30VDC.
Open and Close Limits Setting
The Open limit switch has been properly set for correct stop position. It
should not be adjusted unless a change in the motor or the motor had been
removed for service.
Note each full turn of the limit switch (360 degrees) causes the screen to
travel approximately 1/2 inch.
1.
To lower the closed limit of the Art Screen. Send the Art Screen
down to it closed position. Turn the Close limit socket
counter-clockwise (Figure 5); the Art Screen will advance downward
as each full turn is made. Stop at the desired position.
2.
To raise the closed limit of the Art Screen. Send the Art Screen
down to it closed position. Determine the number of turns
to stop the screen above the desired close limit. Turn the
Close limit socket
clockwise to raise the limit. The motor
will not move for this direction.

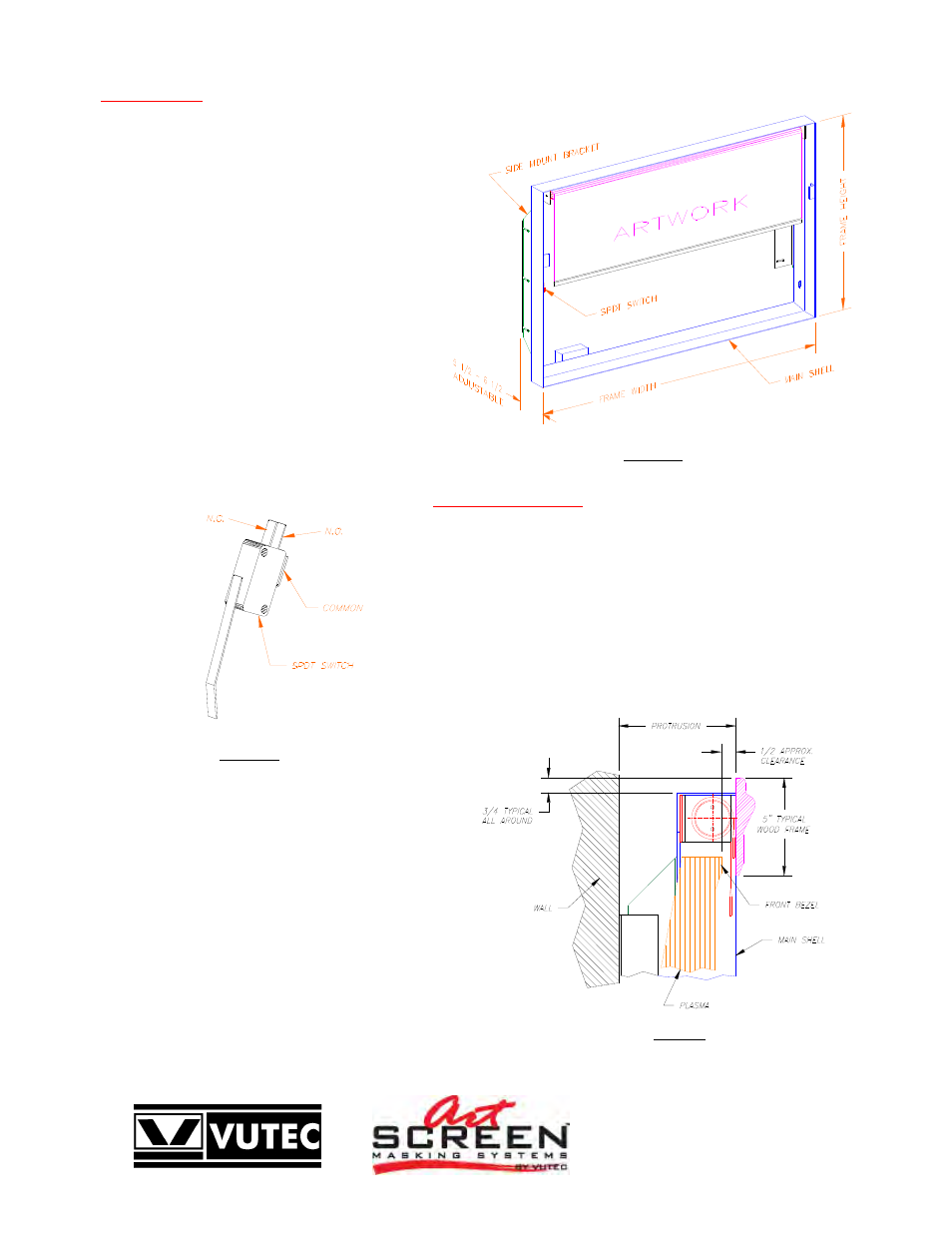

Figure
3b
SPDT
switch
Figure
4
Side
View
Figure
3a
Art Screen Frame
