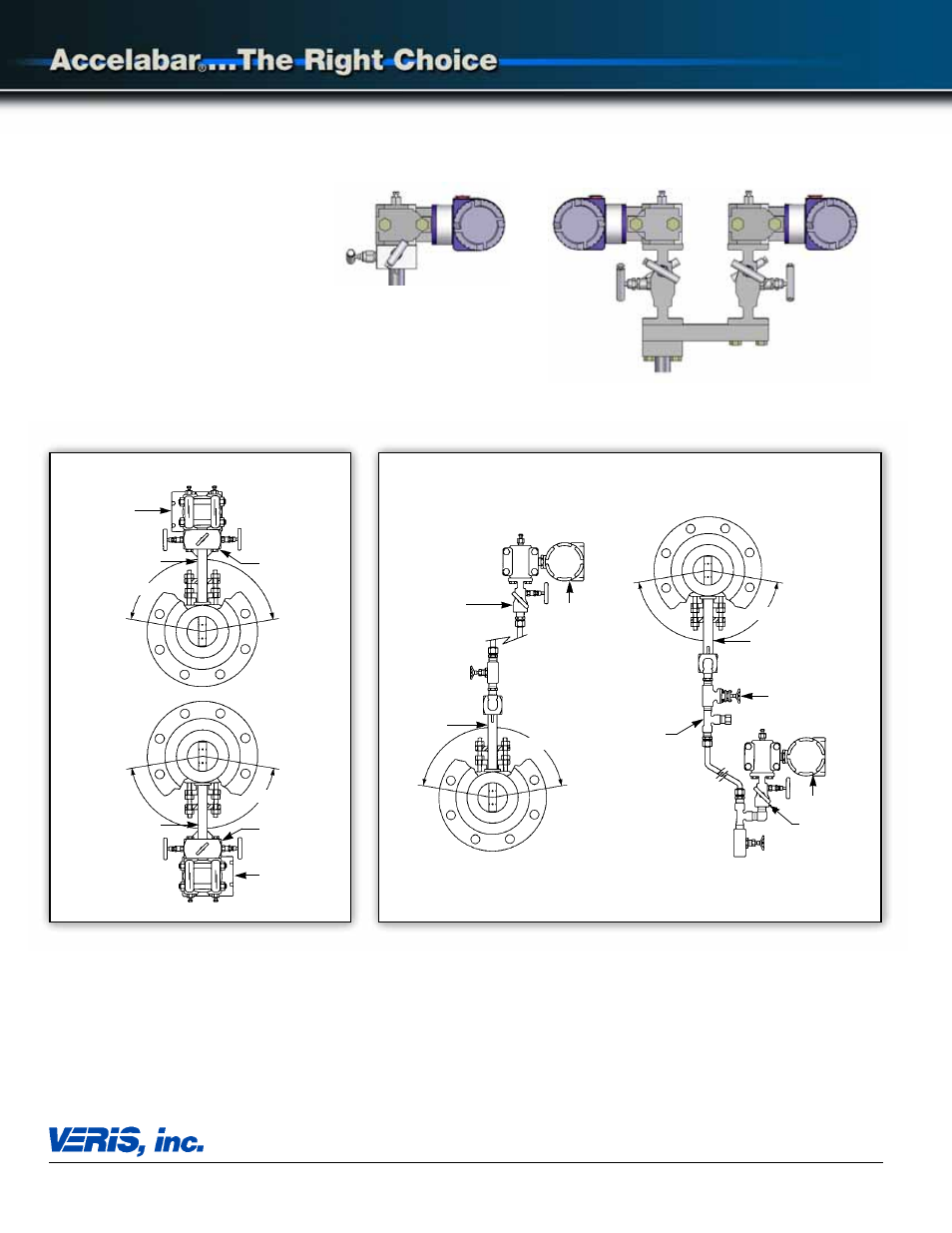

Installation Orientation

Direct Mount

Remote Mount

Transmitter

Transmitter

Verabar

Gas

Mount to

top of pipe

Steam

& Liquid

Mount

to

bottom

of pipe

Gas

Mount to top of pipe

Steam & Liquid

Mount to bottom of pipe

Instrument tubing

& fittings not included

Instrument tubing

& fittings not included

Transmitter

Transmitter

Verabar

Manifold

Manifold

Fill tee

(steam only)

Instrument
valves

Verabar

Manifold
head

Verabar

Manifold
head

6315 Monarch Park Place

Niwot, CO 80503 USA

Phone: 303-652-8550

Fax: 303-652-8552

VB-7100F (6/08)

E-Mail: [email protected]

Website: www.veris-inc.com

Printed in USA

True Performance in Flow Measurement

ISO 9001 Certified

160º Steam

160º Steam

Gas 160º

Gas 160º

Dual Transmitter

Transmitter Selection

Accelabar accuracy is percent
of rate.
The Accelabar maintains
a constant flow coefficient over
a wide range of flow rates and
differential pressures.

DP transmitter accuracy is
percent of scale.
While most
Accelabar installations are equipped
with one DP transmitter, some applications requiring superior accuracy
over an extreme DP turndown may require a dual DP transmitter
installation.

Single Transmitter
