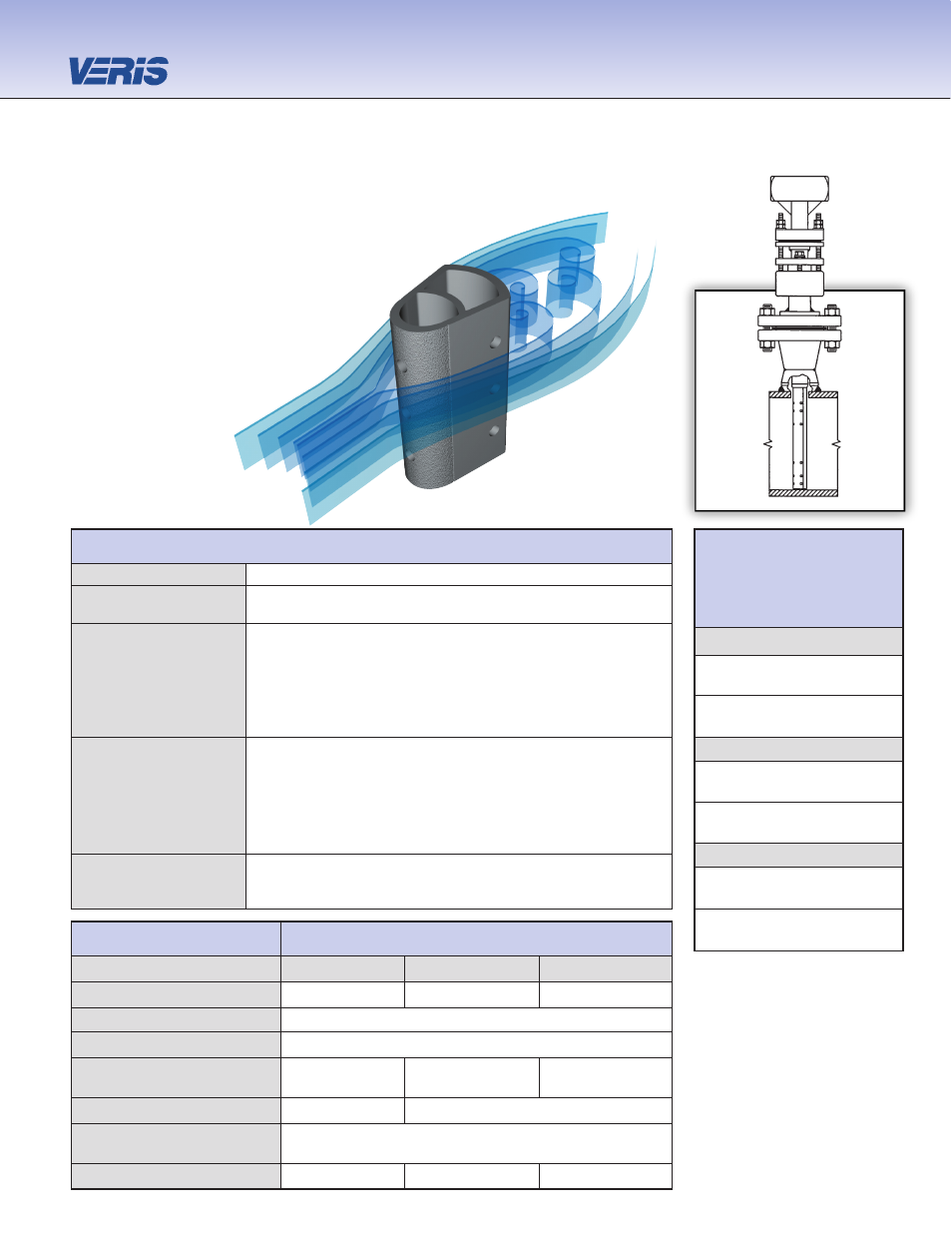

Veris Verabar V550 Spec Sheet - Manual

Flanged Models
V550 Spring Lock
Flanged Connection with
Packing Gland
Differential Pressure Flow Sensors
Verabar
®
Temperature
Pressure
Limits
(ANSI Class)*
150#
275 psig @ 100°F
(19 Bars @ 38°C)
80 psig @ 800°F
(5.5 Bars @ 426°C)
300#
720 psig @ 100°F
(49.6 Bars @ 38°C)
410 psig @ 800°F
(28.3 Bars @ 426°C)
600#
1440 psig @ 100°F
(99.3 Bars @ 38°C)
825 psig @ 800°F
(56.9 Bars @ 426°C)
V550 Flanged Spring Lock
Pipe Connection Flanged
Mounting Type
Spring loaded sensor mounted on flange with
packing gland
• Blow-out and leak proof design
• Preloads sensor to opposite wall
Features and
• Four times stronger than conventional mountings
Benefits
• Eliminates need for opposite end support
• Compensates for changes in pipe diameter
due to pressure, temperature or mechanical force
• Can mount to existing flanges
• Air
• Natural gas
• Water (raw, cooling, feedwater)
Applications • Hydrocarbon liquids and gases
• High velocity fluids
• Hazardous fluids
• Steam
Special Designs —
• Custom mounting, lengths, materials,
Consult Factory
instrument connections, etc.
• Short straight run
Model Specifications V550
Sensor Code 05 10 15
Sensor Diameter 7/16” (11mm) 7/8” (22mm) 1-3/8” (35mm)
Accuracy ±1% of flow rate; ±0.5% if calibrated
ANSI Class* 150#, 300# and 600#
Pipe Size
2”- 6” 6”- 42” 12”- 60”
(50mm -150mm) (150mm -1050mm) (300mm -1500mm)
Instrument Connection 1/2” NPT 1/2” NPT or Direct Mount
Components Furnished
Spring lock mounting assembly, weld coupling,
weldneck flange, gasket, studs & nuts
Flange Size 1” 1-1/2” 2”
Model
V550
The Most Accurate and Reliable Technology
for Measuring Gas, Liquid and Steam…
Developed from aerospace technology, the Verabar
®
averaging pitot flow sensor provides unsurpassed
accuracy and reliability. With its solid, one-piece
construction and bullet shape, the Verabar
makes flow measurement leak proof
and precise.
The unique sensor shape
reduces drag and flow
induced vibration.
The location of the
low-pressure ports
eliminates the potential
for clogging and improves
signal stability.
* DIN and JIS flanges available. Consult factory.
