Comparative Analysis vs. Other Flow Meters

The Accelabar fills the need not presently being filled
by other flow meters for applications that:

• Do not have sufficient velocity to produce a readable

signal or sufficient turndown

• Require the highest accuracy over an extended range

• Have little or no straight run piping before the meter

The Accelabar performance
characteristics far exceed
those of other DP meters,
vortex meters and many
other flow meters.

These charts show the actual
performance characteristics
of the Accelabar versus other
flow meters based on the
following flow conditions:

4

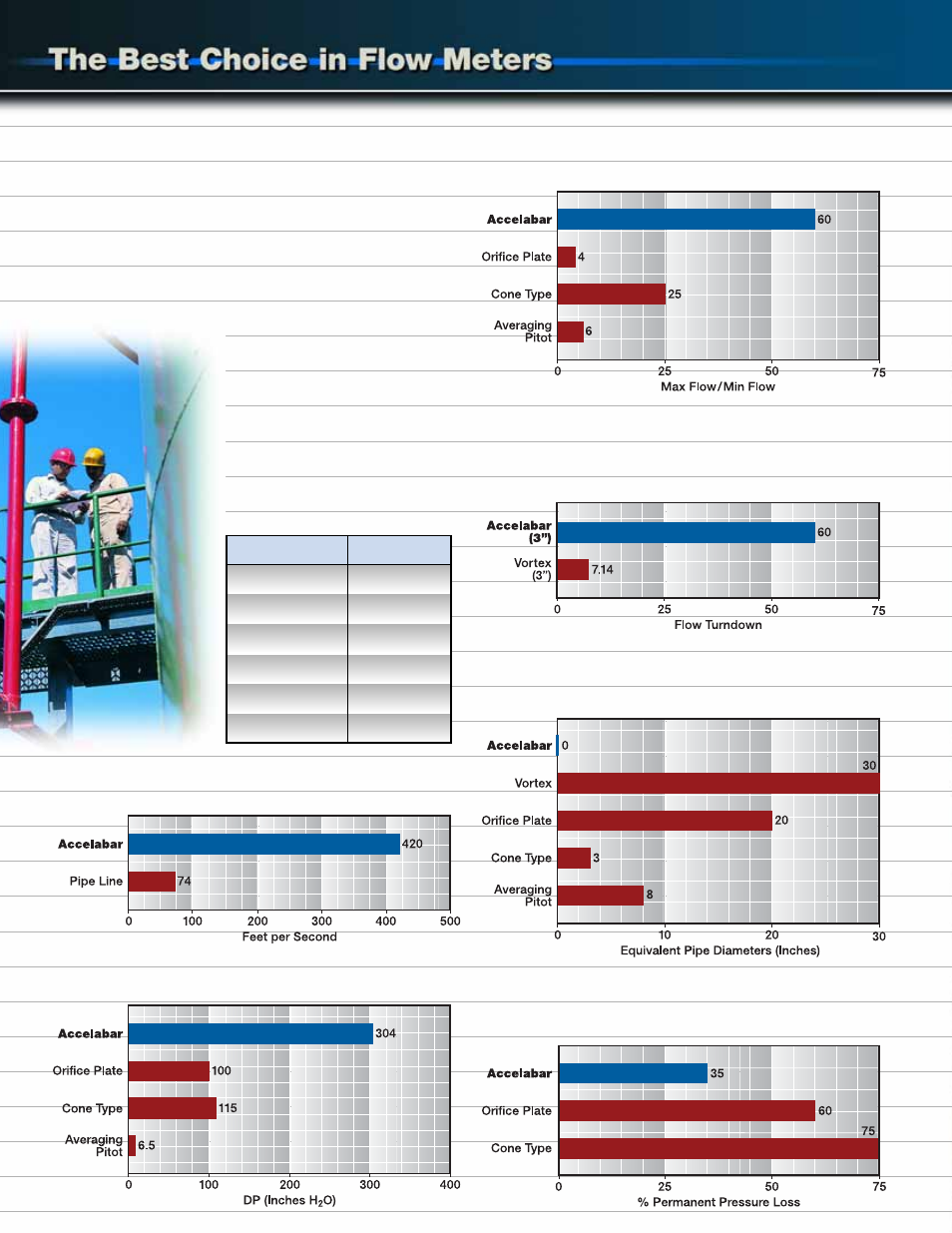

Accelabar Increased Velocity

Fluid Velocity — Pipe Line vs. Accelabar Throat

Flow Turndown

Accelabar vs. Vortex

Flow Turndown

Maximum & Minimum

Minimum Straight Run Requirements

Permanent Pressure Loss

DP at Maximum Flow

Inches H

2

O — 3” Natural Gas 60,000 SCFH

Fluid

Natural Gas

Pipe Size

3” Sch 40

Max Flow

60,000 SCFH

SG

0.6

Pressure

50 psig

Temperature

70°F

Pipe Line Velocity

74 ft/sec
