Test Specifications*

Pipe Size:

3” sch 40

Fluid:

Air

Flow Rate:

145 ACFM

Max Pressure:

60 psig

Max Temperature: 75°F

Results

The Accelabar produced a DP of
255.5” H

2

O at 145 ACFM. An accuracy

of ±0.75% was maintained over a
Reynolds Number range of 65 to 1.
No other flow meter is capable of this
operating range.

*Independent, NIST traceable tests were performed

as follows:

• Air tests in 3”, 4”, 6” and 12” pipes
• NIST traceable water tests
• Large turndown natural gas testing
• Short straight-run testing

Consult factory for a copy of certified tests.

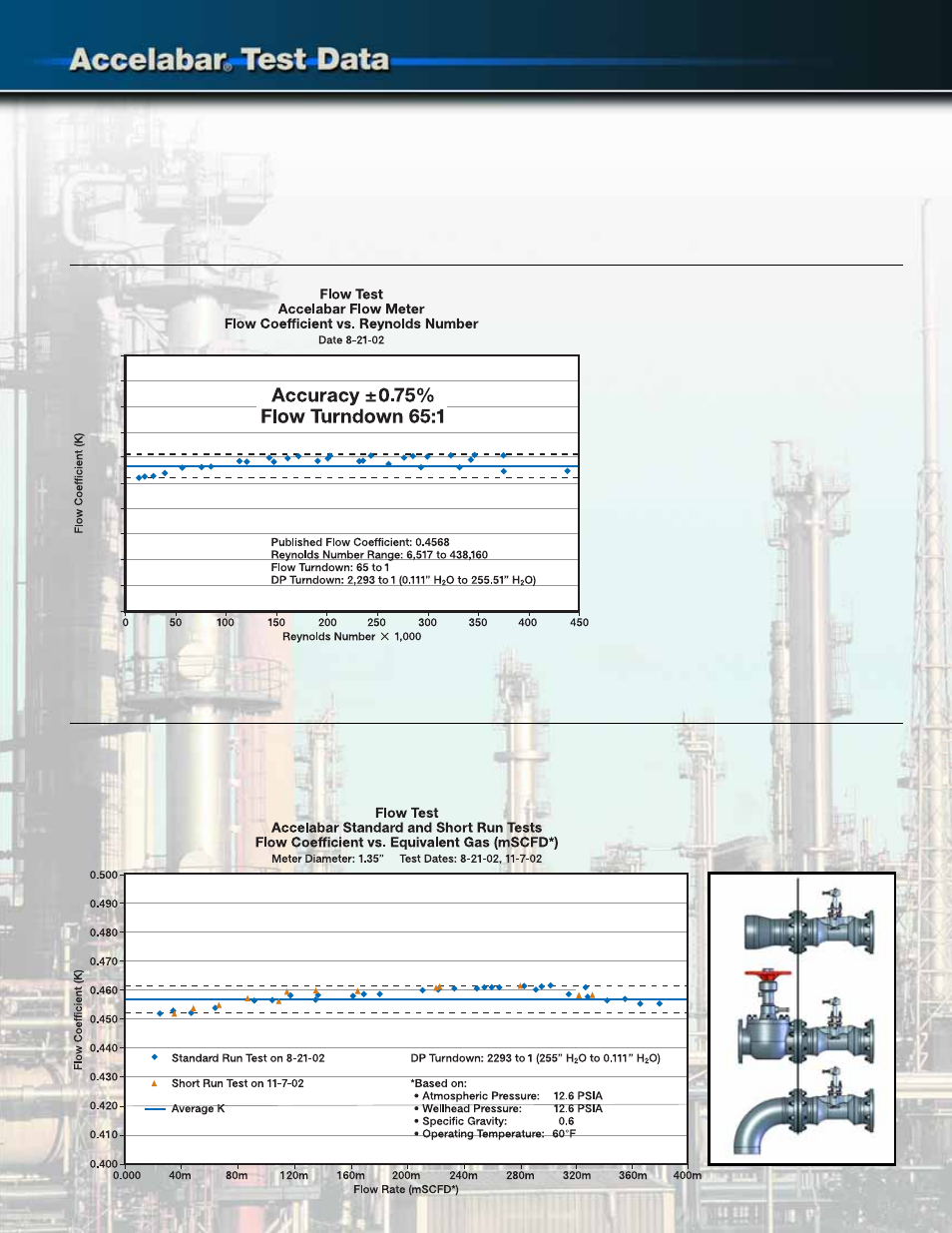

Turndown Test

Test Specifications

The Accelabar was tested immediately downstream of a valve, tee and expander
assembly with no straight run upstream.

Results

The short run test plotted
with the standard straight
run test verifies there is no
shift in the flow coefficient.

The Proof Is In The Data

Many flow meters claim high accuracy and rangeability or turndown. However, few manufacturers define their
limitations and even fewer can support it with actual test data. The tests below show the performance capabilities
of the Accelabar.

No Straight Run Test Comparison

0.500

0.490

0.480

0.470

0.460

0.450

0.440

0.430

0.420

0.410

0.400
