This soldering station is temperature-controlled: sophisticated circuitry regulates the temperature between 150°C
and 450°C.
The unit is a 48W soldering station with a temperature sensor in the ceramic heating element. The heating element
is supplied with the necessary power via a safe 24V transformer, while the bit is completely isolated from the mains.
The control circuitry ensures that devices sensitive to static charges cannot be damaged during the soldering
process. The included bit consists of a copper core that is protected by a steel coating.
INTRODUCTION
FRONTPANEL
Soldering station
SOLDERING STATION

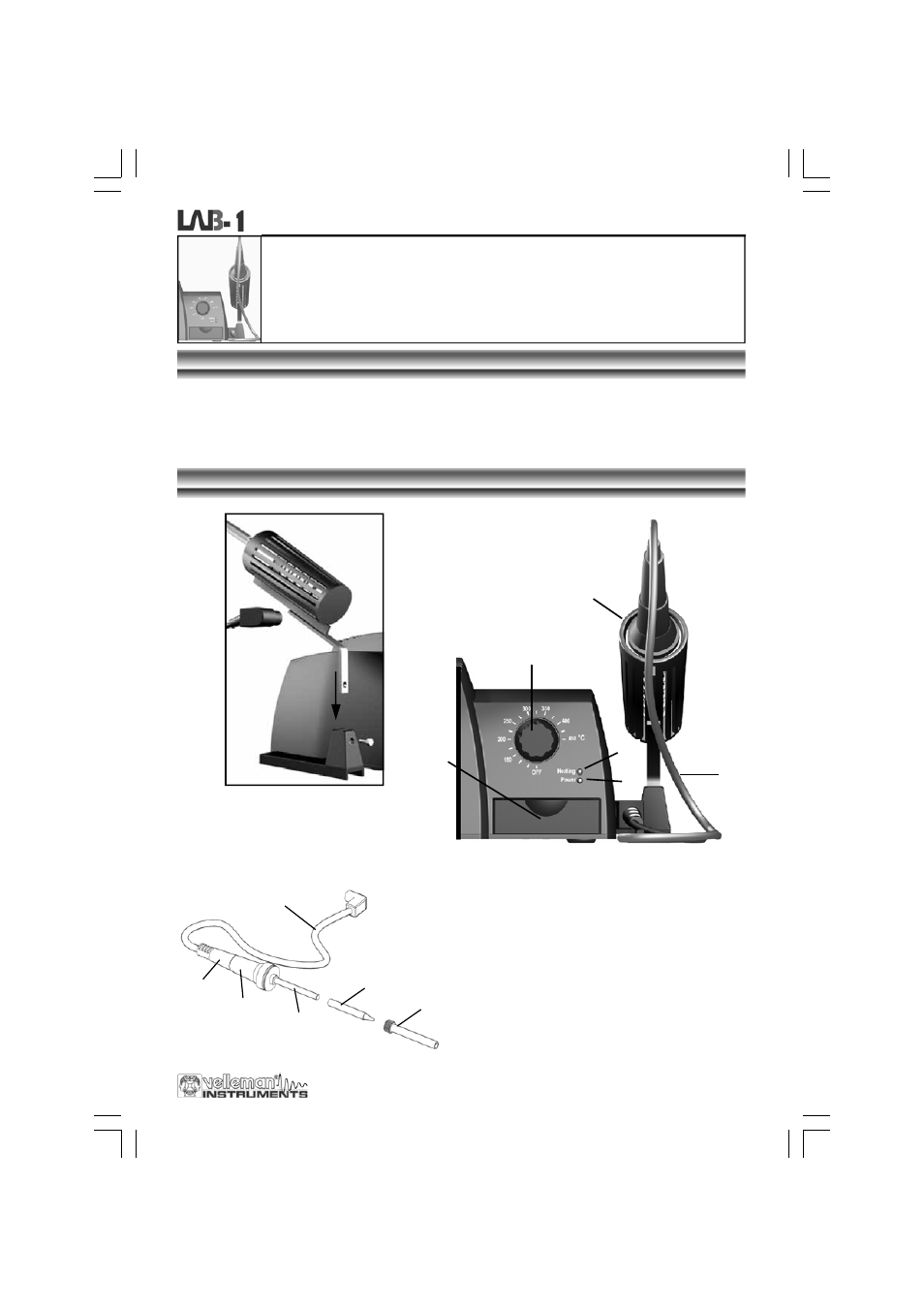

DESCRIPTION OF THE CONTROL PANEL
1. Heat safe rubber cable
2. Temperature control
3. Tray with sponge
4. Iron stand (fixed to main unit)
5. Bit
6. Bit
holder
7. Heating indication LED
8. Handle
9. Antiskid
rubber
10. Heating element with incorporated temperature
sensor
11. Power indication LED
1
2
3
4
7
11
5
6
8
9
10
1
BEFORE USE, INSERT THE SOLDERING IRON
HOLDER IN THE BASE AND TIGHTEN IT WITH
THE INCLUDED SCREW
