Code description, Service codes – Spicer CTIS (Central Tire Inflation System) Troubleshooting Guide User Manual
Page 56
53
Service Codes
No Indication or DDM – Dashes "--" (Implementation Specific) (Codes 53, 57, 58, 67, 68)
Type: Miscellaneous Output
(Spare1, Spare2, Spare3, Warning Lamp, Buzzer)
Code Description
A “Miscellaneous Output Fault” code indicates an electrical
fault in an OEM specific spare output, warning lamp or buzzer.
System operation is not affected when these faults are
detected.
The troubleshooting tree first tests that the associated ECU
harness pin is not shorted to ground and is continuous to the
component. If continuity exists, the component must be
repaired or replaced.
See "Troubleshooting Tips" for general guidelines on system
diagnostics.
System Mode
Condition
Possible Causes (listed in order of likely occurrence)
Normal Operation
Miscellaneous output failed
electrical diagnostic test
• Spare output wire shorted to ground
• Spare output wire shorted to power
• Faulty component
• Faulty ECU

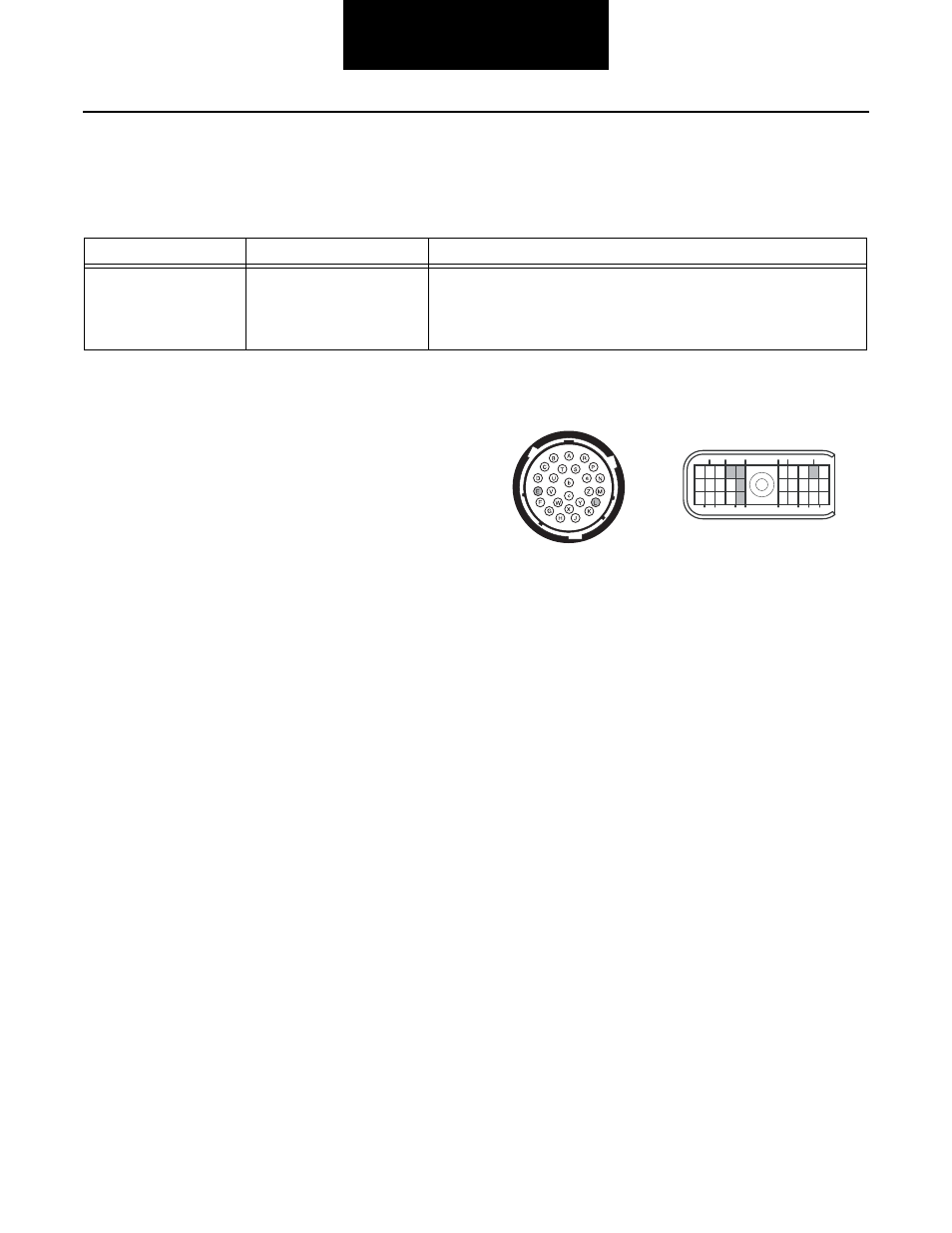

ECU Harness Connector
A B C D E
A B C D E
A B C D E
F G H J K
3
2
1
F G H J K
F G H J K
