SPICER STEER AXLE SERVICE PARTS
10

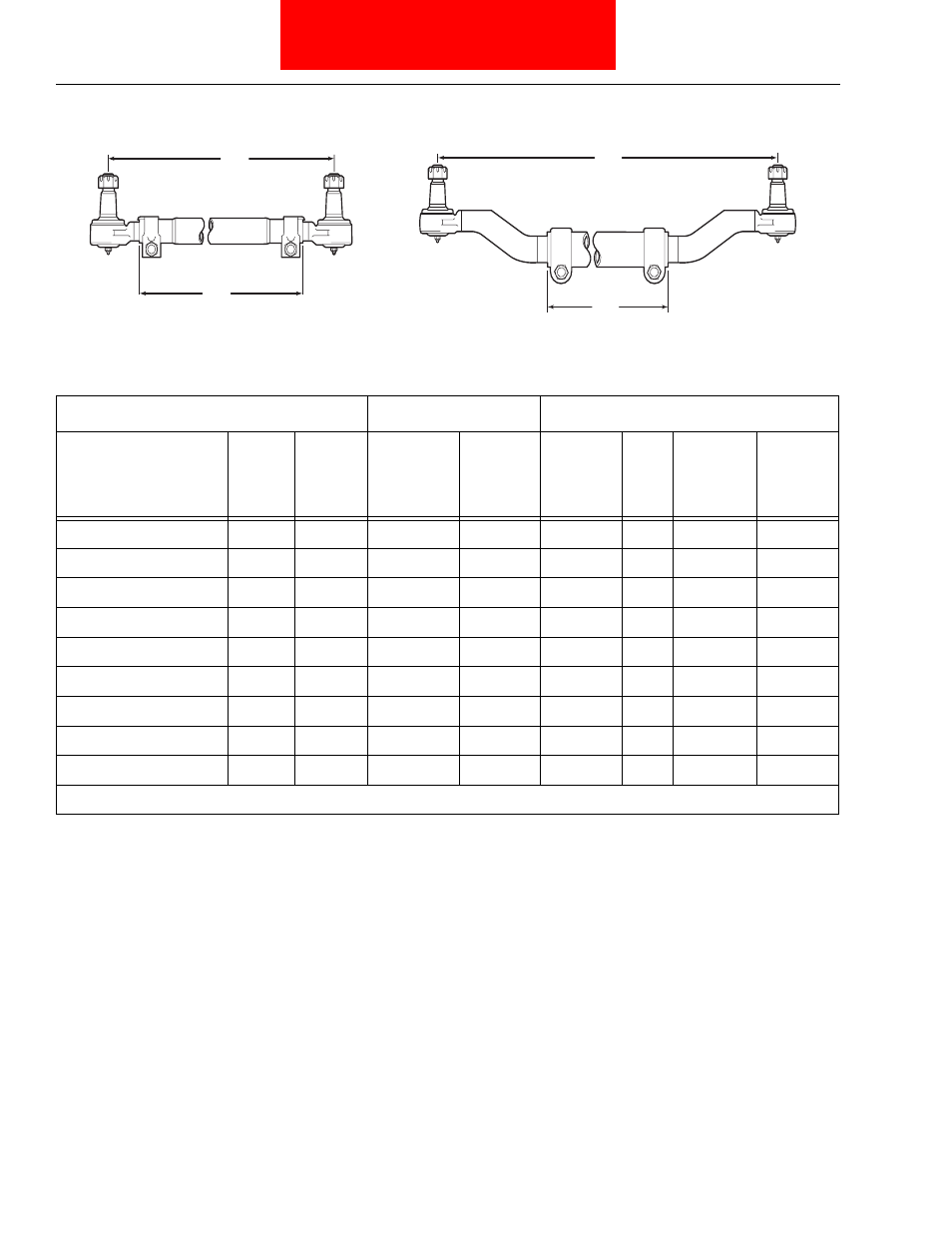

E-1000I, E-1002I, E-1200I, E-1202I, E-1320I, E-1322I, E-1460I, E-1462I Tie Rod Assemblies
TIE ROD END ASSEMBLY - COMPLETE CROSS TUBES TIE ROD ENDS
E-1000I, E-1002 I ,
E-1200I, E-1202I,
E-1320I, E-1322I,
E-1460I, E-1462I
ASSY
LENGTH
"A”
TUBE
WIDTH
CROSS
TUBE ASSY
(includes
clamp)
CROSS
TUBE
LENGTH
“B”
LH Side Type RH Side End Length
818462 65.90 1.53 N/A 60.00 817018 S 817019 6.00
970578 65.90 1.75 N/A 53.50 970579 D 970580 9.26
817755 66.50 1.90 818473 59.00 818472 S 818471 7.50
818704 66.50 2.00 N/A 44.25 818706 D 818705 14.28
815326 66.90 1.75 N/A 60.00 817018 S 817019 6.00
971762 67.60 1.75 N/A 56.00 970579 D 970580 9.26
971092 68.50 1.90 971093 61.00 818472 S 818471 7.50
971443 68.90 1.66 971444 62.00 817018 S 817019 6.00
971088 69.75 1.66 971089 62.50 817018 S 817019 6.00
D = Drop Socket Design S = Straight Design
“A”
“B”
“A”
“B”
* Drop-Center Application
