Driveshaft
5.

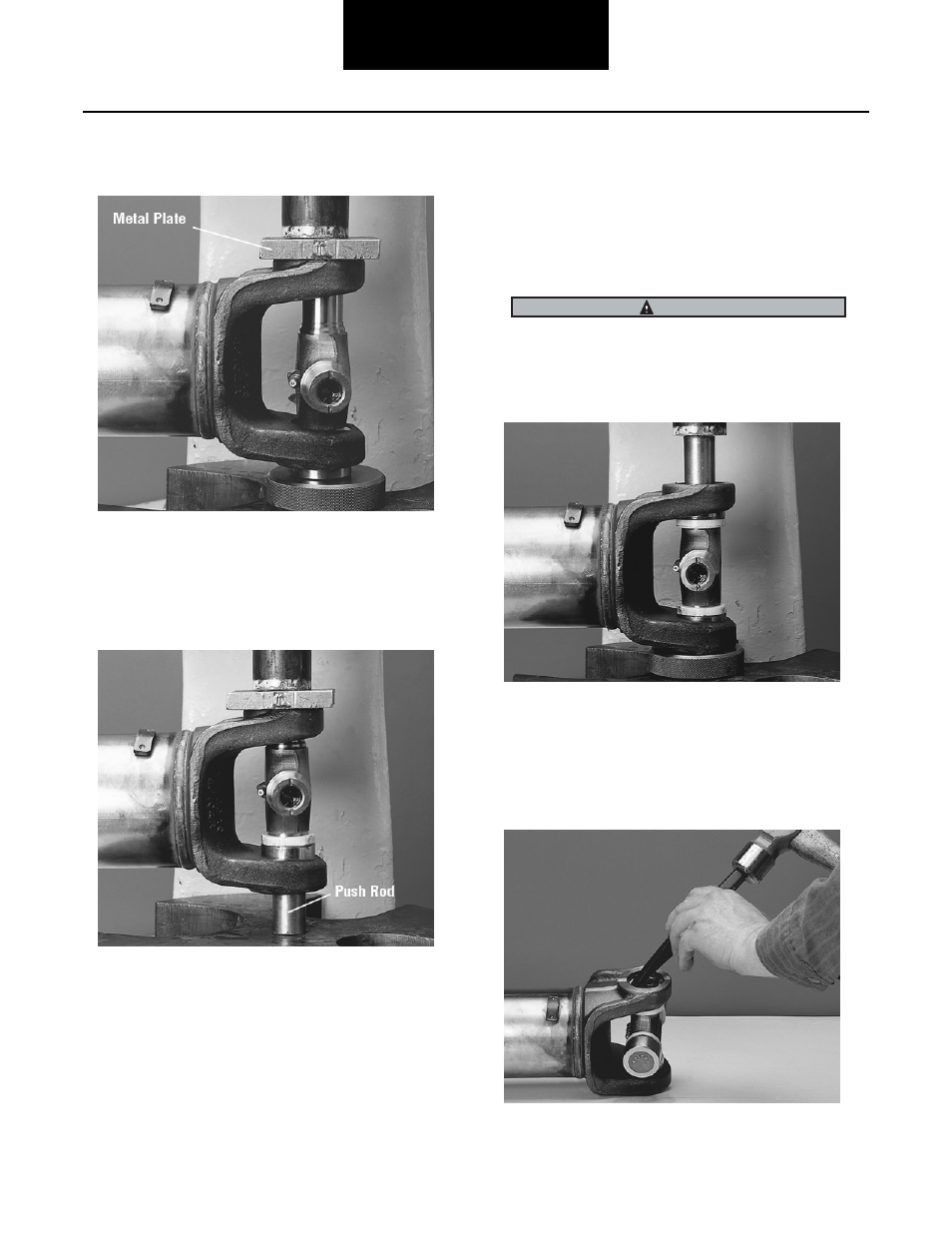

Place a push rod that is smaller than the diameter of
the bearing cup assembly under the bearing cup
assembly and continue pressing into the yoke cross
hole until far enough to install a snap ring.
6.
Remove yoke from arbor press. Install a snap ring
using snap ring pliers.
7.
Flip yoke 180 degrees. Place another bearing cup
over trunnion diameter and align it to yoke cross
hole. Align yoke in arbor press with previously
installed bearing cup assembly resting on base of
press. Place a push rod that is smaller than the bear-
ing cup assembly on top of the bearing cup assem-
bly. Press bearing cup assembly into the yoke cross
hole until far enough to install a snap ring.
Bearing caps must be aligned with the trunnion before
pressing to avoid bearing roller and trunnion damage.
8.
Remove yoke from arbor press. Install a snap ring
using snap ring pliers.
9.
Seat installed snap rings into grooves using a small
chisel or punch.
CAUTION
