Tire Inflation and Monitor System
7
Quick Part Number Replacement Listing
11 676374 O-ring, rotary joint to hubcap O-ring .468 ID #3-906
4 N/A Tool handle, universal (Kent Moore J-8092) SPX Kent Moore Tools: 800-345-2233
5 N/A Oetiker clamp tool (Grainger 4E607)
Old Part
Number
Current Replacement Part
Number Description Notes
676271 676609 Wiring Harness Requires ECU 676631 & Pressure Sensor 676495
676272 676609 Wiring Harness Requires ECU 676631 & Pressure Sensor 676495
676459 676473 Axle hose assy. May require shortening
676470 676609 Wiring Harness Requires ECU 676631 & Pressure Sensor 676495
676471 676609 Wiring harness Requires ECU 676631 & Pressure Sensor 676495
676553 676631 ECU
676559 676651 TIMS Controller Assy.
676474 676631 ECU Requires Pressure Sensor 676495
676475 676651 TIMS Controller Assy.

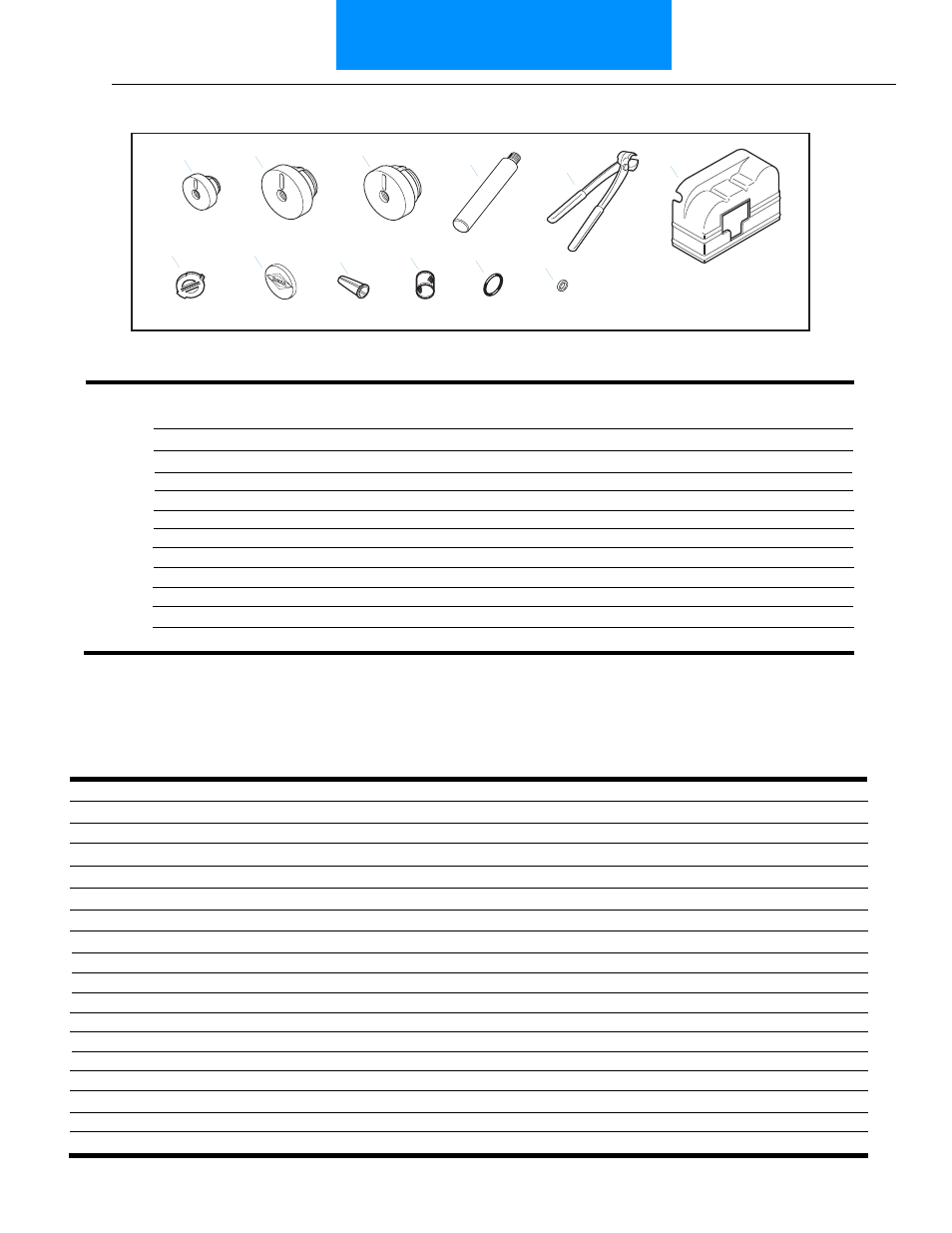

F Service Parts & Tools
1 676461 Tool, plug installation, 1.75”
2 676462 Tool, plug installation, 2.50”
3 676463 Tool, plug installation, 2.75”
1 2 3
4
10
9 11
12
F
6
7 8
Note 1: Used only on hose p/n 676387, 676388, 676481, and 676482
9 676464 Filter, PCU (cone shaped) Used on p/n 676403 PCU only
10 676678 Filter, PCU (cylidrical shaped) Used on p/n 676467 PCU only
8 676645 Oil hubcap plug Used on p/n 676401 & 676412 only
5
7 676666 PCU filter cap
12 676472 Seal, tire hose (to valve stem) O-ring square cut .250 ID - See note 1
6 676665 PCU Cover
o
676632 676651 TIMS Controller Assy.
TIMS TM Parts - Service Components & Tools
673221 676505 Pressure Sensor Use only with ECU 676474
676403 676467 PCU Requires bracket 676644 and assoc. hardware
676387 676669 Tire hose Replace all associated hoses & fittings (see pg 6)
676388 676648 Tire hose Replace all associated hoses & fittings (see pg 6)
676389 676671 Tee Fitting Replace all associated hoses & fittings (see pg 6)
676481 676649 Tire hose Replace all associated hoses & fittings (see pg 6)
676482 676670 Tire hose Replace all associated hoses & fittings (see pg 6)
676457 676673 90 Fitting Replace all associated hoses & fittings (see pg 6) o
Notes Description Part No. Item Category
