Tire Inflation and Monitor System
6

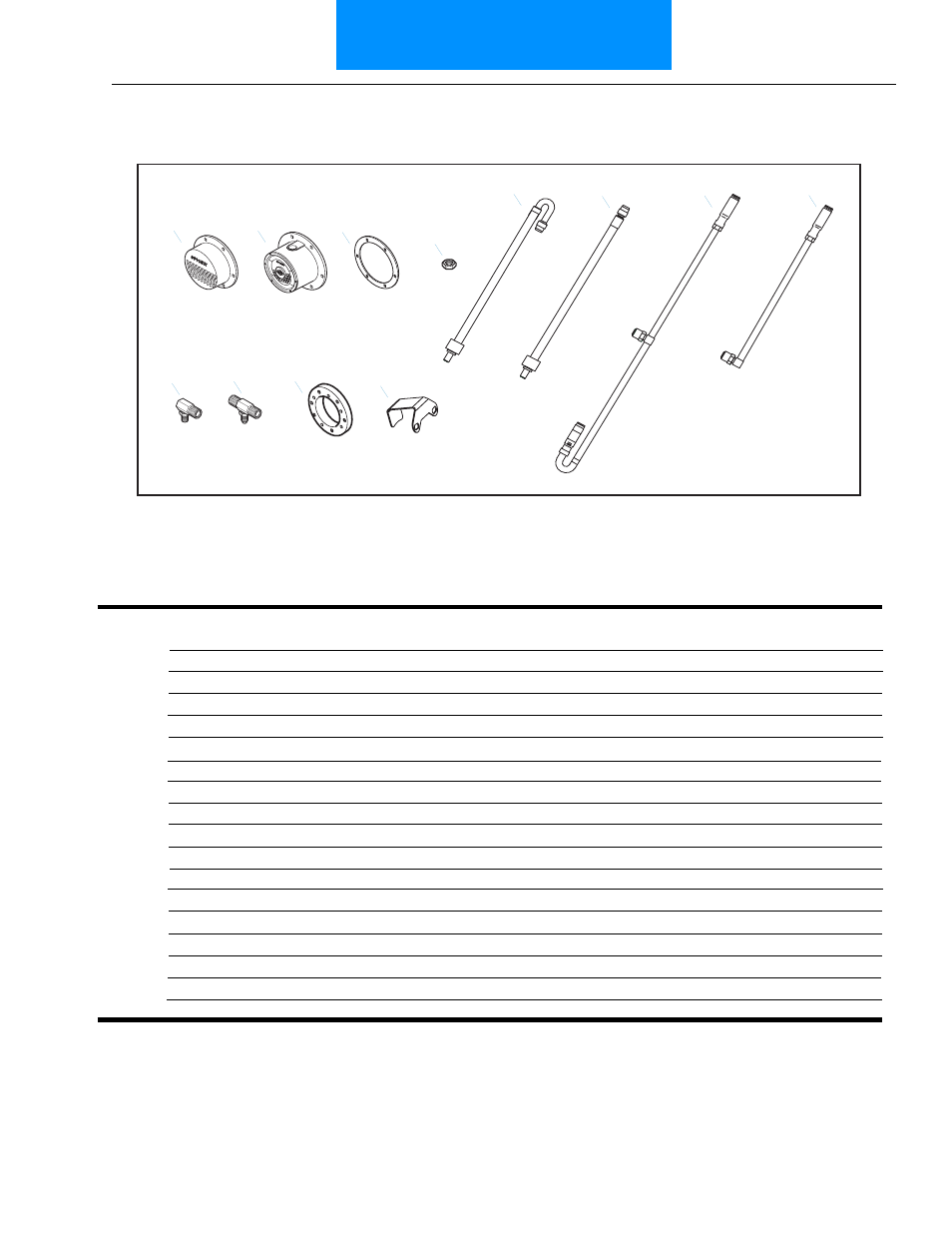

E Wheel End Components
1 676400 Hubcap, 5.5” B.C., grease - D22
1 676411 Hubcap, 6.75” B.C., grease - P22
2 676401 Hubcap, 5.5” B.C., oil - D22
2 676412 Hubcap, 6.75” B.C., oil - P22
3 M10HG138 Gasket, 6.75” B.C. - P22 Use with hubcaps 676411 and 676412
4 676378 Jam Nut - 5/8”-18 Secures RJ fitting to Hubcap
5 676669 Tire hose-dual,180 end - See note 1 Duals, outer tire hose 22-24” Wheel o
5 676670 Tire hose-dual,180 end - See note 1 Duals, outer tire hose 17.5-19.5” Wheel o
6 676648 Tire hose - dual, straight end - See note 1 Duals, inner tire hose 22-24” Wheel
6 676649 Tire hose - straight - See note 1 Duals 17.5-19.5 inner / Wide base single
7 676641 Tire Hose Assy - See note 2 For 22.5-24” Wheels
7 676642 Tire Hose Assy - See note 2 For 17.5-19.5” Wheels
8 676643 Tire Hose Assy - See note 2 For Wide Base Single Wheels
9 676673 90 fitting, hubcap to hose Used on item 6, wide base singles only
12 676672 Wheel End Guard
5 6 7 8
O IL
L EVE L
O I L L EVEL
4
9 10
1 2 3
11
12
E
Use with hubcaps 676400 and 676401 3 969143 Gasket, 5.5” B.C. - D22
Note 1: Items 5-6 have the check valves located at the hubcap connection end.
Note 2: Items 7-8 have the check valves located at the valve stem end.
10 676671 Tee fitting, hubcap to hose Used on items 5,6 duals only
11 673500 Spacer - 5.50 B.C., .5” thick Required for Pro-torque nut and short hub
o
TIMS TM Parts - Wheel End Components
Notes Description Part No. Item Category
