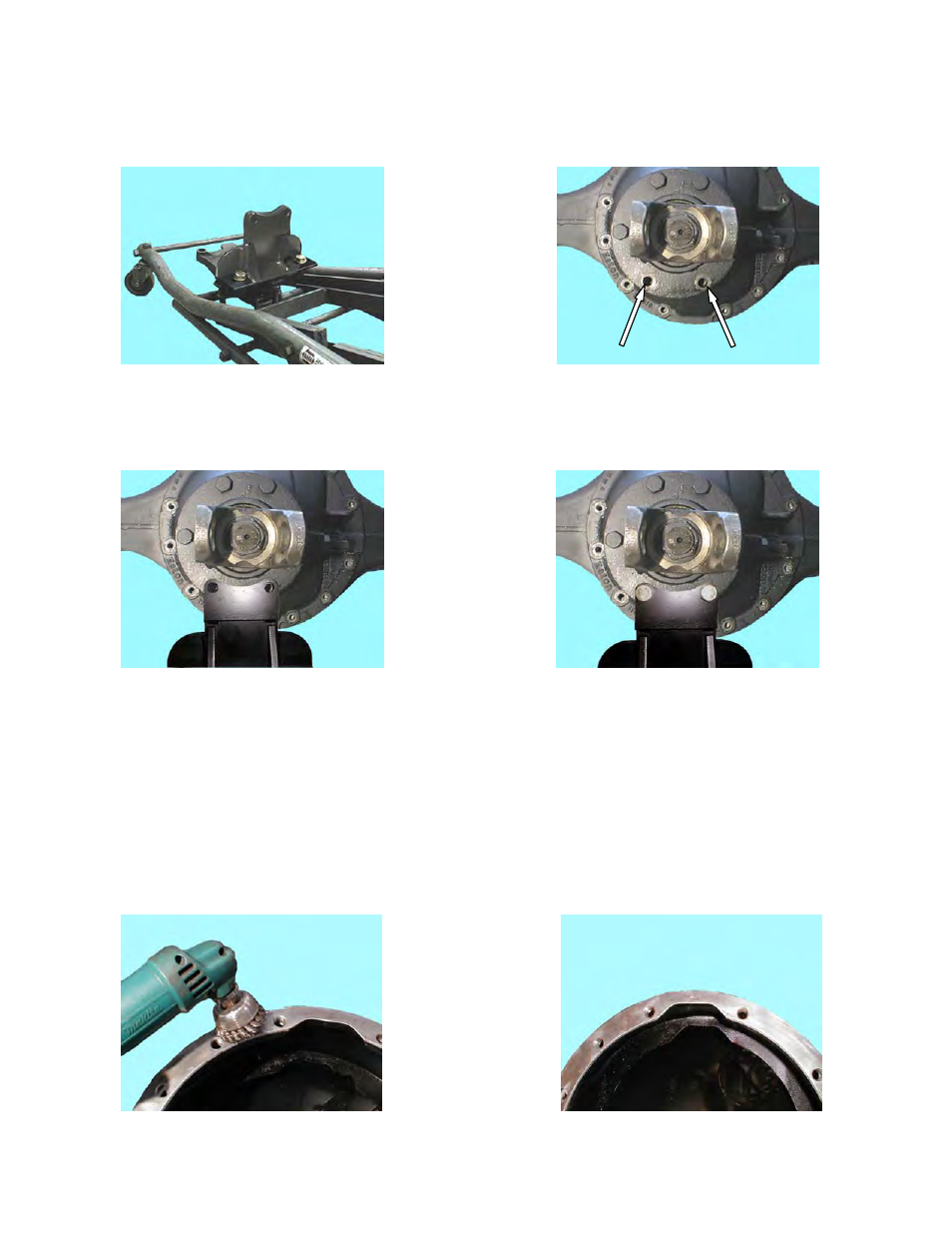

Carrier Removal
1. Mount the adapter plate to a transmission jack. Remove pinion cage cap screws at 5:30 and 7:30 positions.
Mount Adapter Plate to Transmission Jack Remove Bottom Two Pinion Cage Bolts
2. Position the adapter plate and adjust transmission jack table to alien bolt holes.
3. To fasten the adapter plate to the pinion cage install 2 HCS ¾” x 3” capscrews and snug with impact gun.
Position Adapter Plate
Install ¾” x 3” Capscrews
4. Remove remaining carrier to housing capscrew and carefully remove the carrier assembly.
Carrier Flange and Housing Ring Cleaning
Note: Before installing new fastener hardware or the carrier assembly, inspect the axle housing visually for
cracks, nicks or burrs on all machined surfaces. It is important that all surfaces are cleaned properly.
1. Use a wire wheel to remove any paint, old sealant or oil from the housing and carrier mounting surfaces. Wipe
surfaces down with cleaning solvent to remove any residual oil or dirt.
Wire Wheel Surfaces
Check for Nick, Cracks and Contamination
