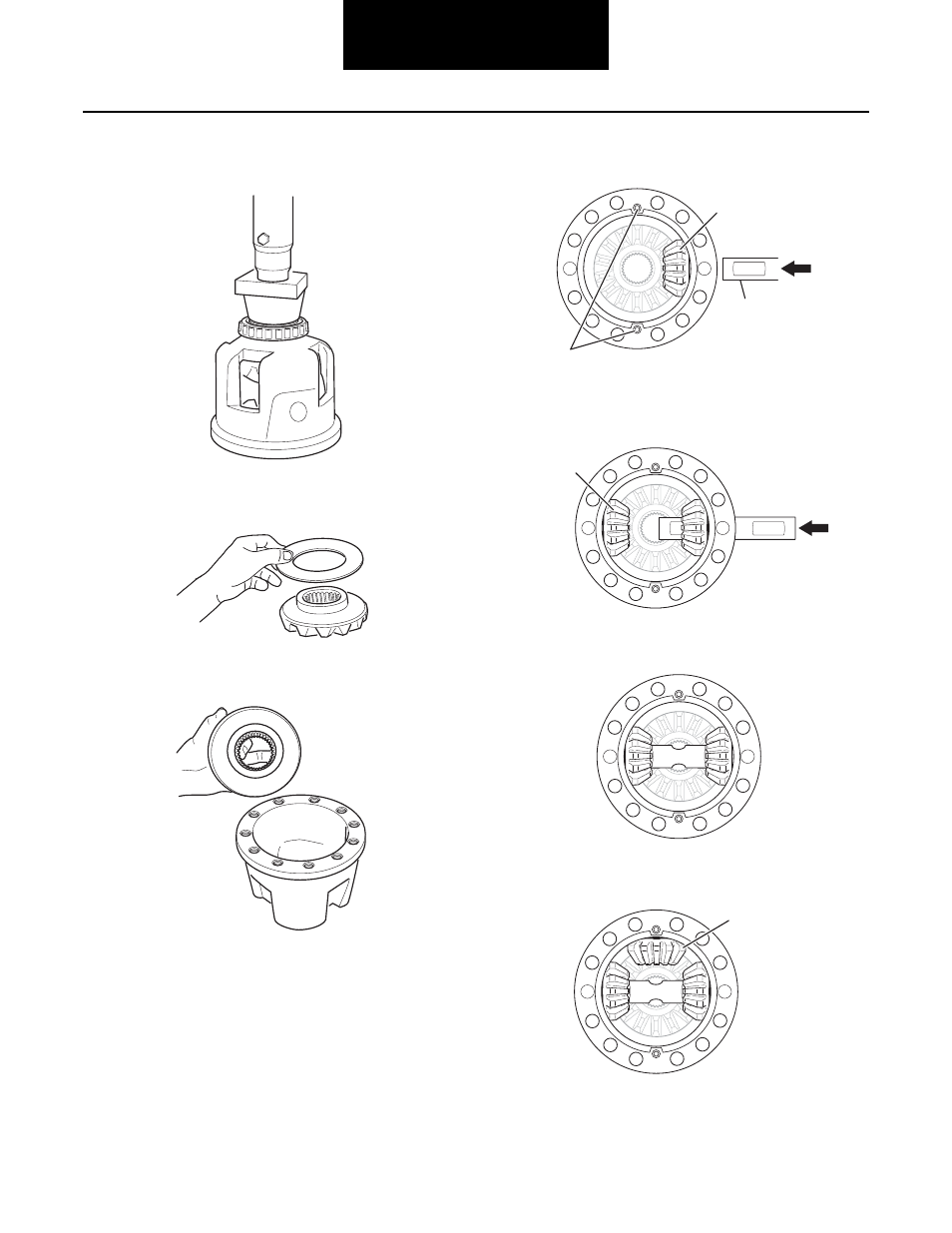

Wheel Differential Assembly
Assemble Wheel Differential
10. Press new bearing cone on the differential case.
11. Place thrust washer on the side gear. Lubricate both
sides of the thrust washer before installing.
12. Install the side gear and thrust washer in the differ-
ential case.
13. Start the full differential shaft into the shaft bores in
the case that does not have a locking pin hole.
14. Install a side pinion and thrust washer and push the
shaft through the side pinion.
15. Install the side pinion and thrust washer to the other
side of the full shaft.
16. Install a side pinion and thrust washer on the half
shaft side.
Full
Differential
Shaft
Side Pinion
and Thrust
Washer
Locking
Pin Holes
Side Pinion
and Thrust
Washer
Side Pinion
and Thrust
Washer
