Drive Pinion
Drive Pinion
5. Place carrier assembly into a press, place a 2" x 6"
x 6" wood block under the pinion. This will ensure
that when the pinion is pressed free from the bear-
ings the pinion will not be damaged.
6. Use the proper pressing tool to press the end of
the pinion until free from the pinion bearings.
The bearing spacer will be reused or used as a starting
point when resetting the pinion bearing preload. Do not
discard this part.

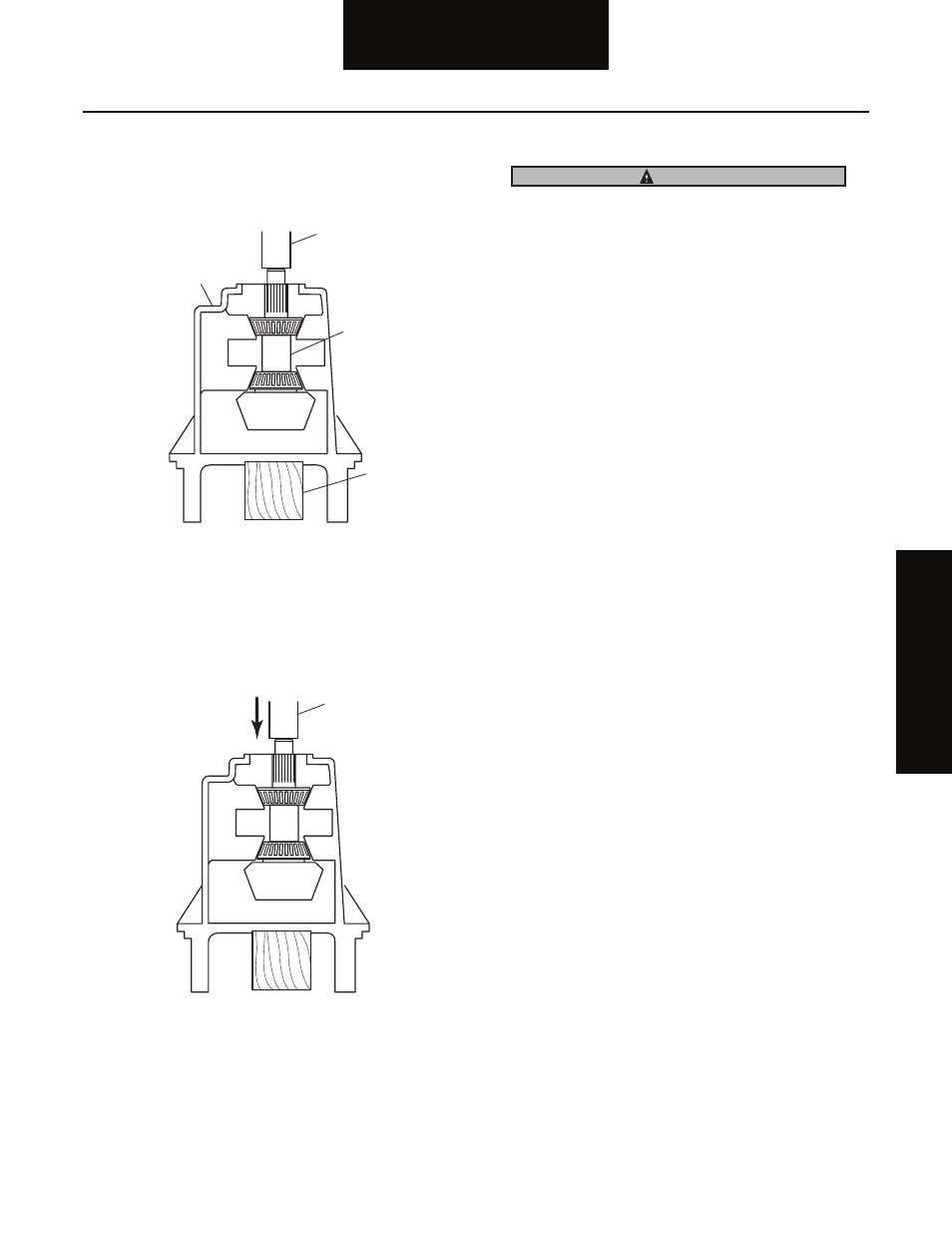

1 - Carrier Assembly
2 - Press
3 - Pinion
4 - Wood Block
2
1
3
4
1 - Press
1
IMPORTANT
