7

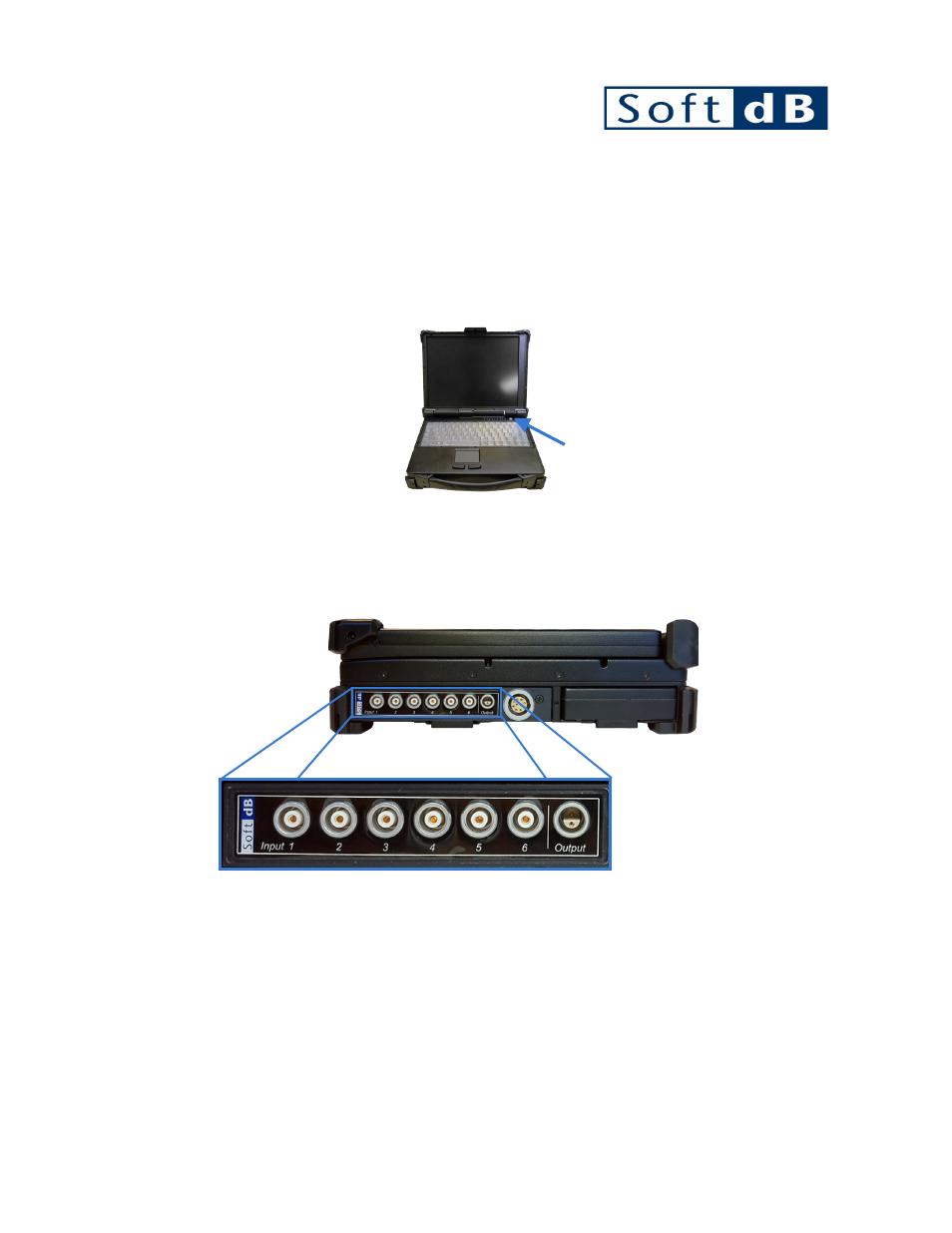

3 Quick Start

Step 1

Start up

1)

Turn on the laptop by pressing the power button.

2)

Once Windows® started, launch the OBSI software from the start menu.

Step 2

Connexions

1)

Connect the microphones to the DSP input connectors using appropriate cabling:

Channel 1:

Leave unconnected,

Channel 2:

Tachometer,

Channel 3:

Leading Edge Probe – Mic A,

Channel 4:

Leading Edge Probe – Mic B,

Channel 5:

Trailing Edge Probe – Mic A,

Channel 6:

Trailing Edge Probe – Mic B.

Right Side
