6 Input Setup
Click the
button on the main interface to launch the Input Setup interface.

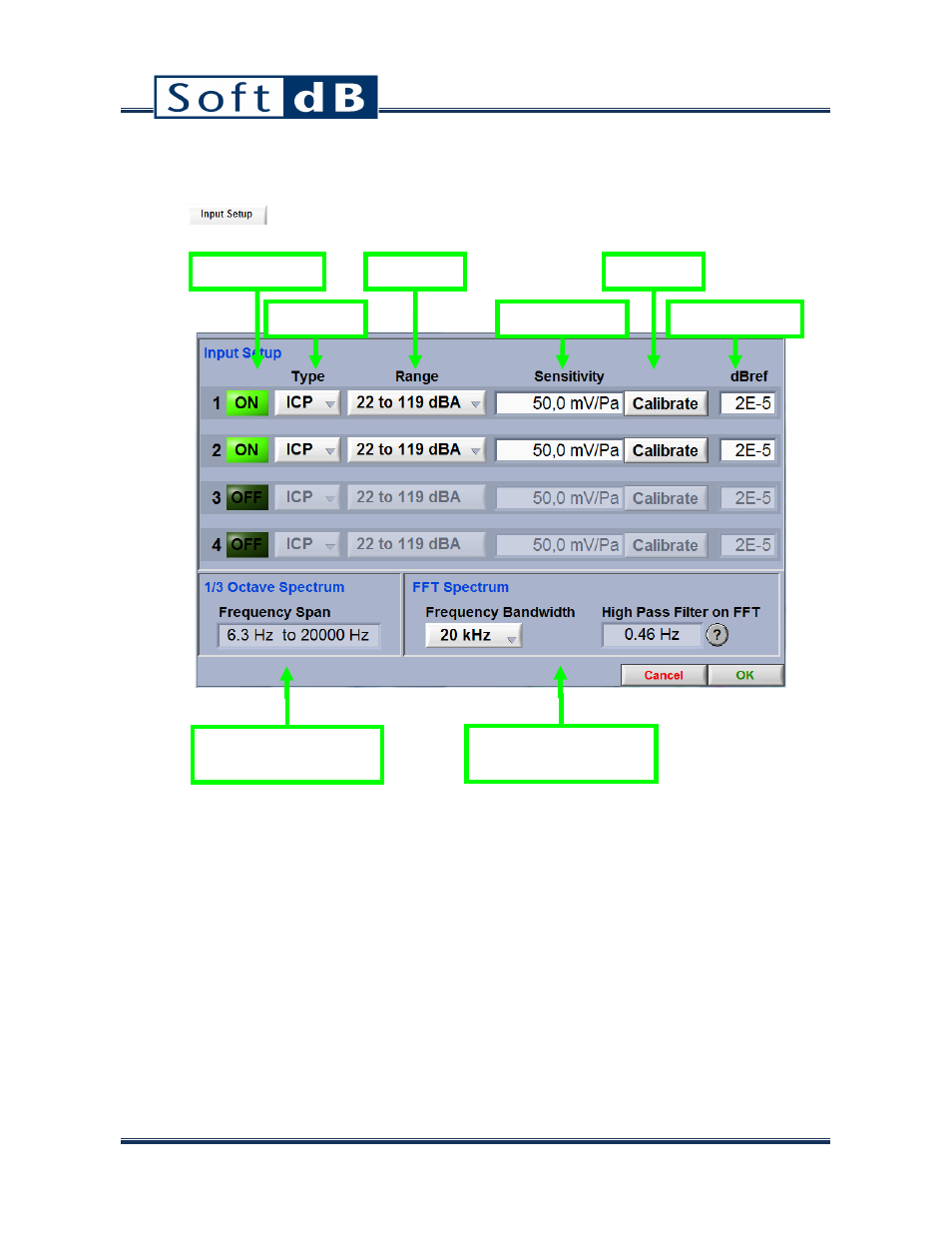

The Input Setup allows defining:
• Input Selection (see section 6.1, p. 18)
• Input Type (AC or ICP) (see section 6.2, p. 18)
• Input Dynamic Range (see section 6.3, p. 18)
• Input Sensitivity and Calibration (see section 6.4, p. 19)
• Input Reference Value (see section 6.5, p. 20)
• FFT Spectrum Frequency Span (6.6, p. 20)
Input Selection
Input Type
Input Range
Input Sensitivity
Calibration
Reference value
1/3 Octave Spectrum
Frequency Span
FFT Spectrum
Frequency Span
