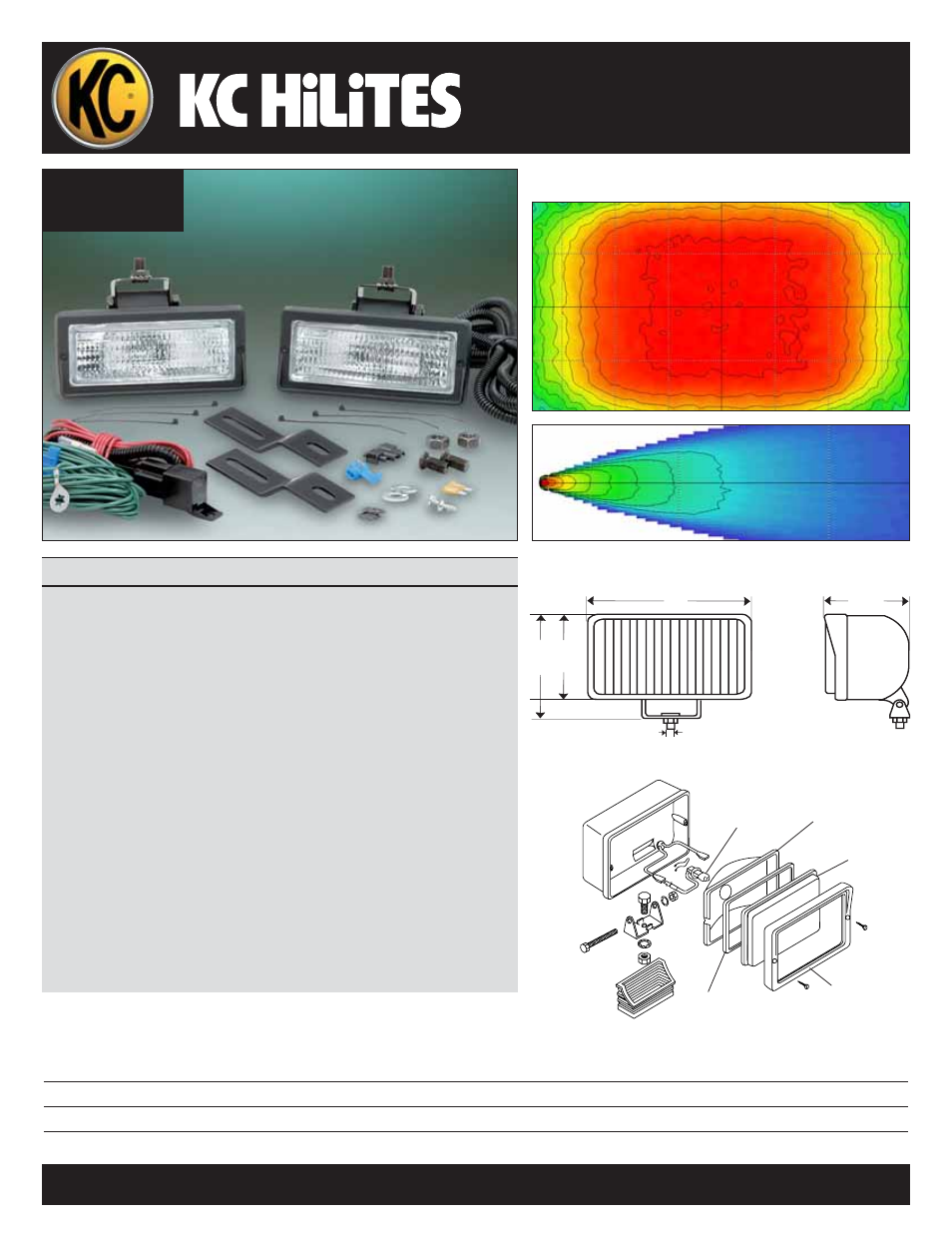

KC HiLiTES KC 26 Series Back-Up _ Flood Lights Data Sheet - Manual

10 mm stud
3-1/2" 2-3/4"
2-3/4" 6"
Photometrics:
Dimensions:
KC HiLiTES, Inc. • 2843 West Avenida de Luces, Williams, Arizona U.S.A. 86046 • Phone 928-635-2607 • E-mail [email protected] • Web kchilites.com
Pair Pack Single Light Beam
Part # Part # Beam Type/Color Finish Watts Candlepower Lens Reflector Bulb Bezel Gasket
26 Series Back-Up / Flood
517 1763 Back-Up / Flood - Clear Black Composite 55 n/a 4633 3520 2551 3522 3524
26 Series Back-Up / Flood - 2" x 6" Rectangular Housings
Back-Up / Flood - Black Composite
55 Watt Halogen
Pair Pack System: #517
Single: #1763
Features
• Compact 2" x 6" Black Composite Housing
• 55 Watt Halogen Bulb & Flood Lens Pattern
Illuminates a Larger Area than Standard O.E.
Back-Up Lights
• 2 Axis Mount Provides Simple & Accurate Aiming
• Wiring Harness Easily Connects to O.E. Back-Up
Light Circuit Allowing Lights to Come On
Automatically when Vehicle is Placed in Reverse
Back-Up Lights System Includes:
• Two 26 Series flood lights
• Relay wiring harness
(Add-on switch allows manual operation of lights, Part #6303)
• Two heavy duty mounting brackets
• Illustrated installation instructions
KC 26 Series
Back-Up / Flood Lights
Document #05100600.1 5/10
Bezel
Bulb
Gasket
Reflector
Lens
