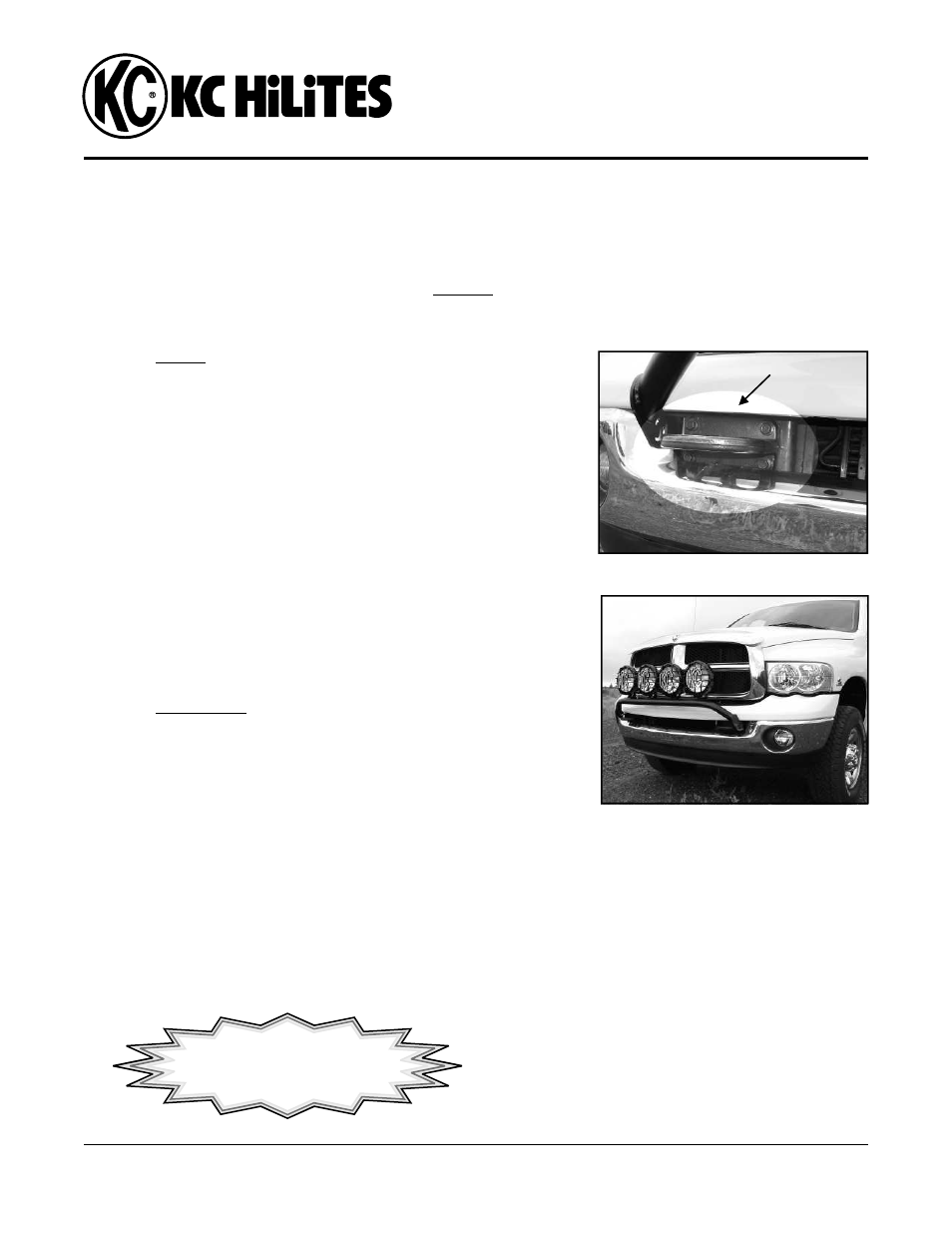

KC HiLiTES KC #7430 Front Light Bar 03-05 Dodge Ram 2500_3500 Installation - Manual

Thanks for choosing a KC HiLiTES product. We take pride in building the highest quality, best
engineered systems possible. Your satisfaction with our product is important, so if you have any
questions, please call our customer service line at 800-528-0950.
Note on Sport Model Trucks
TRUCKS FACTORY TOW HOOKS
TRUCKS FACTORY TOW HOOKS
- The light bar mount correctly on sport model trucks without
realigning the bumper.
will not
WITH
WITHOUT
1. Temporarily remove the factory tow hooks and set them aside
along with the bolts.
2. Position your KC light bar so the brackets will sandwich
between the tow hooks and the frame. ( - The light bar
must be rolled into place by inserting the lower end of the
brackets into the opening first and then rolling it up into place.)
3. Using the factory bolts, re-install the tow hooks allowing the
bolts to first go through the hooks, then the light bar and then the
frame brackets. DO NOT TIGHTEN.
4. Align the light bar so it is centered in the opening then tighten
all bolts.
1. Remove the plastic filler panels on each side of the opening in
the middle of the bumper. ( - Although tow hooks are not
needed for installation of this light bar, they can be purchased
at your local Dodge dealer if you wish to install them at this
time).
2. Find the four holes on each side that will line up with the light bar brackets.
3. Install the KC light bar using the hardware supplied with this package. ( - The light bar must be
rolled into place by inserting the lower end of the brackets into the opening first and then rolling it up
into place.) DO NOT TIGHTEN.
4. Align the light bar so it is centered in the opening then tighten all bolts.
NOTE
NOTE
NOTE
Installation Instructions for
Front Light Bar KC 7430
03-05 Dodge Ram 2500/3500
KC HiLiTES, Inc. 2843 W. Avenida de Luces, Williams, Arizona 86046-0155 * 800-528-0950 * www.kchilites.com KC3263L - rev 102204
IF YOU HAVE ANY PROBLEMS
OR QUESTIONS, PLEASE CALL
CUSTOMER SERVICE AT 800-528-0950 See details on our website at
www.kchilites.com
23 Year Warranty
Bumper
Bolts
Photo A
Tow hook shown
mounted over
light bar bracket
