Detach end links, Disconnect lower radiator supports, Undo the sway bar bushing bracket bolts – Hotchkis 22435R MX5 Rear Sport Sway Bar User Manual
Page 2
3F

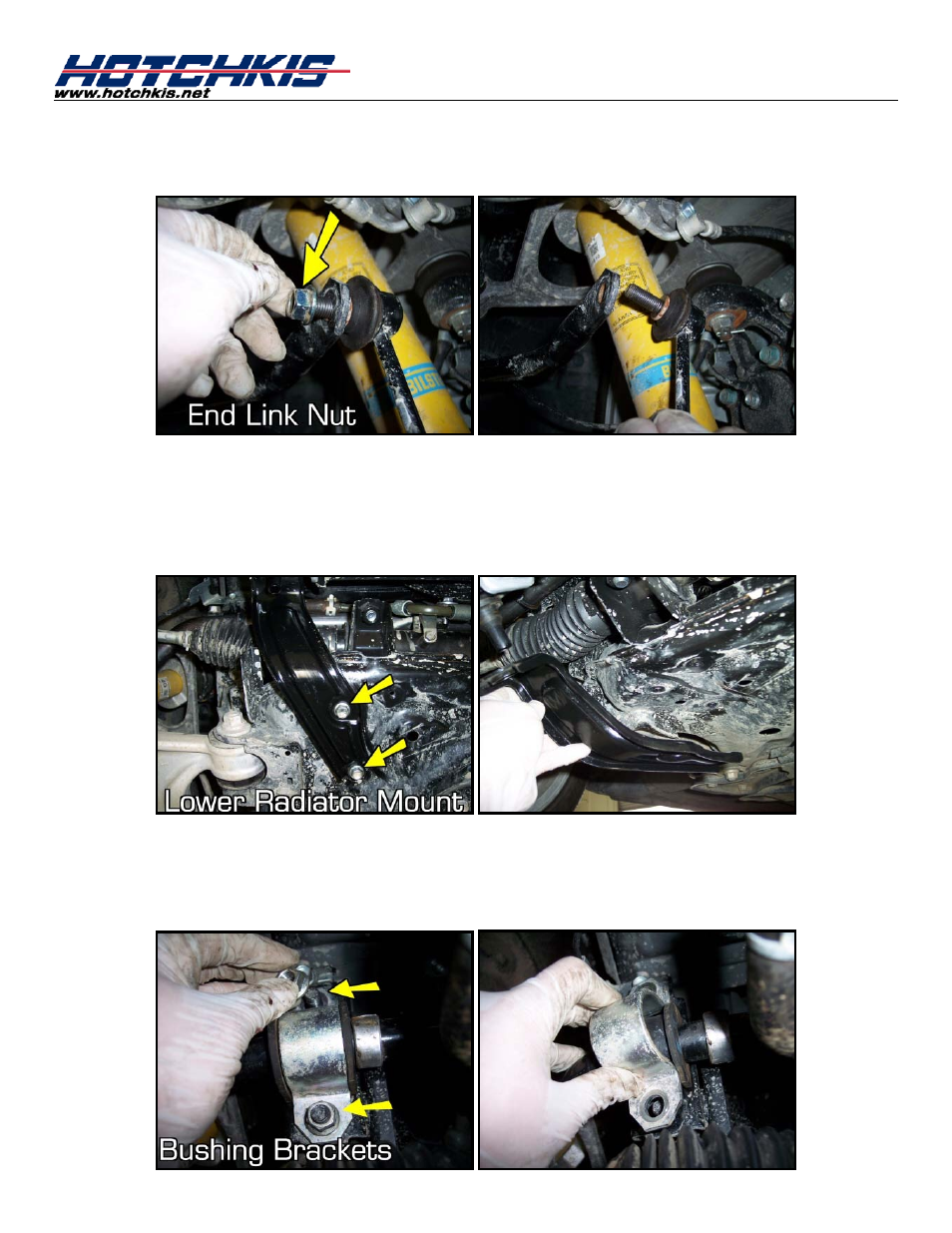

Detach End Links
Loosen and remove the lower end link nuts from both sides, and push links aside.
4F
Disconnect Lower Radiator Supports
There are 2 mounting supports that position the radiator. Loosen and remove the 2 bolts per
mount. The radiator is still supported by the upper mounts, so you need not worry about the
radiator falling down.
5F
Undo the Sway Bar Bushing Bracket Bolts
Loosen and remove the sway bar bushing bracket bolts. There are 2 per bracket. Once the
bolts are removed, the bar should be loose from the vehicle.
