High Lifter Lift Kit for Polaris RZR 570 (12-14) - Manual (Page 8)

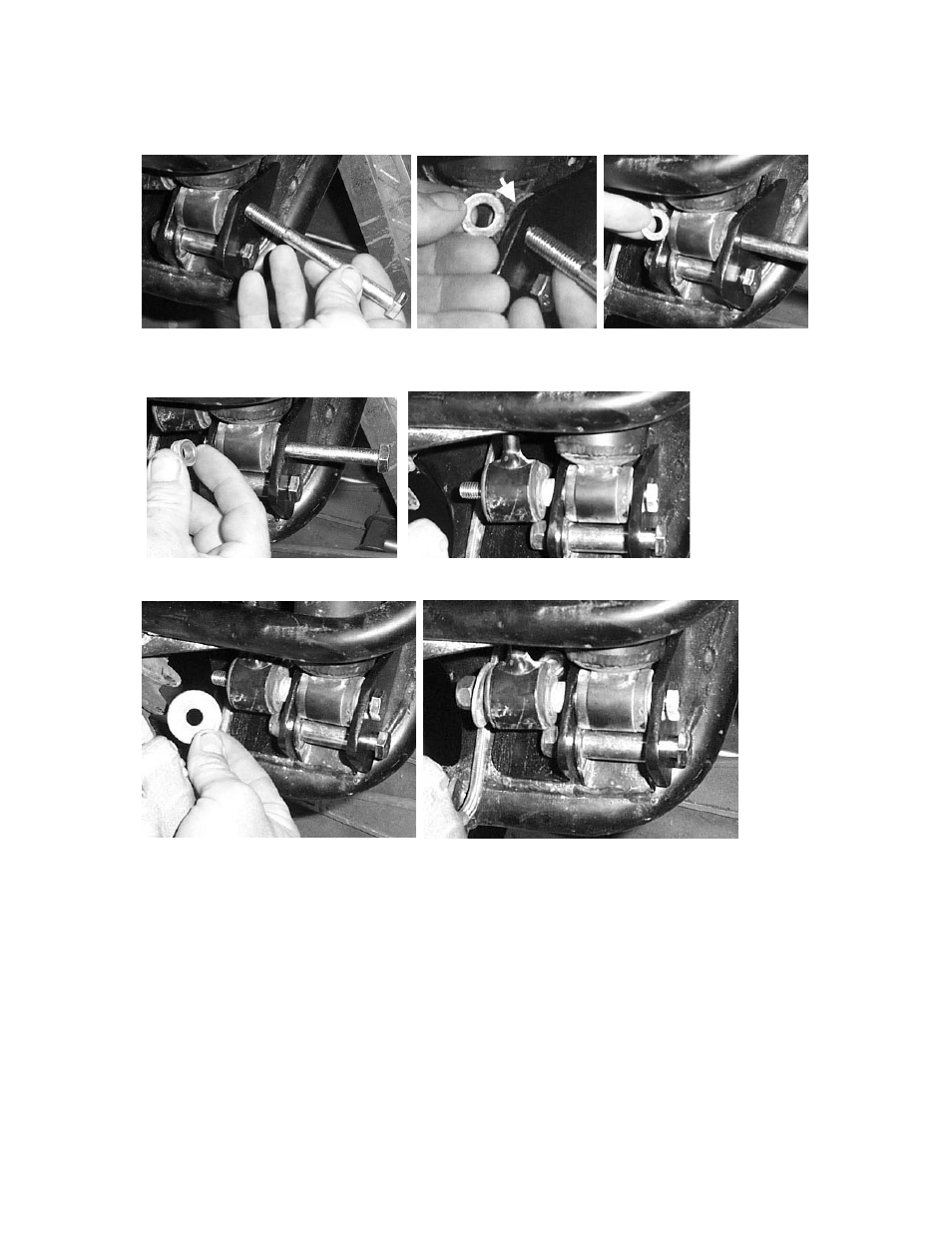

8) Using the 10x110mm bolt attach the bottom of the shock to the lift brackets and stabilizer
rod. Place 10mm flat washers on either side of the shock eyelet between the lift brackets.
9) Place a small spacer on the outside of the lift bracket then place stabilizer rod eyelet onto the
bolt.
10) Place the large factory washer next to the stabilizer rod eyelet and fasten tight with the 10mm
lock nut.
11) Reattach the stabilizer bar to the stabilizer rod.
12) Repeat the steps for the opposite side.
13) Tighten all bolts to manufacturer’s torque specifications. Install the wheels, torque wheel lug
nuts to manufacturer’s specifications, lower and remove jack. Check for clearance problems
or misalignment.
14) Re-torque lug nuts after the first ride.
