High Lifter Tie Rod__Rack End Upgrade Kit for Can-Am Maverick 1000 (2013) Pro Series User Manual
Page 4

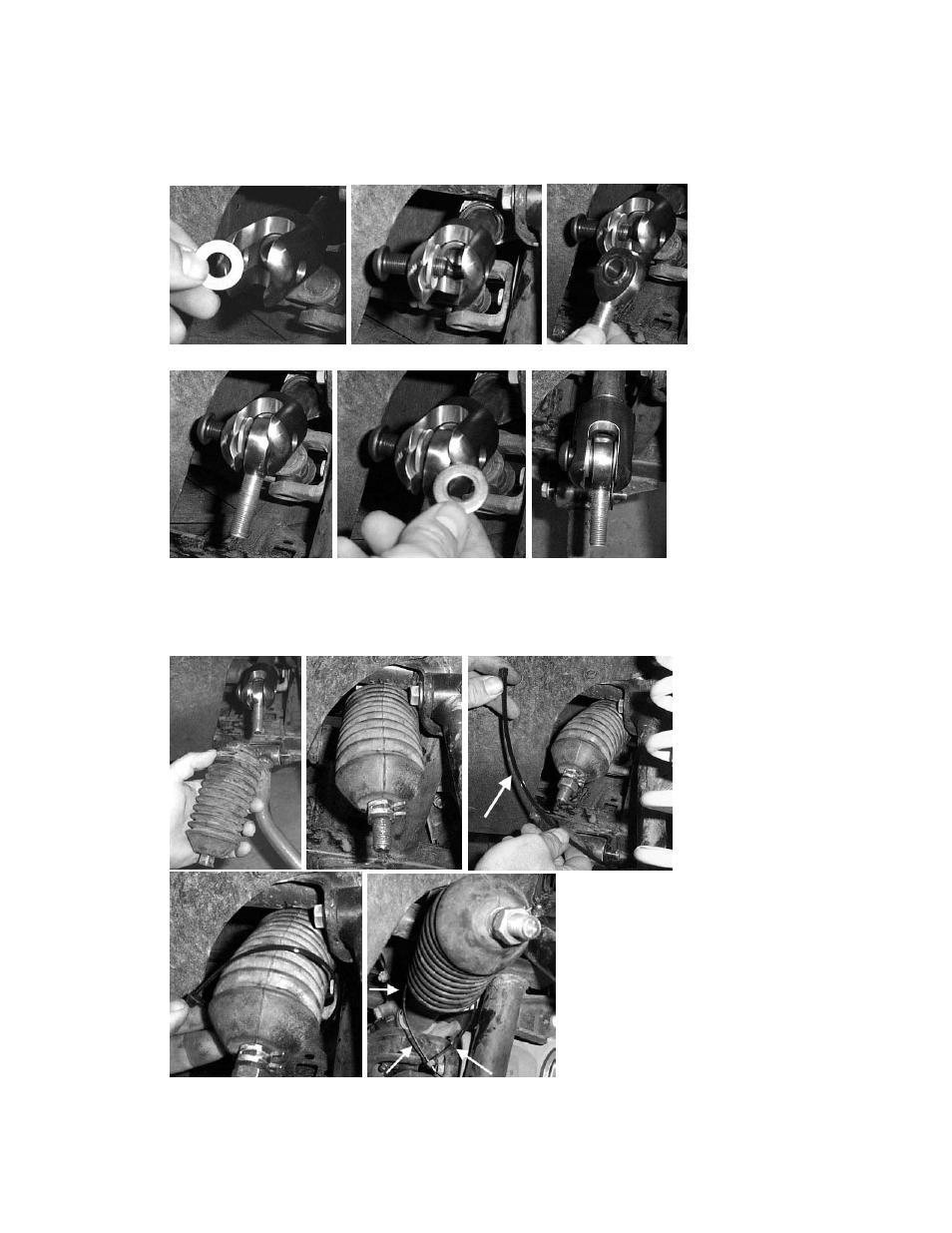

8. Connect the ½” Left Hand Heim Joint to the yoke using the ½”-20 x 1 ½” button head bolt and
two 12mm flat washers. Place the washers on either side of the heim joint on the inside of the
yoke.
9. Reattach the boot to the rack and pinion and fasten the small end using the factory clamp and
the zip tie provided for the larger end. This can be difficult to fasten due to the lack of space.
Loop the zip tie first then slide it over the boot then pull tight.
