Installation Instructions

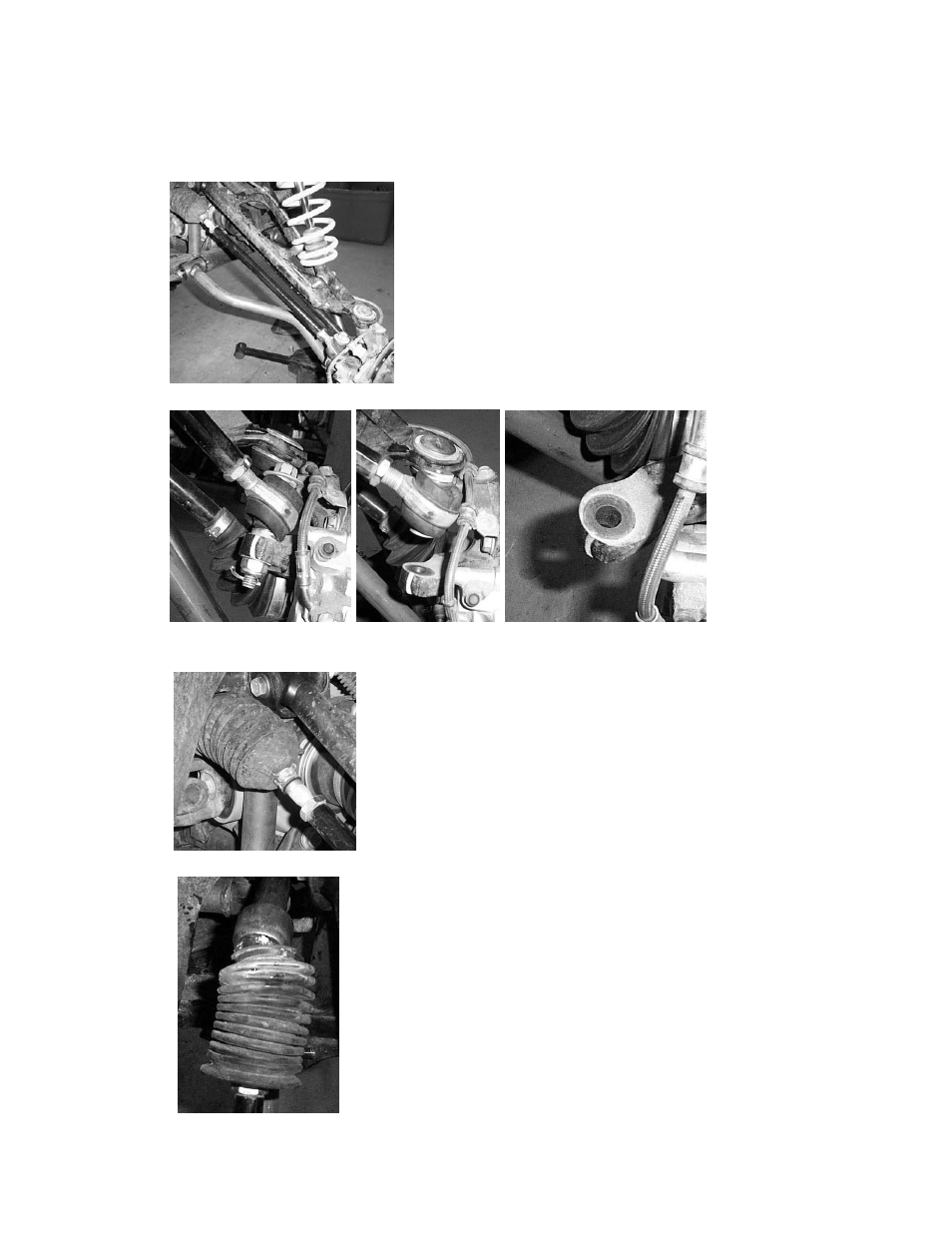

1. Remove the front tire nearest the rod you are replacing.
2. Disconnect the rod from the knuckle assembly.
3. Remove the metal band and cut the plastic boot band from the boot on the rack and pinion.
The plastic boot band to the inside is going to be difficult to cut and replace.
4. Once you have cut the bands pull the boot down to expose the end.
