Differential installation – High Lifter DETROIT LOCKER #2 User Manual
Page 9

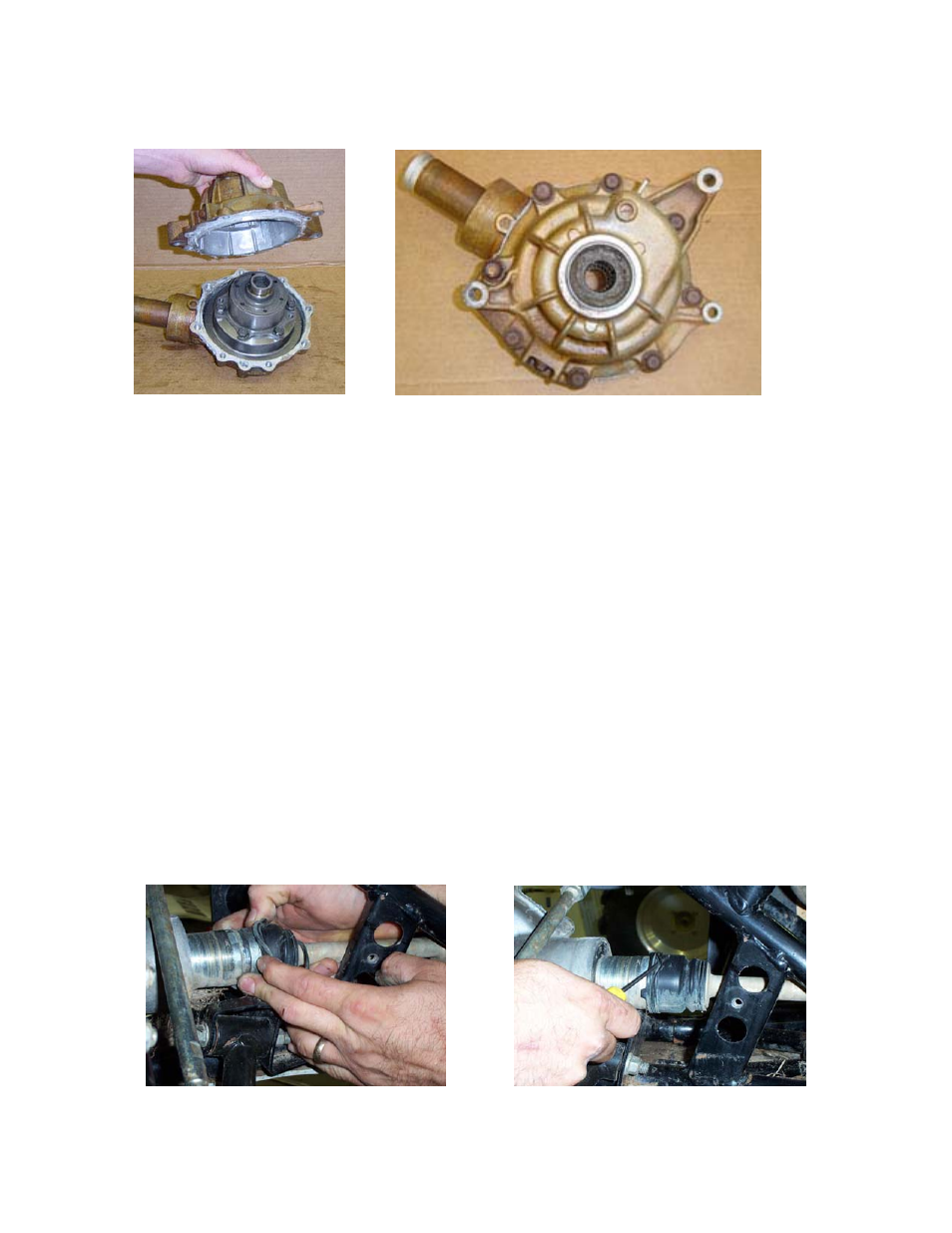

When sealing the differential case use a solventless silicone (It is used for motorcycle snowmobile, watercraft.)
Note: Make sure that the gear assembly rotates smoothly without binding.
Differential Installation
1. Place the differential back into the ATV.
2. Put the propeller shaft back into the differential. Make sure that proper care has been taken not to get dirt
and other debris on the shaft ends. Apply grease to end before inserting back into differential. Once it is
greased place into differential and set dust boots. Install the O-ring on the final shaft. Push the differential
forward.
9
