Shaft installation – High Lifter DETROIT LOCKER #2 User Manual
Page 11

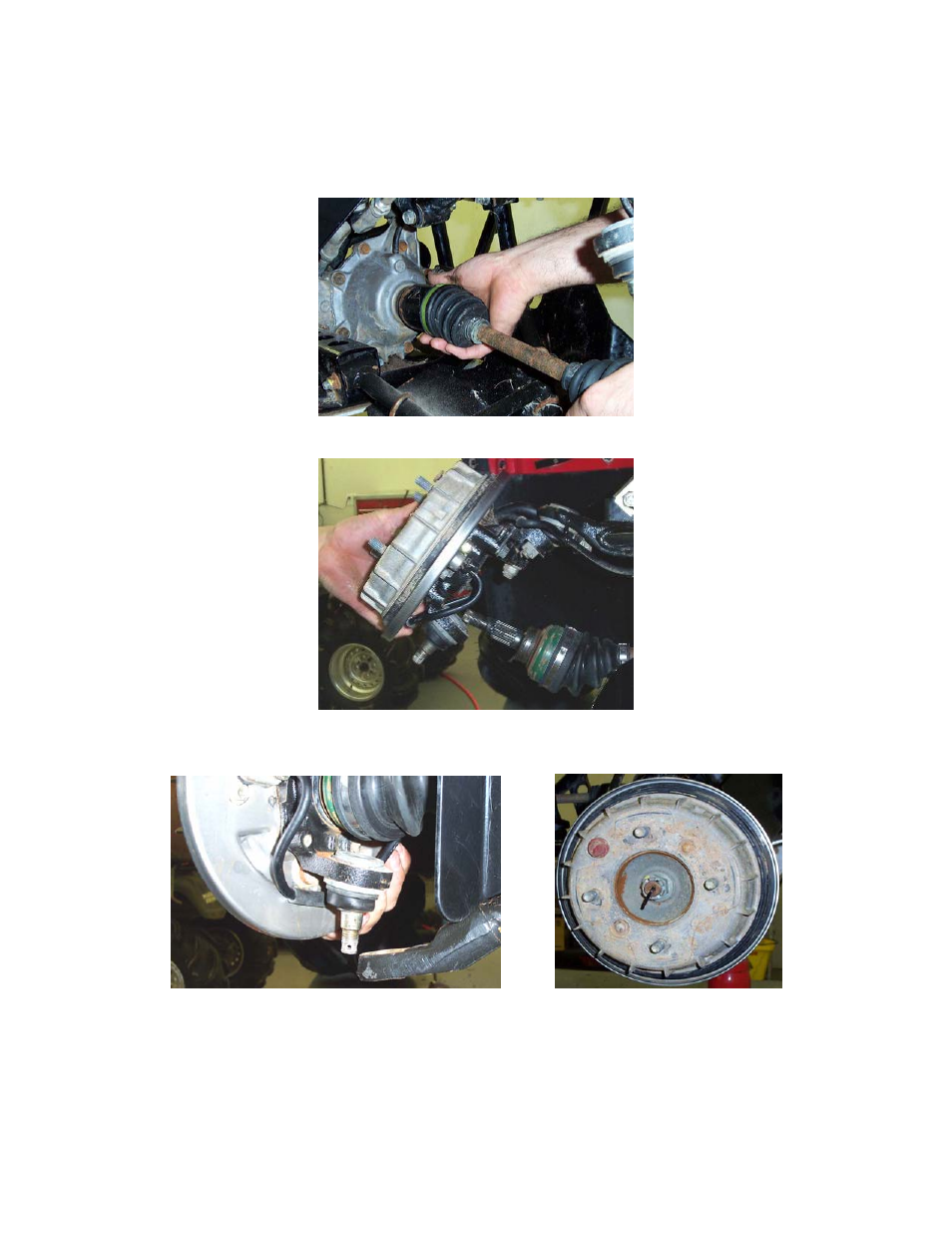

Shaft Installation
1. Make sure that the differential is secure and in place.
2. Slide side axle into differential. Rotate shaft slightly to align splines.
3. Once the shaft is in the differential, take the knuckle/brake panel assembly and attach it to the drive shaft.
4. Re-attach the lower A-arm and ball joint nut.
5. Place hub nut back on hub.
6. Re-attach the shock.
7. Put wheel back on ATV.
Follow steps 1 to 7 for other side.
