High Lifter DETROIT LOCKER #2 User Manual
Page 10

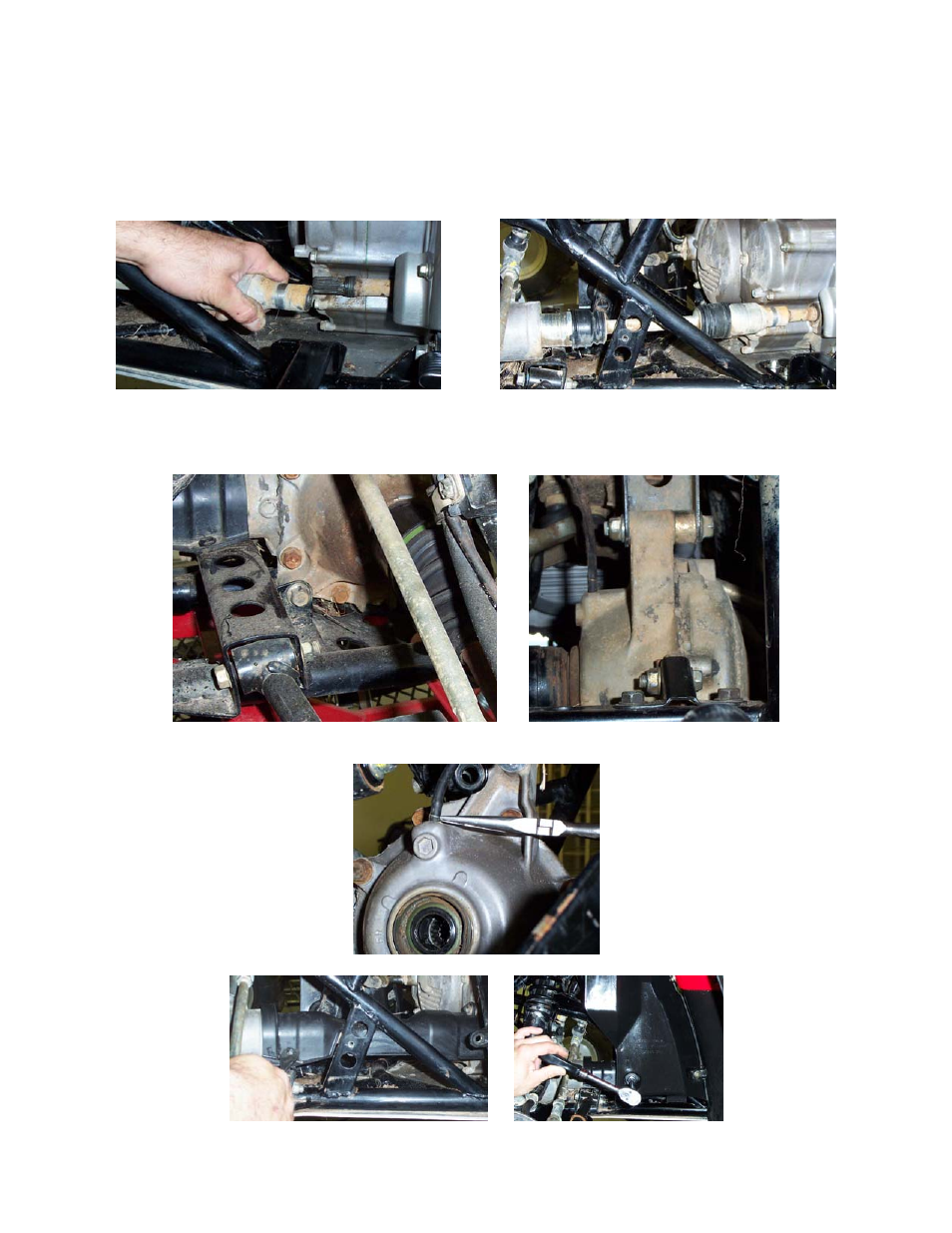

3. Install the spring and propeller shaft joint onto the shaft and set the dust boot securely. Connect the propeller
shaft to the engine while pulling back the propeller shaft joint. Rotate the shaft slightly if necessary to align the
splines.
4. Tighten the rear mounting bolt to the specified torque. (33lbf)
Install the upper mounting bolts with the upper mounting collar and nut. Torque to (33lbf.) Install the front
mounting bolt and nut and torque to (16lbf).
5. Re-attach the vent tube to the differential.
6. Install the propeller shaft cover and inner fender cover.
10
