High Lifter Tie Rod_Rack End Upgrade Kit for Polaris Ranger 500_700_800_900 Pro Series User Manual
Page 5

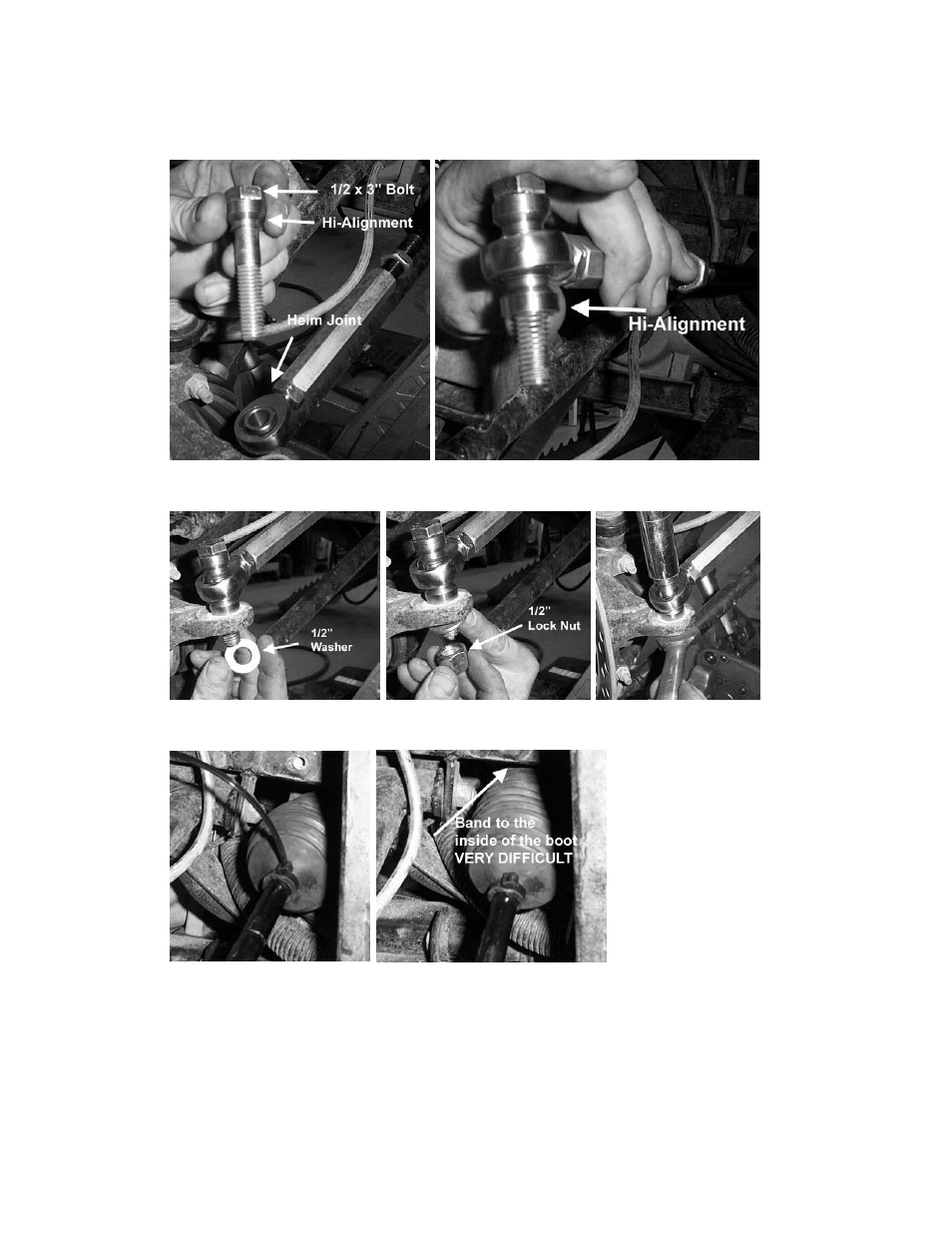

14. Take the ½ x 3” Hex Bolt and insert one of the Hi-Alignment spacers onto the bolt. Slide the bolt
into the heim joint, then place another Hi-Alignment spacer onto the bolt.
15. Insert the bolt into the knuckle assembly. Place the ½” flat washer and ½” lock nut onto the bolt
and tighten.
16. Using the black 11” zip ties provided fasten the boots tight. The boot end to the inside is going
to be difficult!
17. Reinstall the inner fender and put tire back on the UTV.
